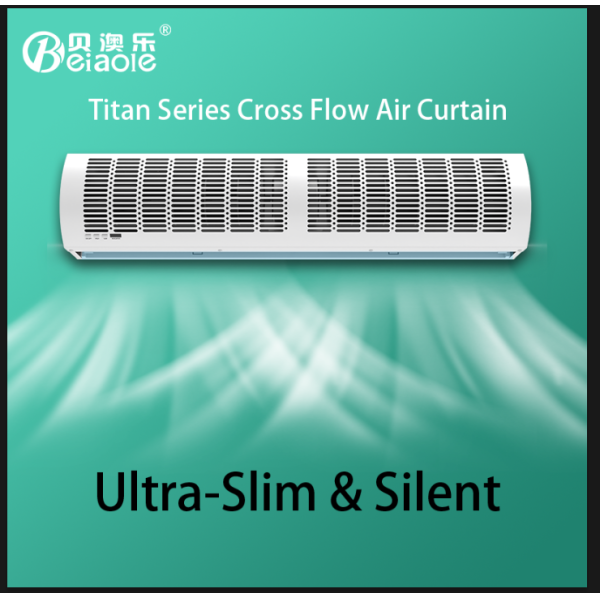

3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit
3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit
Specifications
MOQ :
1 unit
Payment Terms :
T/T,L/C,Western Union
Body size :
1800*145*185 mm
Voltage :
220V
Power :
185W
Weight :
13kg
Brand Name :
Beiaole
Delivery Time :
7 to 15days upon the receipt of full payment
Packaging Details :
Shipping Carton With Sponge Inside
Airflow :
2600 m³/h
Model Number :
FM-125-18
Supply Ability :
60000 pcs/month
Certification :
CCC ISO CE SAA TUV SGS
Material :
Galvanized Sheet Shell Metal Casing
Price :
20USD~70 USD
Speed :
9-11m/s
Noise :
60dB
Place of Origin :
Guangdong, China
Frequency :
50Hz
Description

Description of the product
Type Air handling Unit Mounting Type

Ceiling Mount
Fan Motor Type

AC

 Motor Type Cross Flow Turbine

Key Selling Points

Easy to operate,High Safety,Long Service Life

 Warranty 1 Year for the whole set 5 years for motor
Machinery Test Reports Provided

Video outgoing Insepction

Provided

Core Components

 Motor Place of Origin Guangdong China

Weight(kg)

 7.5 Brand name Beiaole

Model No.

 FM-125-10 Dimension(L*W*H) 1000*145*185mm

Name

 Titan Series Materials Galvanized Sheet Sheell Metal Casing

Air Speed

 9-11 Mounting Type Ceiling Mounted

Installation Height

 2.5-3 meters Package Shipping Carton


3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit
3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit

Understanding Noise Specs: What Those dB Numbers Really Mean

When you see noise ratings like 50 dB or 60 dB, what do those numbers actually mean for your business? Let's break it down so you can choose with confidence.

All Hercules air doors are tested in a controlled noise chamber with inlet and outlet ducts attached. The listed values have a tolerance range of +3 dB to -7 dB, meaning actual performance may be even quieter than specified.

50–53 dB (FM-125-06, FM-125-18s, FM-125-20s):
Quieter than normal conversation (60 dB). Comparable to a quiet office or residential area at night. Perfect for hotels, libraries, upscale restaurants, and any environment where silence matters.

57–58 dB (FM-125-09, FM-125-10, FM-125-12):
Similar to background music or a quiet conversation. Completely acceptable for supermarkets, retail stores, and casual dining restaurants.

59–61 dB (FM-125-15, FM-125-18, FM-125-20):
Comparable to normal conversation or a running dishwasher. Still comfortable for most commercial environments, especially high-traffic areas where ambient noise is already present.

The "S" models (FM-125-18s, FM-125-20s) are particularly noteworthy — they move significantly more air (3480–3980 m³/h) while producing only 53 dB of noise. That's exceptional performance for such quiet operation.

Don't let noise concerns stop you from getting the protection you need. Hercules gives you powerful airflow in near silence.


3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit
3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit




3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit
3m Height Door Air Curtain HVAC Cross Flow Ceiling Mounted Unit
FAQ
Where's your factory located?
Foshan Guangdong
What payment methods do you take? T/T L/C
Can you tell me a bit about your company? We have been specializing in the field of Heating, Ventilation and Air Conditioning, Refrigeration for more than 20 years .We produce Heating, Ventilation and Air Conditioning, Refrigeration for the world markets .
Do you have a product catalog I can look at? Yes ,English and Chinese
Got any certifications I can see? CCC Patents Certificates ,Trade Mark Certificates.
What are these products usually used for? Ventilation ,Energy Saving ,Fresh air system
Attending any trade shows soon? Brazil Dubai Italy and so on ,Canton Fair and HVACR Trade Shows.
What are your price terms (e.g., FOB, CIF)? CIF FOB EXW
Why are your prices higher than other trading companies? No ,Our products are with the best prices ,surely more competitive than other suppliers.
What's the minimum deposit you'll accept? T/T 30% deposit ,70% balance before payment.
Do you have fast shipping options? Yes ,Air Freight.
What's the best way to ship to my location, cost-wise? Only sea freght or Air freight.
What's selling like crazy right now? Air curtains titan series and world series
How do I actually place an order? Sign the contract and PI through international banks.
What kind of quality control do you have in place? ISO9001.
Standard production time? 15~20 days upon the receipt of full payment.
What's the warranty period? 1 year for the machine body ,3 years for the motors.
Can I get a longer warranty, maybe 2 years instead of 1? yes ,normally 1 year ,but should be higher the prices
