Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Specifications
Feature :
Precise control
Brand Name :
DONJOY
Certification :
CE,3A,FDA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,LC,Credit Card
Packaging Details :
carton box
Size :
DN40 - DN100 or 1.5" to 4"
Air supply connection :
R1/8''(BSP)
Operation :
Pneumatic with Intelligent Positioner
Compressed air pressure :
5.5bar-7bar
Gasket :
EPDM / HNBR / VITON
Product Name :
mixproof tank bottom valve
Materail :
SS316L
Description
Donjoy Pneumatic Mixproof Tank Bottom Valve
Technical Specifications
Size DN40-DN100, 1.5" - 4"
Working Temperature 14°F to 266°F (-10 to 130°C), 284°F (140°C) for short time sterilization
Max. Working Pressure 145psi (10bar)
Min. Working Pressure Absolute vacuum
Compressed Air Pressure 5.5 bar to 7 bar
Parts in Contact with Medium AISI 316L
Other Stainless Steel Parts AISI 304
Internal Surface Finish Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best
Seat Material EPDM, FDA177.2600 (Default) FPM (Viton), FDA177.2600 (Option)
Design Features
  • Default with normally closed pneumatic actuator
  • Compact and robust design, forged spherical bodies
  • Pressure balanced design

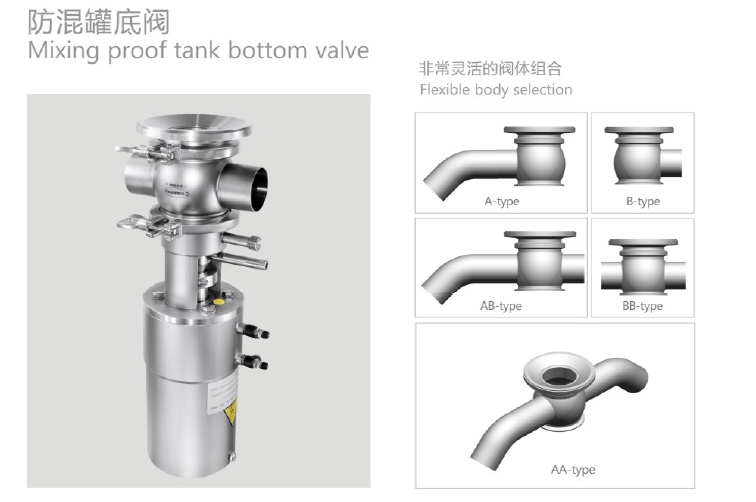

  • One-piece Body & Clamped Body options available
  • Wide selection of different body combinations
  • Easy disassembly by releasing the clamp
  • Cleaning/Sterilization Parts available as options
  • 100% hydraulic tested / 100% inspected
Operations
Actuators: Stainless steel actuator
Units for intelligent control and indication:
  • C-top control
  • IL-top control (Positioner)
  • Electric connection
  • AS-I bus connection
Connection Options
Clamped, welded, threaded, flanged, etc.
Packaging Details
Bubble pack for each valve. Outside packing is by carton or plywood case.
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control

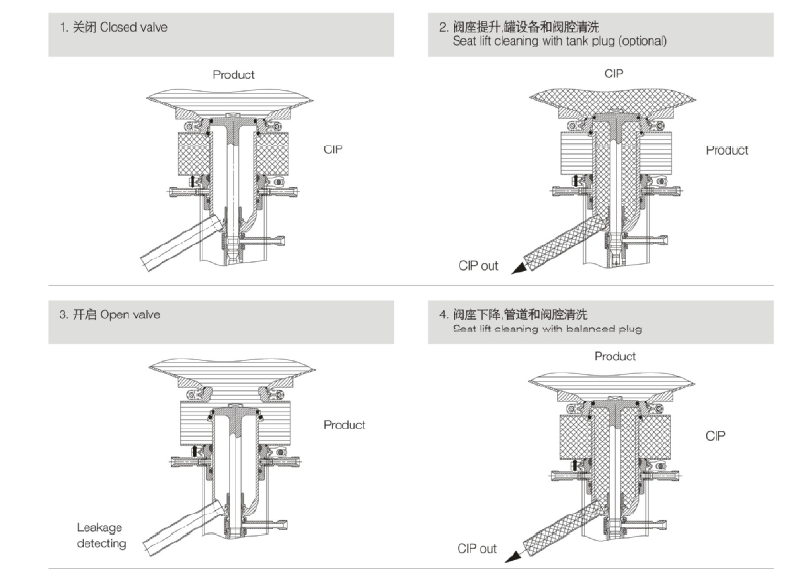

Operating Principles
Lift type mixing proof valve is remotely operated by compressed air. It is normally closed before running.
The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber to atmosphere under normal working status. When occasional failure causes leakage happen, medium will flow into the chamber and be discharged at the outlet port.

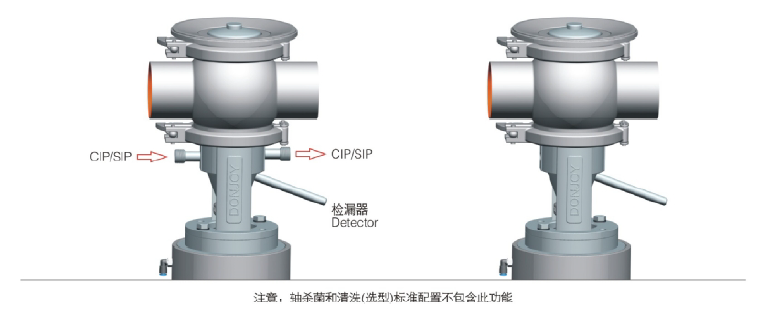

The leakage chamber is closed when the valve is operating, the medium can flow through one pipeline to another. This valve can be clean in place. Many options of CIP and SIP combination are available to users.
Clean system can clean the upper, lower stem and leakage chamber, which ensure the valve to be high hygienic. Effectively cleaning system makes the fluid that special for (CIP) clean in place directly wash all the inside valve body, it takes shorter time than common cleaning system.
Another beneficial of the high cleaning system is that the lift type mixing proof valve can be applied to aseptic processing. If user's steam into CIP pipeline, the system will constitute a shield that can isolate air.
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control
Pneumatic Mixproof Tank Bottom Valve with Intelligent Positioner EPDM Gasket for Precise Control

Tag: mixing proof valves, Mixproof valves, Double seal valves
