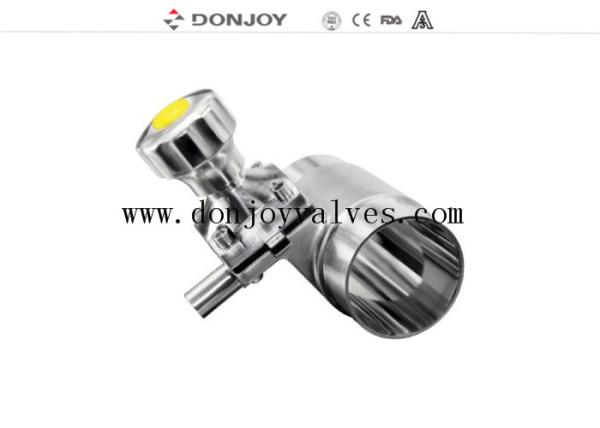

Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve
Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve
Specifications
Brand Name :
Donjoy
Model Number :
NO.T-H
Certification :
CE,3A,FDA
Place of Origin :
China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Product Name :
Pneumatic radial diaphramg valve with cylindrical port
Conveying port :
1 or 2
Logo :
Donjoy or customized
Feature :
Regulating fluid
Position of actuator :
Be downward
Max pressure :
6bar
Description

Donjoy 3 Way T type Biopharmaceutical diaphragm valve for Phamacy industry

Specifications

Product Name:

Pneumatic Radial Diaphragm Valve for phamacy hygienic process

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

6 Bar

Max.Working Temperature:

120 degree C

Availably size:

3/4''-2.5'', DN20-DN65

Availably connection:

Clamp/weld/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual,Pneumatic

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Logo of product:

With "DONJOY" or customized

Combination of valve and actuator:

Flexible combination on valve body


Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve
Certificate
3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600

Diaphragm valve Gasket
1. EPDM/ Silicone
2.EPDM+PTFE Ahersive
3.EPDM/EPDM Seperate
Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve

Product drawing
Valve Body
Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve
Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve
Surface Ra
Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve
Body :
Casting/ Forging
Donjoy T Type 3 Way Biopharmaceutical Sanitary Diaphragm Valve

Packaging
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery
Usually within 20 days after receiving T/T down payment.
