SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
Specifications
Brand Name :
DONJOY
Model Number :
NO.VSJ303Y1-DIN
Certification :
CE/FDA/ISO/3A
Place of Origin :
CHINA
MOQ :
Negotiation
Payment Terms :
T/T,L/C, Credit Card
Packaging Details :
Carton, Wooden Case
Brand :
DONJOY
SIZE :
DN65 - DN150, 3" - 6"
Stanadard :
DIN / 3A / SMS / ISO
Connection :
Welded, Clamped,Thread
Internal polishing :
Mirror polishing etc.
Clamp :
Optional
Lighter :
Selectable
Description

Pharmaceutical industry DIN100 SS316L Clamp flanged sight glass

Brief Instruction

Sight Glass

Size:DN80-DN200,3"-8"

Type: DC24V,NO.5 Battery

Gasket: EPDM,PTFE

Working Pressure:10Bar

Specification

Product Name:

Pharmaceutical industry DIN100 SS316L Clamp flanged sight glass

Valve Body Material:

SS304/SS316L/1.4301/1.4404

O ring:

EPDM FPM

Material connecting with other part:

1.4301(304); 1.4404(316L)

Sight glass:

tempered glass

Max.temperature:

120 degree

Battery:

use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

Availably connection:

Clamp, Thread, weld, Flange

Availably standard:

DIN, SMS, 3A, ISO

Certification:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Suitable industry
sight-glass is comprised of stainless steel frame and glass.

It is used wiewing the biologic reactor, blender in laboratory filter, processing container, pipeline and other closed container, especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.


Advantaged design
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position
Call with light and wipper.

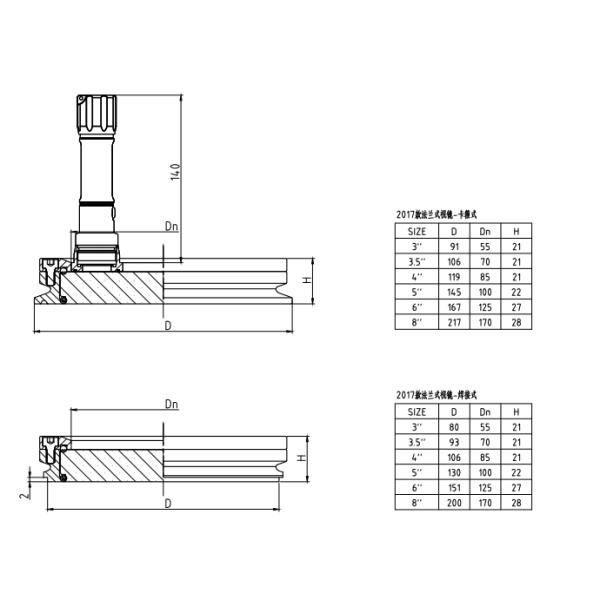

Drawing

SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical

Various Selection of Union Sighlt glass

SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
