316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy
316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy
316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy
316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy
Specifications
Brand Name :
Donjoy
Model Number :
NO.Vgj210s1
Certification :
CE,3A,FDA
Place of Origin :
China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Product Name :
Tank bottom diaphragm valve
Materials :
SS316L / 1.4404
Size :
3/4"-2.5"
Connection :
Threaded ( BSP / BSPT / NPT ),clamp,weld
Gasket :
Sillcone / EPDM
Manual :
SS hand wheel , plastic hand wheel
Pneumatic :
SS actuator , plastic actuator
Description

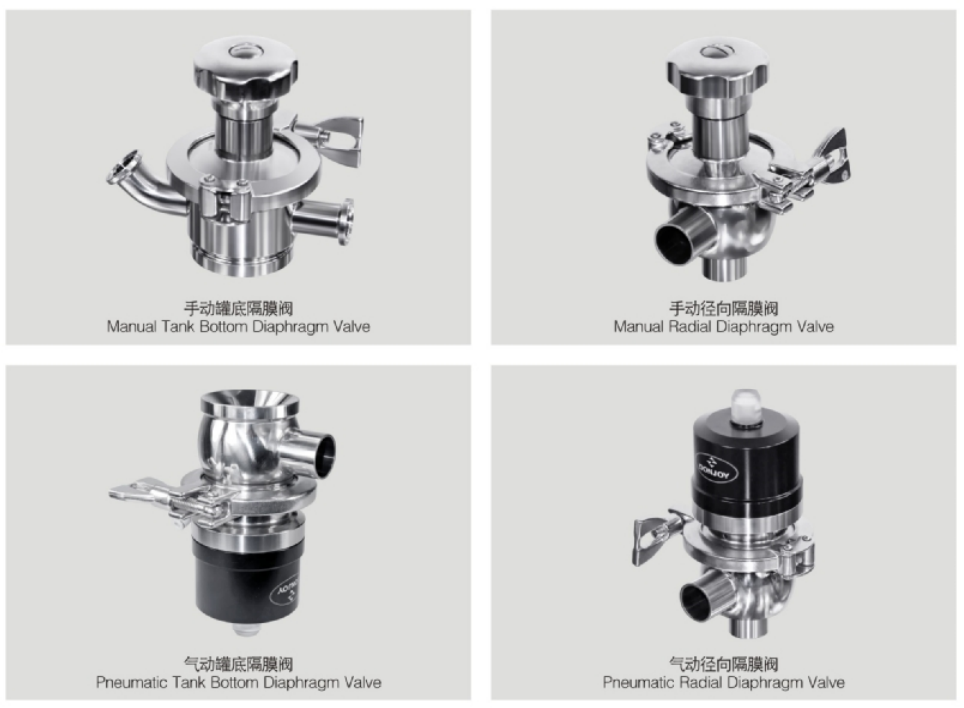

SS316L stainless steel hygienic tank bottom diaphragm valve

Radial diaphragm valve are mainly manual and pneumatic operations, Inside body finished Ra≤ 0.5μm, in order to meet the requirement of biophamaceutical industry.


Specifications

Product Name:

Tank bottom diaphragm valve

Valve Body Material:

SS316L

Seal Material:

EPDM

Max Working Pressure:

6Bar

Max.Working Temperature:

-10 to 120 degree

Available size:

3/4"-2.5",DN20-DN65

Available connection:

Clamp / welding / thread / special connection

Available standard:

3A / BPE / DIN / ISO / IDF

Operation

 Manual, pneumatic

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc


●Mainly used in pharmaceutical, biotechnology, health care, cosmetics and food industry etc.
●In the pharmaceutical industry, the valve can be used as process control valves, dosing valves, sampling valves and sterile drain valve, etc.
●In the food industry, the valve is often used as the guiding device, such as sampling valve, dosing valve (such as adding CO2/Nitrogen to beer, add seasoning to drink). Radial diaphragm valves, mainly manual and pneumatic valve body, internal polished finish Ra is less than or equal to 0.5um, to meet the requirements of bio pharmaceutical industry.
●Size:3/4"-2.5",DN20-DN65
●Working temperature:-10℃-120℃(EPDM/Silcon)
●Max.Pressure:6bar
●operation:Manual / pneumatic interchangeable
●Operating Pressure:5bar-6bar
●Outlet connection: Clamp, weld,Special interface

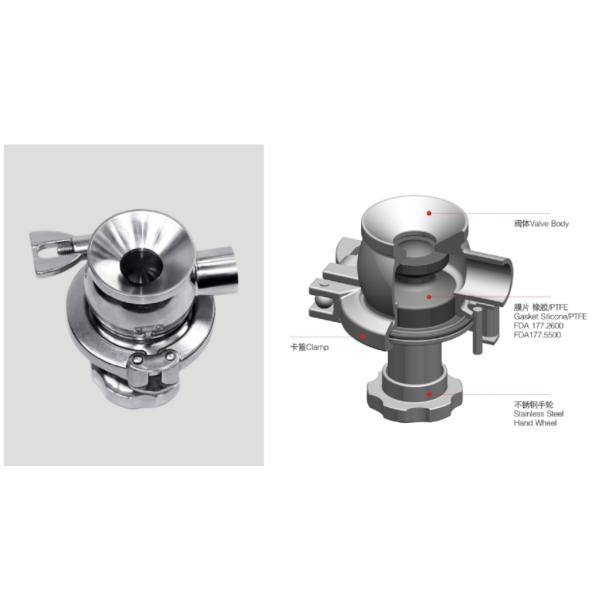

●New diaphragm design
●Maintenance is simple, safe, easy to operate
●Self emptying function
●Dead angle minimization
●Excellent value KV
●CIP/SIP Sterilizing and cleaning

316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy

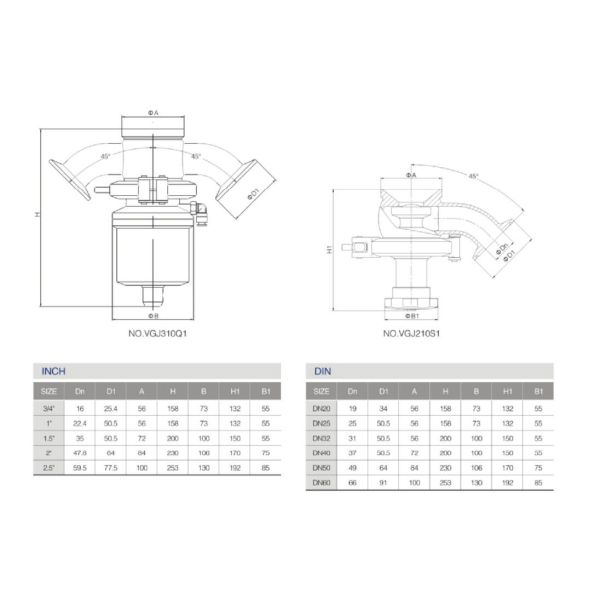

Product drawing
316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy

Relation Products
316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy
316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy

Tags : Diaphragm valve, Saniary valves, Donjoy Valves , tank bottom valve

Product tags

sanitary sample valve

,

intravenous drip set

,

sanitary diaphragm valve
