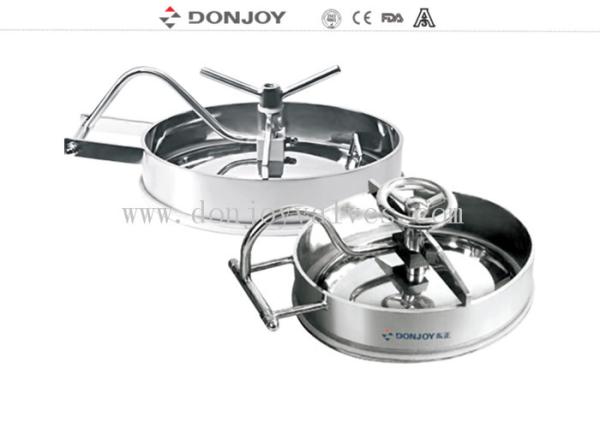

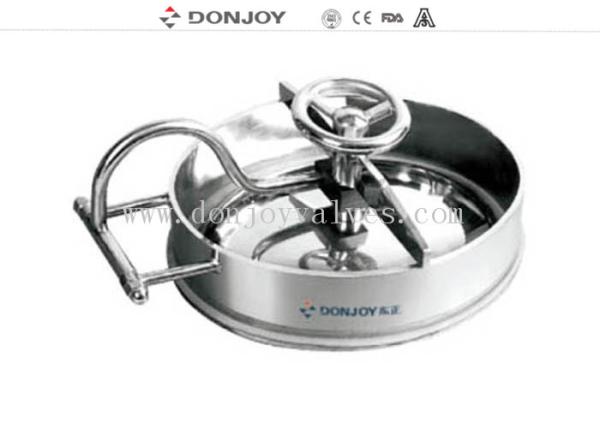

SS316L Tank Manhole Cover
SS316L Tank Manhole Cover
SS316L Tank Manhole Cover
SS316L Tank Manhole Cover
Specifications
Brand Name :
DONJOY
Model Number :
NO.ERK311
Certification :
CE/FDA/ISO/3A
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,L/C, Credit Card
Supply Ability :
100pcs/Days
Delivery Time :
10-30 working Days
Packaging Details :
Carton, Wooden Case
Brand :
DONJOY
Handle :
Stainless Steel Handle
Stanadard :
DIN,3A,SMS,ISO
Connection :
Weled, Flange
Polished :
Mirror, Matt
Materials :
SS304/SS316L,SUS304/SUS316L
Size :
435*335mm,530*430mm,535*435mm,635*525mm
Height :
75-80mm,80-90mm,90-100mm,100-120mm,130-160mm
Description

Hygienic Elliptical Tank manway Stainless Steel SS304 SS316L 535mm*435mm

Drawing
SS316L Tank Manhole Cover
SS316L Tank Manhole Cover

SizeHL1L2T
435*335754353358
530*43010053043010
635*52516063552510

Unit:mm

Sizetolerance range
Φ200-Φ350±1.2mm
Φ400-Φ600±2mm


Tag:
Pressure manhole cover,
Milk tank cover.
Sanitary stainless steel tank vessel manhole,
Tank manway


Quick Detail
Manhole Cover,Manway
Size:435*335mm,530*430mm,535*435mm,635*525mm
Type: pressure
Gasket: EPDM,NBR,SILICONE,
HEIGHT:75-80mm,80-90mm,90-100mm,100-120mm,130-160mm
Working Pressure:0.5-3Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Handle: Stainless Steel

Specification

Product Name:

Elliptical manhole cover

Material:

AISI304, AISI316L

Size:

435*335mm,530*430mm,535*435mm,635*525mm

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Flange

Thickness

Stanadard or customized

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers


Application
Manhole cover with pressure always used for pressure vessel in the field of food,
beverage, chemical etc. And installation on the side or top of tank.
