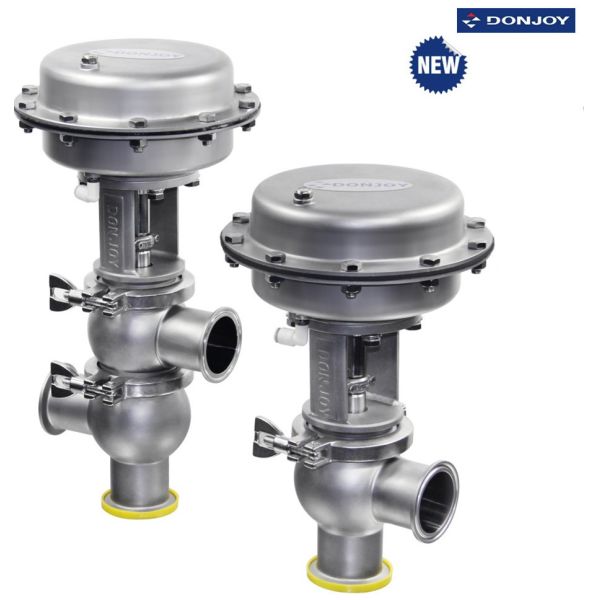

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150
Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150
Specifications
Brand Name :
DONJOY
Certification :
CE,3A,FDA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, LC, Credit Card
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
according to order
Packaging Details :
carton box
Material :
SS304 / 316
Media :
water etc.
Operate Mode :
Pneumatic
Size :
DN25 - DN150
Pressure :
Medium Pressure
Valve seat :
Single seat
Product name :
Reversing valve
Ra :
Could reach ≤0.5μm
Description

Food Grade SS316 Sanitary Mainifold Mixproof Valve


Quick detail
Aseptic Reversing Seat Valve
Aseptic Regulating Seat Valve
Aseptic Divert Seat Valve

Specification

Product Name:

sanitary aseptic reversing valve with pneumatic actuator for

conveying fluid

Valve Body Material:

Stainless steel

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10 bar

Max.Working Temperature:

130°C

Available size:

DN25 - DN150 or 1" - 6"

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Pneumatic operation

Structure

Aseptic type

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy, food, beverage, pharmacy, cosmetic etc

Body seat

single seat

Body type

20type,30type,11type,12type,21type,22type,31type,32type

Feature of seal:

Elastic compression, friction - free

Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor


Product drawings

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150

Tag : Donjoy valve, Donjoy Reversing Valve, Single seat Valve
