Specifications
Type :
JZ-1
Connection :
1.5" Thread
Medium :
beer / beverage/comestic etc.
Operation :
Mechanical ABB Motor
Materials :
SS304 SS316L
Brand Name :
DONJOY
Model Number :
JZ
Certification :
CE,3A,FDA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,LC,Credit Card
Packaging Details :
carton box
Mechanical :
Single Seal
Description
Pharmaceutical Pump Single Stage Homogeneous Solution
Product Overview

The JZ1 Series is an emulsifying homogenizing pump designed for continuous production, composed of stator and rotor components. The processed media undergoes operation through 6-10 layers of stators and rotors, enabling dispersion, cutting, refining, smashing, emulsifying, and mixing processes step by step. This advanced design improves production efficiency and enhances media quality compared to traditional manufacturing methods.

Available Options
  • Mechanical Seal: SIC/SICE/EPDM, TC/TC, EPDM
  • Gasket: Viton/NBR
  • Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
  • Motor: 2900, 1450, 3600 min/1, 50HZ, 60HZ
  • Surface Finishing: Sandblast or Mirror Polish
Technical Specifications
Product Name Single-Stage Homogeneous Softening High Purity Pumps for Pharmaceutical
Pump Body Material SS304 / SS316L / 1.4301 / 1.4404
Seal Material EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow 40 m³/h
Max. Speed 3600 min⁻¹
Max. Head 70H (m)
Max. Working Pressure 7bar / 99 PSI
Max. Working Temperature 120 °C
Mechanical Seal SIC/Sic/EPDM (Standard), C/SIC, TC/TC
Sealing Type Flushed double mechanical seal / single mechanical seal (standard)
Motor Power 1.1kw, 1.5kw, 2.2kw
Voltage 440V, 220V, 380V
Motor ABB / Domestic
Motor Frequency 50HZ, 60HZ, (0-100 HZ)
Surface Treatment Inner polished and Sandblast outside
Application Structure JZ
Available Connection Tri-Clamp, Thread, Flange
Available Standard DIN, SMS, 3A, RJT, ISO/IDF
Operation Electric
Low Discharge Option Low discharge/diaphragm valve/ball valve/butterfly valve
Certificate 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application Scope Dairy, food, beverage, pharmacy, cosmetic, etc.
Packaging Details Plywood case or customized per customer request
Delivery Details Usually within 20 days after receiving T/T down payment
Technical Advantages

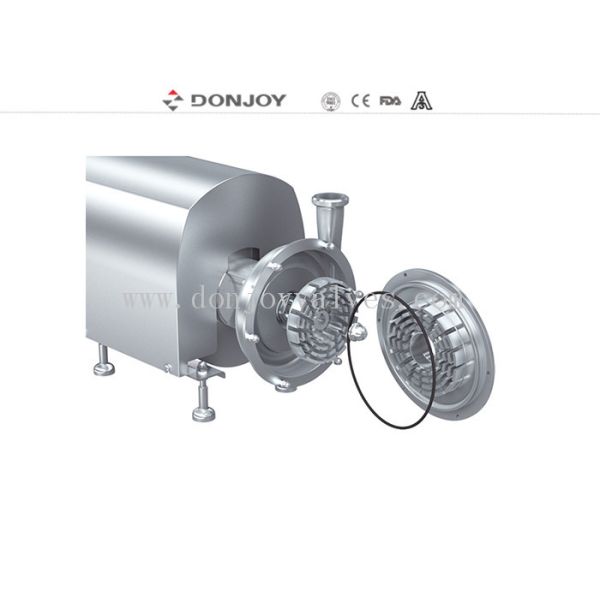

  • Maintenance disassembly and installation can be completed without professional staff and special tools
  • Initial use of installation debugging - even short reverse rotation will not cause damage
  • Impeller and shaft connected by keyway; impeller and mechanical seal rotating ring connected by pin
  • Mechanical seal static ring and pump body connected by special-shaped flange
  • Compatible with single and double mechanical seal - only need to change mechanical seal
Applications
  • Manufactured in stainless steel with shrouded motor
  • Sanitary and cost-efficient design perfect for dairies, beverages, food-processing, pharmaceutical and fine chemical industries
Selection Table
SS316L Pharmaceutical Pump with Single Seal and 1.5
Technical Drawings
SS316L Pharmaceutical Pump with Single Seal and 1.5
SS316L Pharmaceutical Pump with Single Seal and 1.5
Competitive Advantage
"DONJOY is the only company that has passed nine series of products by American 3A certification organization in Asian sanitary pumps and valves field."
