Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Specifications
Brand Name :
DONJOY
Model Number :
NO.VQD100Q2
Certification :
CE,3A,FDA
Place of Origin :
CHINA
MOQ :
Negotiation
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Product Name :
3pcs pneumatic Ball Valve
Size Of Panel :
DN10-DN100,1/2"-4"
Operation :
Pneumatic,,Manual
Media :
304/316L
Connection :
Welded, Clamped, Thread, Flange
Strength testing pressure :
PT2.4, 3.8, 6.0, 9.6MPa
Description

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME

Detail:

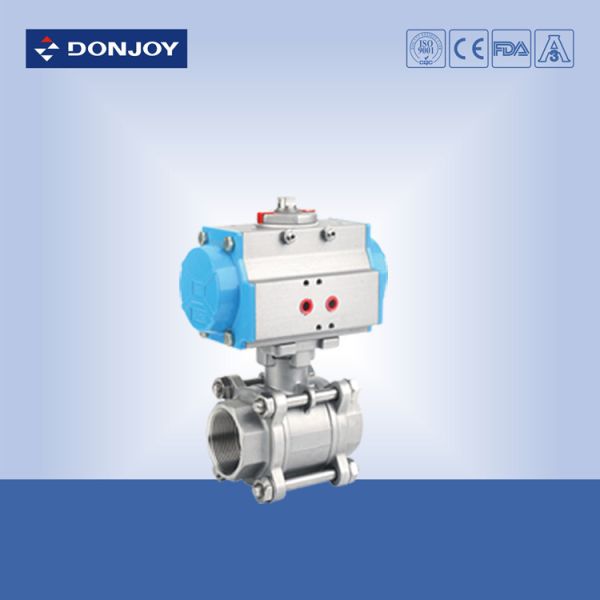

Pneumatic 3pcs ball valve

Connection: Clamped, Thread, Welding, Flange

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Specification

Product Name: Stainless steel Pneumatic 3pcs industrial full port Ball valve With BSP Thread
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: -40 to 180 degree C
Availably size: DN-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread,
Availably standard: DIN,SMS,3A
Applicable medium water, oil, gas, nitric acid, acetic acid
Operated: Manual,Pneumatic
Certificate: FDA,CE,3A,ISO

Applications:

3pc high platform welding ball valve is suitable for air, steam, water, gas, petroleum and petrochemical products, corrosive media, etc. it is widely used in petroleum, chemical industry, metallurgy, light industry, papermaking, power station, refrigeration and other work fields. 3pc ball valve products have many advantages, such as compact structure, exquisite appearance, intelligent control, excellent performance, excellent quality, easy to use and so on.

Technical Feature

Pressure: PN1.6, 2.5, 4.0, 6.4Mpa
Strength testing pressure(Low pressure): 0.6Mpa
Seat Testing Pressure(high pressure): 9.6MPa
Applicable media:
Z41H-(16-64)C Water: Oil, Gas
Z41H-(16-64)P Nitric Acid
Z41H-(16-64)R Acetic Acid

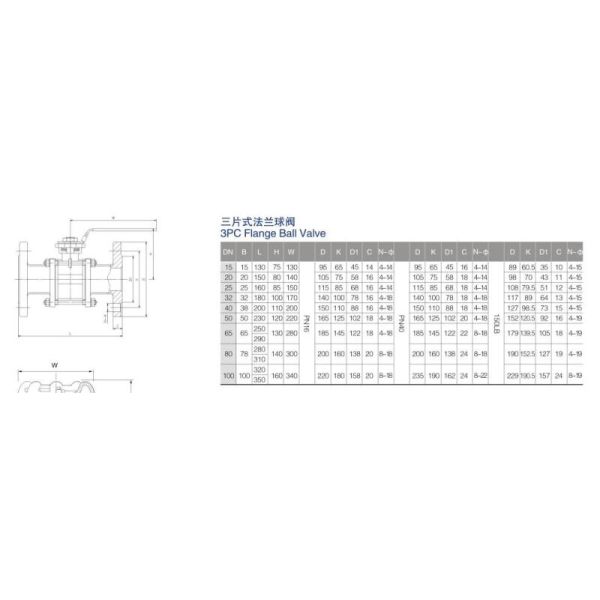

Drawing

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME

Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
