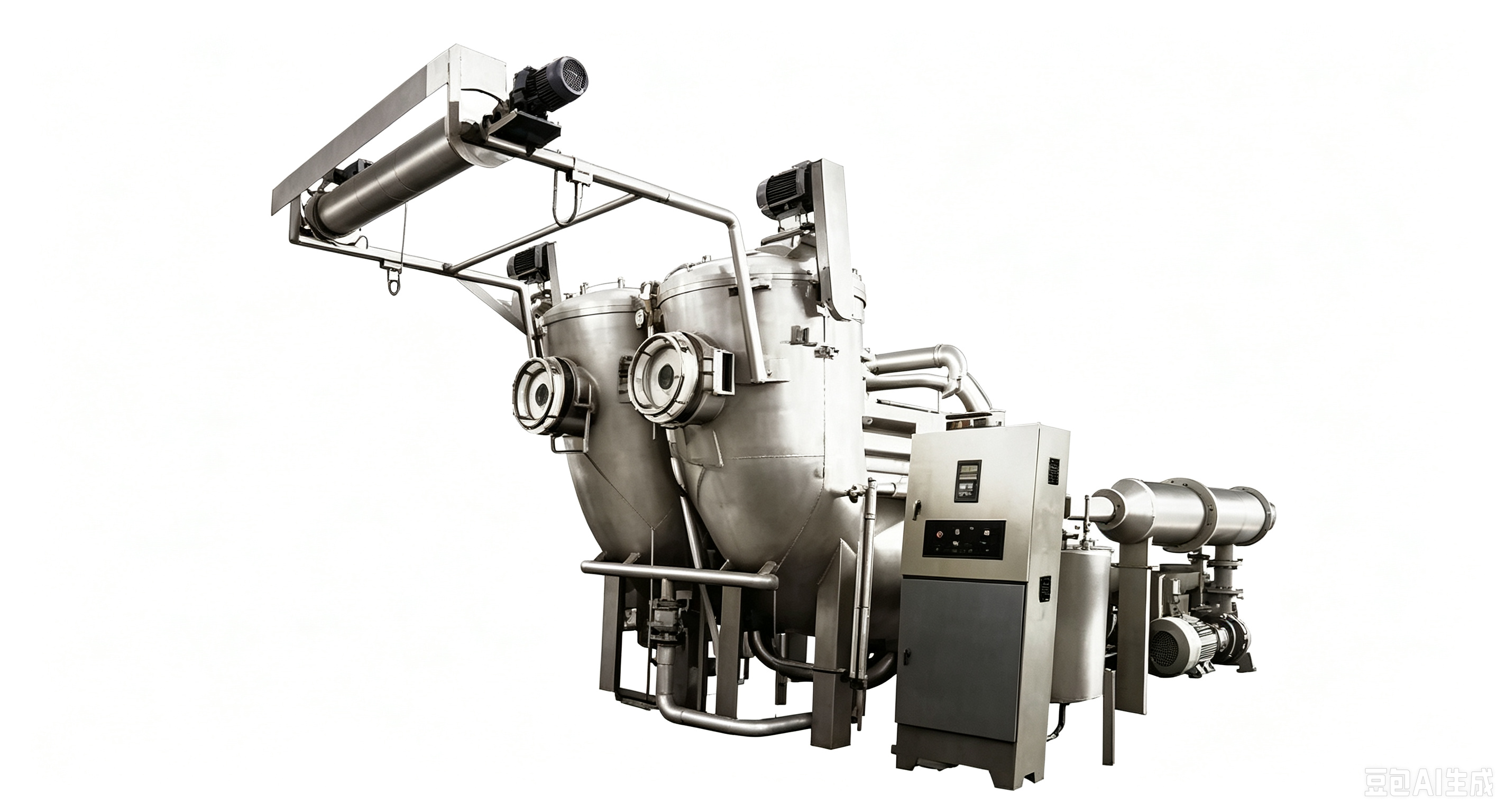

SMESeries of high-temperature double-ring slanting dyeing machines
SMESeries of high-temperature double-ring slanting dyeing machines
Specifications
Dyeingmethod :
High Temperature Dyeing
Capacity :
50-1000 kg per batch
Place of Origin :
China
Materialofconstruction :
Stainless Steel (SS304/SS316)
Automationlevel :
Semi-automatic / Fully Automatic
Packaging Details :
Standard seaworthy package
Controlsystem :
PLC Touch Screen Control
Safetyfeatures :
Overpressure Protection, Temperature Sensors
Delivery Time :
60-120days
Machinetype :
High Temperature
MOQ :
1
Payment Terms :
D/A,L/C,D/P,T/T
Brand Name :
dongtong
Powersupply :
380V/50Hz, 3 Phase
Description

Advantage


Low liquor ratio 1:6-8Decrease exhausting amount of waiste waterIncrease recycle times of dye liquorMake level dyeingSave dyes, aids, water, steam and electricity


High fabric speed


Fabric speed can reach 350m/minExchange textile and dye liquor more completely
Increase recycle times of textileMake level dyeing
Without wrinkle on textile


Technical data


Highest working temperature 140°CHighest working pressure 0.38MPa
Speed of heating up 25 °C-100 °C average 5 /minue
100 °C-130°C average 2.5 °C/minue
under saturated steam pressure of 0.7MPa
Speed of cooling down ;130°C-100°C average 3/minue
100°C -85°C average 2 °C/minute
under pressure of cooling water 0.3MPa


Main technical parameters

Model Tube Amount Load (Kg) Power of main pump (kW) Length (mm) Width (mm) Height (mm)
SME-500A 1 400–500 18.5 9800 2200 3300
SME-1000A 2 800–1000 37 9800 3700 3300
SME-2000A 4 1600–2000 55 9800 7700 3300

Product Applications

The SME Series High Temperature Double Ring Slanting Dyeing Machine is mainly applied in textile industries including garment manufacturing, fabric processing, home textiles and industrial textile production. It can process cotton, polyester, nylon, blended fabrics and other textile materials.

This High Temperature Dyeing Machine is suitable for dyeing operations that require excellent color consistency, fast production speed and environmental protection. It is widely exported to textile markets in Asia, Europe, South America, Africa and the Middle East, supporting global textile factories with advanced dyeing solutions.

Global Market Value

The SME Series High Temperature Double Ring Slanting Dyeing Machine is developed for international textile manufacturers who require advanced dyeing technology, stable quality control and sustainable production performance. With growing demand for efficient textile processing equipment worldwide, this machine provides an ideal solution for companies seeking to upgrade their dyeing production lines, improve fabric quality and achieve long term manufacturing competitiveness.

From emerging textile markets to mature industrial regions, the SME Series delivers dependable dyeing performance and supports the future development of the global textile industry.

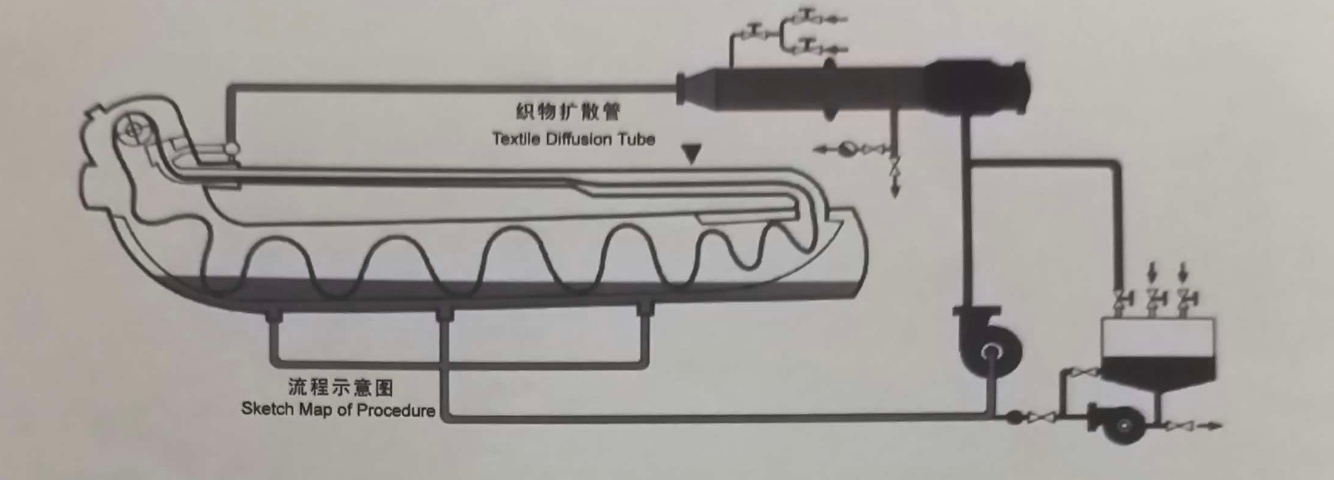

Sketch Map of Procedure
