Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Specifications
Production Capacity :
25bag/min, 60bag/min
Weight (KG) :
280
Function :
FILLING, Wrapping, Sealing
Application :
Food, Chemical
Packaging Type :
Bags, Film
Packaging Material :
Plastic
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V 50Hz,3PH (Customized)
Place of Origin :
China
Brand Name :
Domax
Dimension(L*W*H) :
1150*700*1750mm
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Motor, PLC, Gear
Usage :
Filling Packing Machine
Main Function :
Weighing Forming Filling Sealing
Keyword :
Automatic Snack Food Sugar Packing
Machine type :
Automatic Bag Forming Filling Sealing Machine
Packing speed :
20-50 Bags/min
Feature :
Easy Opperation
Automaticity :
Fully Auto
Suitable for :
Liquid Viscous Products
Bag type :
3/4 Sides Seal/Back Seal
Material :
Stainless Steel 304
Type :
Multi-Function Packaging Machine
Applicable Industries :
Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops
Showroom Location :
None
Condition :
New
Warranty of core components :
1 Year
Price :
$2,599.00/sets 1-4 sets
MOQ :
1 set
Description
Professional tomato paste Liquid Sachet Filling Packaging Machine Shaped Bag Stick Ketchup Sauce Packing Machine

Introduction of the liquid packaging machine

This machine adopts the current international advanced microcomputer chip control, 5.-inch large-screen LCD display, simple and easy-to-use operation interface, with photoelectric eye tracking and detection, accurate sealing and cutting in two packages, optional coding machine, continuous package, easy Tear the mouth, fling the knife, punch the fillet, vent or inflate the device.

Application of the liquid packaging machine

Automatic packaging of various liquid creams such as shampoo, cream, ketchup, king mortar, honey, chili oil, lotion, oral liquid and other materials.
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce

Features of the liquid packaging machine

1.High sensitive fiber optic photo sensor/photo eye electricity sensor can automatically trace color mark accurately; 2.Stepping motor driven pully roller for heat seal pulling system; 3.PLC control system combined with touch screen, can easily set and change the packing parameters.Daily production output and self-diagnostic machine error can be viewed directly from the screen; 4.PID temperature controller monitors heat sealing temperature within ±1°C.
Product Paramenters
Model
DM-320

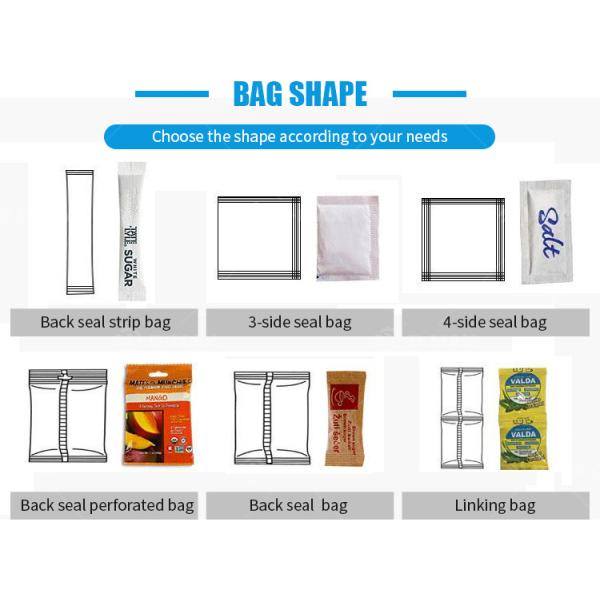

Bag style
Back seal (Customized)
Packing speed
24-60 bag/min
Bag length
30-180mm
Bag width
25-145 mm（Need to replace the Former）
Film width
70-310mm
Filling range
<40ml or 20-100ml
Air pressure
0.6－0.7MP
Power Supply
380V/220V/1.8Kw
Net weight
280kg
Machine dimensions
1150*700*1750mm
Package size
1100*750*1820mm

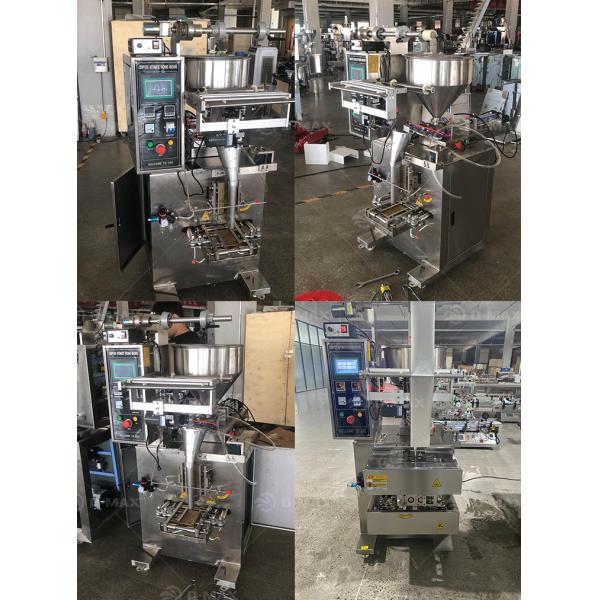

Machine Pictures Display
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Packaging & Delivery
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
Liquid Sachet Packaging Machine for Tomato Paste in Shaped Bag Stick Ketchup Sauce
