Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Specifications
Applicable Industries :
Food & Beverage Factory, Farms, Restaurant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
PLC, Motor
Condition :
New
Place of Origin :
China
Brand Name :
Domax
Power :
0.45kw
Weight :
820 KG
Dimension(L*W*H) :
1600*1200*1980mm
Year :
2024
Warranty :
1 Year
Product name :
Food Dryer Machine
Application :
Vegetable Fruit
Function :
Drying Dehydration
Material :
SUS 304
Feature :
High Efficiency Multi-functional
Capacity :
60kg/batch
Final product :
Dried Fruit Products
Keywords :
Fruit Dehydrator Drying Machine
Key words :
Fruit Drier
Suit for :
Agricultural Products
Price :
$2,390.00/sets 1-4 sets
MOQ :
1 set
Description
Hot Air Dryer Cardamom Drying Machine Tray Dryer Deshidratador De Frutas Herb Drying Machine
Product Description
This hot air drying machine uses steam or electricity as a heat source, heats it through a heat exchanger, and forces the air to be circulated by a fan. The laminar flow of hot air transfers heat to the materials through the drying process and takes away the moisture evaporated from the materials. According to the different requirements of the materials and the different states of the drying process, the ratio of air discharge volume and circulation volume can be adjusted to achieve the purpose of dual improvement of drying rate and heat utilization rate. There are adjustable air distribution devices on the left and right sides of the oven. Adjust the angle of the air distribution blades to make the temperature at the top, bottom, front and rear points in the oven consistent.
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine

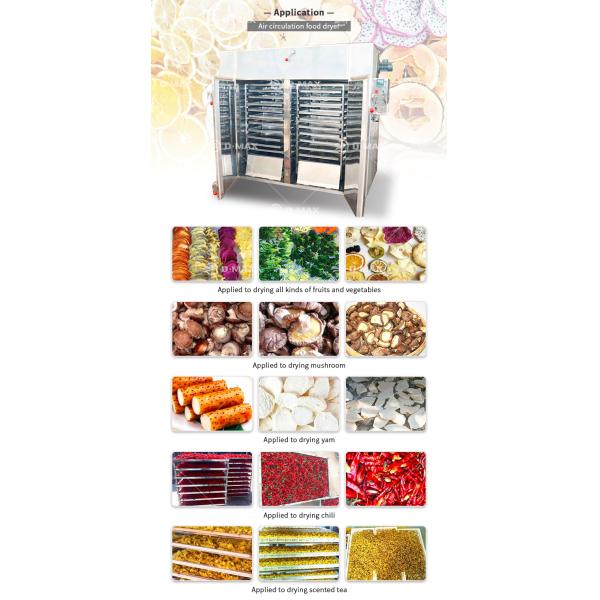

Application
It is a general-purpose drying machine with a wide application range. It is widely used for heating, curing, drying and dehydrating of materials and products in such industries as medicine, chemical industry, food, light industry, heavy industry, etc., for example: pharmaceutical materials, crude drugs, sliced herbal medicines, powders, granules, medicinal granules, small and large honeyed pill packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking finishes, etc.
Specification
Model
Capacity
Power
Cooling area
Air volume
Cart
trays
Size
CT-C-0
60kg/batch
0.45kw
5㎡
3450 m³/h
1
24pcs
1600*1200*1980mm
CT-C-I
120kg/batch
0.45kw
20㎡
3450m³/h
2
48pcs
2600*1200*1980mm
CT-C-II
240kg/batch
0.45*2kw
40㎡
6900 m³/h
4
96pcs
2600*2200*1980mm
CT-C-III
360kg/batch
0.45*3kw
80㎡
10350m³/h
6
144pcs
3600*2200*1900mm
CT-C-IV
480kg/batch
0.45*4kw
100㎡
13800 m³/h
8
192pcs
4600*2200*1980mm
Tray Dryer for Dried Fruit Products SUS 304 Hot Air Dryer Cardamom Drying Machine
Advantages
1: Most of the hot air circulates in the box, with high thermal efficiency and energy saving. 2: Utilize the effect of forced ventilation, there is an adjustable air distribution plate in the box, and the material is dried evenly 3: The heat source can be steam, hot water, and electricity. 4: The whole machine has low noise and balanced operation. Automatic temperature control, easy installation and maintenance. 5: It has a wide range of applications and can dry various materials. It is a general drying equipment.

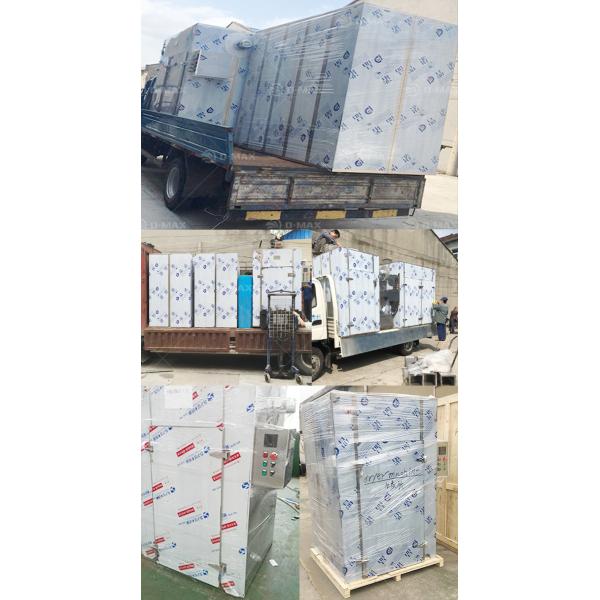

Packing & Delivery
