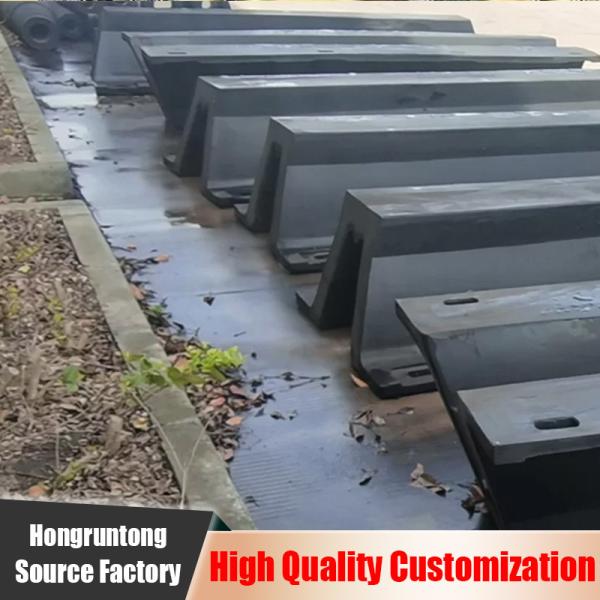

Marine V Type Fender Rigid Simple Molded One Piece Rubber
Marine V Type Fender Rigid Simple Molded One Piece Rubber
Marine V Type Fender Rigid Simple Molded One Piece Rubber
Marine V Type Fender Rigid Simple Molded One Piece Rubber
Marine V Type Fender Rigid Simple Molded One Piece Rubber
Marine V Type Fender Rigid Simple Molded One Piece Rubber
Marine V Type Fender Rigid Simple Molded One Piece Rubber
Marine V Type Fender Rigid Simple Molded One Piece Rubber
Specifications
Brand Name :
Hongruntong Marine
Model Number :
HM-VTF18
Certification :
ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin :
China
MOQ :
1
Price :
USD18 to 890 Per Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
7840 Pcs Per Month
Delivery Time :
5-7 Work Days
Packaging Details :
Pallet, Wooden Box
Product Name :
V Type Fender
Material :
High Quality NR
Hardness :
≤82 Shore A
Color :
Black or Customized
Application :
Boat Ship Dock Jetty Wharf Port
Part :
Dock Bumper
Feature :
Easy Replacement Firm for Installation
Description

V Type Fender Symmetrical Structure Even Force Distribution No Internal Steel Plates

Description

Engineered for high energy dissipation, V-Type Fenders utilize compression-deflection mechanics to minimize peak forces during collisions. Advanced rubber compounding (e.g., carbon black reinforcement) enhances tear resistance and dynamic load capacity. The V-angle (typically 60°–90°) optimizes self-aligning properties, accommodating vessel approach angles up to 15° off-center. Tested under ISO 17357-1 for cyclic compression, these fenders retain >90% of initial performance after 100,000 cycles. Specialized variants include arctic-grade rubber (-40°C operation) and fire-retardant formulations for LNG terminals.

Specifications

Product Name V Type Fender
Material High Performance Natural Rubber
Standard HGT2866-2016, PIANC2002
Shape V Type
Feature Easy Replacement Firm for Installation
Part Dock Bumper
Usage Dock Port Wharf Boat Ship
Surface Matte/Smooth
Packing Pallet or Wooden Case
Keywords Arch Rubber Fender/V Rubber Fender

Model A D E F H K M R x Q Lmax
V Type [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
HM-VTF150 50 240 326 98 150 16 - 20 108 20 × 40 3000
HM-VTF200 50 320 422 130 200 18 - 25 142 25 × 50 3000
HM-VTF250 62.5 400 500 163 250 20 - 30 164 28 × 56 3500
HM-VTF300 75 480 595 195 300 25 - 32 194 28 × 56 3500
HM-VTF400 100 640 808 260 400 25 - 32 266 35 × 70 3500
HM-VTF500 125 800 981 325 500 25 - 32 318 42 × 84 3500
HM-VTF600 150 960 1160 390 600 28 - 40 373 48 × 96 3000
HM-VTF800 200 1300 1550 520 800 41 - 50 499 54 × 108 3000
HM-VTF1000 250 1550 1850 650 1000 50 - 62 580 54 × 108 3000
*Note: Other sizes can be customized according to the requirements.

Features

Standard Compliance

Meets all major international standards (PIANC WG33, OCIMF, ISO 17357-1).

Wear Indicators

Optional embedded visual wear markers show remaining service life at a glance.

Anti Fouling Properties

Special surface treatments inhibit marine growth accumulation in tropical waters.

Quick Installation

Pre-drilled mounting holes and standardized connection systems reduce installation time by 40%.

Applications

● General cargo

● Container berths

● Cruise terminals

● Berth for barge and tugboat

● General cargo wharf

● Ferry terminal

Advantages

Rigorous Quality Control Protocols
Multi-stage inspection process including raw material testing, in-process checks, and final product certification.

Custom Engineering Expertise
Ability to develop customized V-Type solutions for unique project requirements and challenging marine environments.

Advanced Vulcanization Technology
Computer-controlled curing processes guarantee uniform rubber properties throughout each fender.

Comprehensive Testing Capabilities
On-site laboratory equipped for compression testing, aging tests, and mechanical property verification.

FAQ

1. Q: What maintenance do V-Type Fenders require?
A: Annual visual inspections and occasional cleaning are typically sufficient, with no lubrication needed.

2. Q: Can you provide custom-colored fenders?
A: Yes, we offer color customization for improved visibility and aesthetic integration.

3. Q: How are V-Type Fenders shipped and stored?
A: Fenders are shipped on pallets or in containers, and should be stored horizontally in shaded, dry conditions.

4. Q: What's the lead time for large V-Type Fender orders?
A: Standard products ship in 4-6 weeks, with expedited options available for urgent projects.
