Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Low Maintenance Marine Rubber Fender Easy To Clean Excellent Rebound
Specifications
Brand Name :
Hongruntong Marine
Model Number :
HM-VTF68
Certification :
ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin :
China
MOQ :
1
Price :
USD39 to 4930 Per Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2580 Pcs Per Month
Delivery Time :
5-7 Work Days
Packaging Details :
Pallet, Wooden Box
Product Name :
V Type Fender
Material :
High Quality NR
Hardness :
≤82 Shore A
Application :
Boat Ship Dock Jetty Wharf Port
Color :
Black or Customized
Part :
Dock Bumper
Feature :
Easy Replacement Firm for Installation
Description

Marine Rubber Fender Low Maintenance Easy To Clean Excellent Rebound

Description

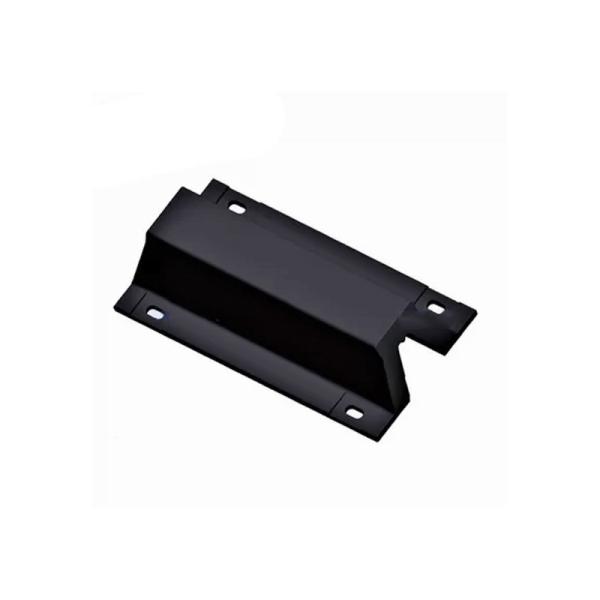

V Type Fenders are marine rubber buffers designed with a V-shaped cross-section to provide optimal energy absorption during vessel berthing. Constructed from high-grade elastomers (e.g., SBR, EPDM, or natural rubber), they excel in low-reaction-force performance, making them ideal for ports handling small to medium-sized ships. Their symmetrical design ensures uniform load distribution, reducing hull damage and dock stress. These fenders are modular, allowing customization in length via bolted connections, and are resistant to UV rays, saltwater, and abrasion. Common applications include ferry terminals, marinas, and inland ports, where their cost-effectiveness and ease of installation outperform pneumatic or cylindrical alternatives. Compliance with PIANC 2002 standards guarantees reliability under cyclic loading.

Specifications

Product Name V Type Fender
Material High Performance Natural Rubber
Standard HGT2866-2016, PIANC2002
Shape V Type
Feature Easy Replacement Firm for Installation
Part Dock Bumper
Usage Dock Port Wharf Boat Ship
Surface Matte/Smooth
Packing Pallet or Wooden Case
Keywords Arch Rubber Fender/V Rubber Fender

Model A D E F H K M R x Q Lmax
V Type [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
HM-VTF150 50 240 326 98 150 16 - 20 108 20 × 40 3000
HM-VTF200 50 320 422 130 200 18 - 25 142 25 × 50 3000
HM-VTF250 62.5 400 500 163 250 20 - 30 164 28 × 56 3500
HM-VTF300 75 480 595 195 300 25 - 32 194 28 × 56 3500
HM-VTF400 100 640 808 260 400 25 - 32 266 35 × 70 3500
HM-VTF500 125 800 981 325 500 25 - 32 318 42 × 84 3500
HM-VTF600 150 960 1160 390 600 28 - 40 373 48 × 96 3000
HM-VTF800 200 1300 1550 520 800 41 - 50 499 54 × 108 3000
HM-VTF1000 250 1550 1850 650 1000 50 - 62 580 54 × 108 3000
*Note: Other sizes can be customized according to the requirements.

Features

Corrosion Resistant Construction

Fully non-metallic design eliminates rust problems common in steel-reinforced fenders.

Temperature Resilience

Specialized compounds maintain flexibility from -50°C to +80°C (arctic and tropical grades available).

Modular System

Standardized sections (typically 500-2000mm lengths) allow customized configurations and easy damaged segment replacement.

Lightweight Design

Hollow V-structure reduces weight by 30-40% compared to solid rubber fenders of equivalent capacity.

Applications

● Shipyards

● Offshore Platforms
● Floating Docks
● Quay Walls
● Breakwater Structures

Advantages

Complete Product Range
Full spectrum of V-Type Fenders from small marina sizes to heavy-duty port configurations.

Value Added Services
Optional features including wear indicators, special color coding, and custom markings available.

Proven Performance Track Record
Thousands of successful installations worldwide across diverse marine applications.

Continuous R D Investment
Ongoing product improvement program focused on enhancing durability and performance.

FAQ

1. Q: How do you ensure consistent rubber quality?
A: We source premium raw materials and maintain strict compound formulations with batch testing.

2. Q: What documentation accompanies your fenders?
A: Each shipment includes material certificates, test reports, installation manuals, and warranty information.

3. Q: Are your production processes environmentally friendly?
A: Yes, we utilize energy-efficient manufacturing and recyclable materials with low VOC emissions.

4. Q: How do you calculate the required fender size for a specific berth?
A: Our engineers consider vessel size, approach velocity, tidal range, and berth structure to recommend optimal fender specifications.
