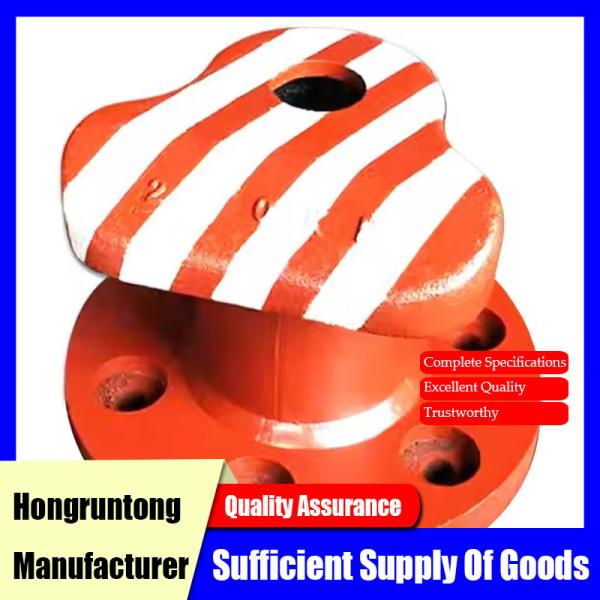

Harbor Bollards Superior Strength UV Resistant Finish Easy Rope Handling

Description

Hongruntong Marine Mooring Bollards are engineered to provide unparalleled safety, reliability, and longevity in the most demanding maritime environments. Manufactured from high-tensile strength steel and featuring advanced design elements like internal ribbing and anti-slip horns, our bollards are the cornerstone of secure vessel berthing. They are designed to exceed international standards such as OCIMF and ISO, ensuring compliance and peace of mind for port operators, shipyards, and offshore operators.

Case Snapshot

The Port of Shanghai, facing increased traffic from ultra-large container vessels, was experiencing premature wear and safety concerns with their existing bollards. After switching to Hongruntong's custom-designed double-cross bollards, they reported zero incidents of bollard deformation or line slippage over a 12-month period, despite a 15% increase in vessel calls. The port's maintenance team also noted a 40% reduction in annual inspection and touch-up costs due to our superior corrosion protection system.

Specifications

Expanded Industry Background Pain Points

The global shipping industry is defined by increasing vessel sizes (ULCVs, mega-tonnage LNG carriers) and higher operational intensity. This places immense strain on port infrastructure.

• Key Pain Points:

  • Catastrophic Failure Risk: Standard bollards can deform, crack, or fail under sudden, extreme loads (e.g., engine thrust, squalls), leading to breakaways, vessel collisions, and environmental disasters.

  • Accelerated Wear Corrosion: The marine environment relentlessly attacks carbon steel, leading to thinning, pitting, and structural weakness, necessitating frequent, costly replacements and downtime.

  • Line Slippage: Smooth or poorly designed bollard horns allow mooring lines to jump off, especially during tidal shifts or when vessels change draft, creating immediate danger.

  • Compliance & Liability: Ports face stringent audits. Non-compliant equipment can lead to operational shutdowns, increased insurance premiums, and significant liability in case of an accident.

Detailed Market Needs, Operational Safety Requirements

• Market Needs: Demand is for bollards that offer higher Safe Working Load (SWL) and Ultimate Breaking Load (UBL) ratings, longer service life with lower maintenance, and full regulatory compliance.

• Operational Environment: Products must perform in saltwater immersion zones, withstand UV radiation, resist impact and abrasion from lines and debris, and function across a temperature range from -20°C to 50°C.

• Safety Requirements: The primary requirement is absolute reliability. Bollards must have a high factor of safety (typically 4:1 or 6:1, UBL to SWL), fail-safe design, and features that prevent human error during mooring operations.

Case Expansion: Port of Rotterdam Terminal Operator

• Before: Used standard cast iron bollards. Experienced frequent line slippage with smaller feeder vessels, requiring constant crew attention. Corrosion meant sandblasting and repainting every 18 months, costing ~€5,000 per bollard in direct maintenance and operational downtime.

• After: Installed Hongruntong's Hot-Dip Galvanized Anti-Slip Bollards.

  • Safety: The patented horn design eliminated line slippage entirely.

  • Cost Savings: The 100-micron galvanized coating showed no significant corrosion after 4 years. Projected maintenance cost savings over 10 years: over €200,000.

  • Efficiency: The standardized design simplified crew training and reduced berthing time by an average of 5 minutes per operation due to increased crew confidence.

Product Features

Feature 1: Internal Rib Reinforcement High Tensile Steel Construction

• Principle/Technical: Unlike hollow standard casts, our bollards are fabricated from rolled steel plate (e.g., Q345B/GR.50). Critical stress points are reinforced with internal steel ribs, creating a monolithic, high-strength structure.

• Application Value: Dramatically increases UBL, allowing for a higher SWL with a smaller footprint. Distributes shock loads evenly, preventing stress concentration and metal fatigue.

• Example Advantage: A standard 75-ton SWL bollard might fail at 300 tons. Our rib-reinforced 75T SWL bollard has a UBL of 450+ tons, providing a critical safety buffer during a storm surge or a pilot error.

• Comparison: Standard Product: Prone to bending or cracking at the base. Our Product: Remains structurally rigid under maximum load, returning to its original shape.

Feature 2: Patented Anti Slip Horn Design

• Principle/Technical: The horn profile features a pronounced "double-lip" or "wave" geometry. This increases the surface contact and creates a mechanical lock with the mooring line.

• Application Value: Positively prevents the line from riding up and jumping off the bollard, even when tension is momentarily slackened.

• Example Advantage: During offloading, a ship's draft changes, loosening lines. On a standard bollard, the line can slip off; our design holds it securely, preventing a potentially disastrous drift.

• Comparison: Standard Product: Smooth, rounded horns. Our Product: Engineered contours that grip the line without cutting it.

Feature 3: Multi Layer Corrosion Protection System

• Principle/Technical: A combination of Shot Blasting (SA 2.5) + Hot-Dip Galvanizing (≥85μm) + Epoxy Primer + High-Build Polyurethane Topcoat. This system provides both cathodic (sacrificial) and barrier protection.

• Application Value: Extends service life to 25+ years with minimal maintenance, even in C5-M high salinity environments. Drastically reduces lifecycle costs.

• Example Advantage: In a Middle Eastern port, standard painted bollards rusted in 3 years. Our treated bollards showed no base metal corrosion after 8 years, requiring only minor touch-ups.

• Comparison: Standard Product: Paint only, fails quickly. Our Product: A multi-stage, marine-grade system proven in offshore applications.

Feature 4: OCIMF/ISO Compliant Design Certification

• Principle/Technical: Every design is calculated and tested (via FEA - Finite Element Analysis) to meet or exceed the load and safety factors stipulated by OCIMF (Oil Companies International Marine Forum) and ISO standards.

• Application Value: Provides documented proof of compliance, simplifies port authority audits, reduces insurance premiums, and mitigates legal liability.

• Example Advantage: A new terminal was able to fast-track its certification for accepting VLCCs (Very Large Crude Carriers) because its bollard supply came with full HRT certification packages.

• Comparison: Standard Product: May claim compliance without third-party verification. Our Product: Each batch is supplied with a Mill Test Certificate and a Certificate of Compliance traceable to the product.

Applications

Container Terminals (ULCV Berths)

• Operation: Multiple lines (head, breast, stern, spring) are led from the ship's winches to large, double-cross bollards on the quay.

• Environment: High, dynamic loads from container cranes and vessel thrusters.

• Solution: Our high-UBL, rib-reinforced bollards absorb the powerful forces without deformation. The anti-slip feature is critical as lines are constantly adjusted.

• Note: Bollard spacing must be precisely calculated based on the vessel's mooring plan.

LNG Oil Terminals (Tanker Berths)

• Operation: Berthing of high-value, hazardous cargo carriers. Safety is paramount. Bollards are used in conjunction with quick-release hooks.

• Environment: Explosive atmosphere, constant exposure to hydrocarbons and saltwater.

• Solution: Our certified bollards ensure the required safety factor is met. The non-sparking nature of galvanized steel is a key safety benefit in these zones.

• Note: Strict inspection schedules must be followed. The corrosion protection system must be intact.

Tugboat Shipyard Operations

• Operation: Bollards are used for securing vessels during repair and for tugboats to pull against.

• Environment: Extreme, multi-directional loads, and high abrasion.

• Solution: Our fabricated steel construction offers superior impact resistance. The robust design can withstand the "jerk" loads often encountered in towing.

• Note: Regular inspection for surface wear is recommended.

Why Choose Hongruntong Marine?

1. Engineering Expertise Customization: We don't just sell products; we provide solutions. Our in-house engineering team uses FEA software to design and validate custom bollards for unique projects, ensuring perfect fit and performance.

2. Uncompromising Quality Control: From raw material sourcing (with MTCs) to final inspection, every step is documented. We perform dimensional checks, ultrasonic thickness testing, and destructive testing on sample products to guarantee every bollard meets our strict standards.

3. Proven Track Record & Global Support: Our bollards are operational in over 50 major ports worldwide, including Singapore, Rotterdam, and Dubai. This global experience is backed by a responsive after-sales and technical support team.

4. Integrated Manufacturing & Logistics: We control the entire process—cutting, welding, galvanizing, painting, and packaging—in our own facilities. This ensures cost efficiency, on-time delivery, and complete quality oversight. We handle all export documentation and logistics seamlessly.

FAQ

Q1: What is the difference between SWL and UBL, and what safety factor do you use?

• A: The Safe Working Load (SWL) is the maximum load that should be routinely applied. The Ultimate Breaking Load (UBL) is the load at which the product will fail. We adhere to OCIMF guidelines, typically employing a 4:1 safety factor (UBL = 4 x SWL) for land-based bollards. For example, a 100T SWL bollard has a minimum UBL of 400T.

Q2: Can you provide bollards for extreme cold climates where embrittlement is a concern?

• A: Absolutely. For arctic operations (e.g., below -20°C), we specify and use low-temperature carbon steel (e.g., ASTM A537 Class 1) which is specially treated to maintain its toughness and impact resistance, preventing brittle fracture. This is a critical consideration we address at the design and material selection phase.

Q3: How do I determine the correct SWL and type of bollard needed for my berth?

• A: The selection is based on the size and type of vessel (determining mooring line breaking strength) and the environmental conditions (wind, current, waves). This is typically calculated by a marine engineer. We can assist by providing our technical data sheets and, upon request, working with your engineering team to review project specifications and recommend the optimal solution.

Q4: What is the recommended maintenance schedule for your galvanized and painted bollards?

• A: Our systems are designed for low maintenance. We recommend an annual visual inspection for mechanical damage and coating integrity. In a standard C4 environment, a full recoat of the paint system may not be needed for 15+ years. If the topcoat is scratched deeply, touch up with a compatible polyurethane paint. If the galvanizing is damaged, it should be repaired using a zinc-rich cold galvanizing compound to maintain cathodic protection.
