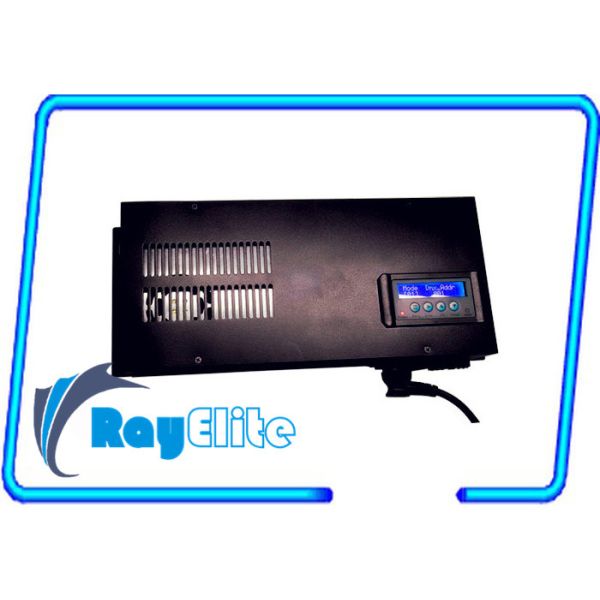

Meanwell PSU RGBW LED tape controller

high power RGBW LED tape controller, phoenix connector output, meanwell PSU


Quick Detail
Model Number: RT-DS300
Brand Name: RayElite
Type: led constant voltage controller
Lamp Power (W): 300w
Input Voltage (V): 90-250V
Output: 1 prt, 300W RGBW 4CH total
refresh rate: 1000Hz
Operating Temperature: 0~70℃
Gray Level: 256
control: Single color, RGB, RGBW led tape led strip

Description:
The DS300 is ideal for controlling many types of constant voltage LED tape Including RGB, RGBW, RGBA and Multiple Single colour tape.It can be operated from a standard DMX controller (4Channel) or from Its stand alone built in programs Providing: Colour fade, Chase & Sound Triggered Chase with speed dim & sensitivity control. The SSL-DS 300 also has theability to dim its 4 outputs independently Allowing static colour and Dimming functions Multiple units can be connected togetherusing the master slave function
Easy connection, decoder supply signal and power together
High frequency output PWM, no flicker under camera
TVS protection, Isolation power
Decoder supply the power directly for easy connection
DMX addresses set manually by DIP switch
Apply for led module, led pixel light, led digital strip, led digital bar etc.
DMX input : Neutrik XLR 3Pin/5Pin optional
Support RGB strip and single color strip
Easy connect to DMX control systems

Applications:
Disco and Club
Live performance
Stage show
architectural
Home decorate


Specifications :

Competitive advantages:
wall mount, high quality high efficency PFC power supply with CE RoSH SAA C-tick approval from meanwell, refresh rate 1000HZ for TV studio,no flickering, 256 steps very smooth dimming, short curcuit protection for avoiding wrong connection.

Detail & Effect
