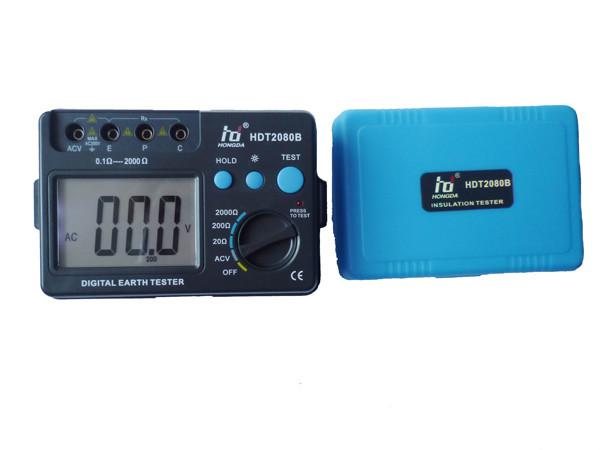

LCD Backlight Digital Ground Resistance Tester with 32mm High Figure
LCD Backlight Digital Ground Resistance Tester with 32mm High Figure
Specifications
Brand Name :
HD , OEM
Model Number :
HDT2080B
Certification :
CE
Place of Origin :
Shenzhen ,China
MOQ :
100pcs
Price :
negotiation
Payment Terms :
FOB HK T / T ,Paypal
Supply Ability :
1000, 0PCS/week
Delivery Time :
25-30 days
Packaging Details :
Gift box
Description

LCD Backlight Digital Ground Resistance Tester with 32mm High Figure

Quik details :

Brand name : HD
Origin : Shenzhen China
Range : 0--2000Ω
Test voltage : 0—200V
Accuracy Class : 2%
Display type : Digital Only
Weight : 500g
MOQ : 100PCS

Specifications :

3 1/2 digits,

large LCD,

test lock, backlight
Resistance:0--2000 ohm
Voltage:0--200V

Features and Benefits :

  • Earth resistance range: 0-2000Ω.
  • Earth voltage range: 0-200V.
  • 3 ½ digit LCD display with 32mm high figure
  • Withstand voltage: 3700V AC between the circuit and body cover (for 1 minute).
  • Test lock and hold function.
  • white backlight.

Technical data :

Earth resistance 0-20Ω ±(2%+10)

0-200Ω ±(2%+3)

0-2000Ω ±(2%+3)

AC Earth Voltage 0-200V ±(1%+4)

Special function

HDT2080B

Working temperature

0°C—40°C relative humidity < 80%

Storage temperature

-10°C—50°C relative humidity < 85%

Best measuring temperature

23°C±5°C relative humidity < 75%

2 wires test

√

3 wires test

√

Battery test

√

Data holds

√

Full icon display

√

Double insulation protection

√

Over range dispaly

√

Operation method

Manual range

Max. display

1999

LCD size

55*33mm

Power source

1.5V AA battery *8pcs

General characteristic :

Meter weight :500g (including the battery)

Meter size :170×110×60mm

Standard accessory :Supportive earth bar, test leads, battery, manual, pouch.

Standard packing :Gift box
