Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds
Specifications
Place of Origin :
Shenzhen ,China
Brand Name :
HD , OEM
Certification :
CE
Model Number :
AT2150B
MOQ :
300pcs
Price :
negotiation
Packaging Details :
Gift box
Delivery Time :
20-30 days
Payment Terms :
FOB HK
Supply Ability :
200 ,0PCS/week
Color :
Gray + Red
Certificate :
CE
Max Display :
1999
Description

Duty Cycle Digital Automotive Multimeter With Diode hFE Continuity Data Holds

Quik details :

Measuring Current Range : 200mA-20A

Measuring Voltage Range :2V-1000V

Measuring Resistance Range : 200Ω-20MΩ

Capacitance : 20nF/2uF/200uF

Temperaturer : -40-1000C

Dwell : 1/3/4/5/6/8 CYL

TACH : 1/3/4/5/6/8 CYL

Discription :

AT2150B is a Instrument Latest Automotive Multimeter

AT2150B is a high-performance 3 1/2 digit digital autorange automotive multimeter.

Besides AC and DC voltage, AC and DC current, resistance, capacitance ,continuity, diode, capacitance, temperature, duty cycle measurement functions, this meter can also measure RPM. dwell angle .

It features relative measurement, data hold, backlight, hFE, duty cycle,continuity and etc. It is an ideal measurement tool for automotive repair and service personnel.

it is a fully featured digital multimeter with all the functions you may need.

Its 20-degree rotary switch covers 12 different functions. Car repairment factory and the one who has car can buy one .So it must be a good partner and choice for the electricain, repairman or normal user in daily usage.

Specification :

Basic function

Measurement range

Basic accuracy

DC voltage

2V/20V/200V/1000V

±(0.5%+3)

AC voltage

2V/20V/200V/700V

±(0.8%+3)

DC current

200m---20A

±(1.2%+3)

AC current

200m---20A

±(1.2%+3)

Resistance

200 /2K/20K/200K/2M/20/200MΩ

±(0.8%+3)

Capacitance

20nF/2uF/200uF

±(5.0%+3)

Temperature

--40℃---1000℃

±(1.5%+15)

Dwell

1/3/4/5/6/8 CYL

±(1.2%+2)

TACH

1/3/4/5/6/8 CYL

±(1.2%+2)

Specification function

Diode test

V

Continuity buzzer

V

Duty cycle

V

Measurement

V

Backlight

V

Data hold

V

hFE

V

Max dispaly

1999

Color

Grey+red

Weight

780g(including batteries)

Dimension

205*100*60mm

Accessories

Test lead ,manual ,battery

Standard inner package

Color box

Standard package quality

30 sets

Outer packing size

47*37*48cm

Standard packing gross weight

24.5kg

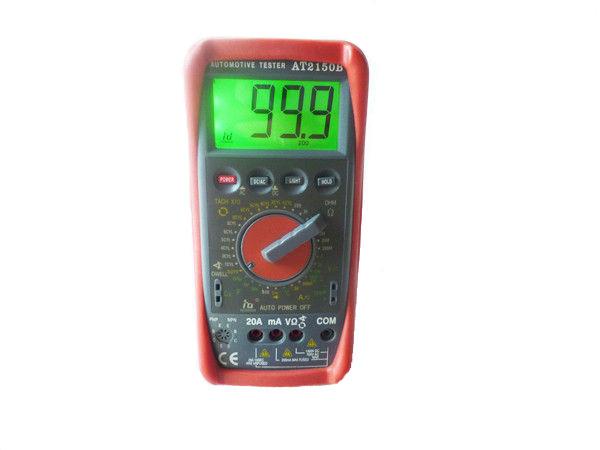

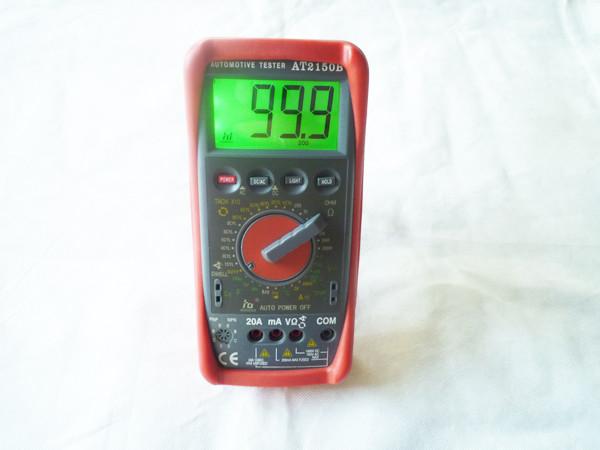

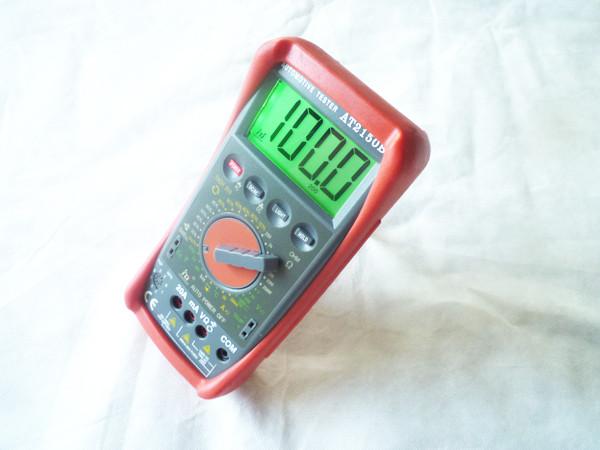

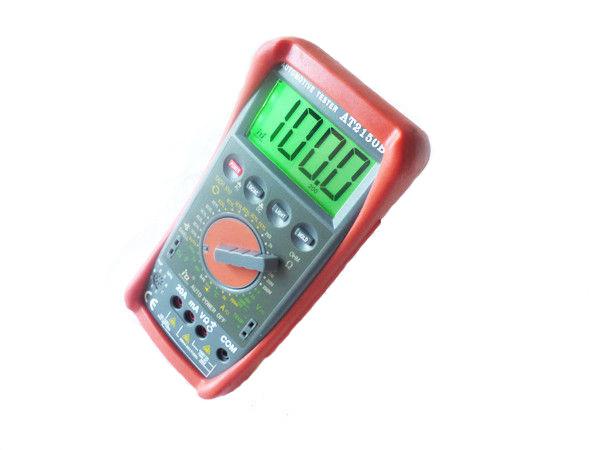

Product Pictures :
