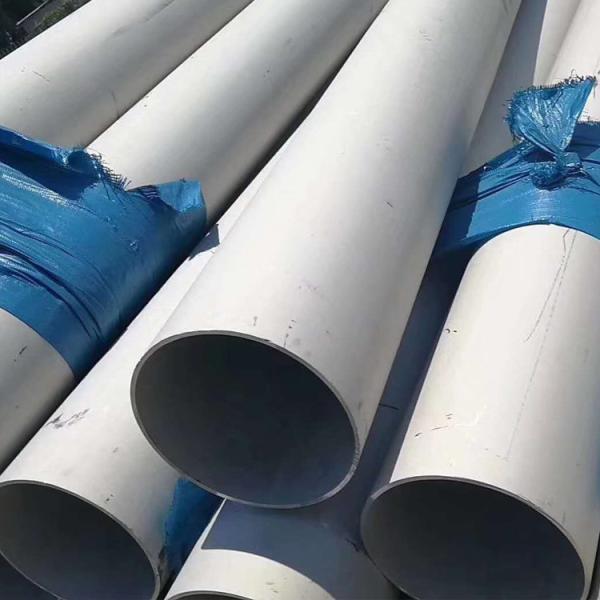

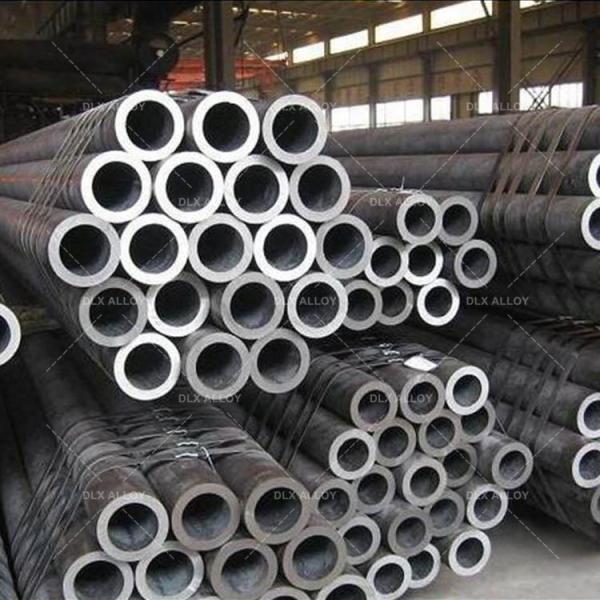

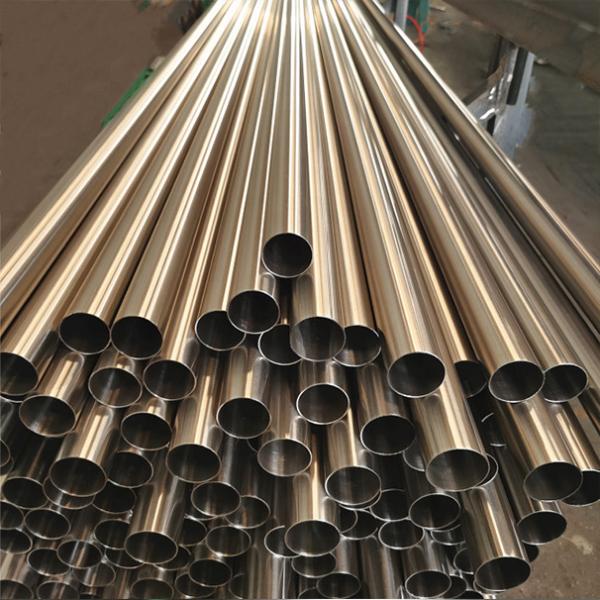

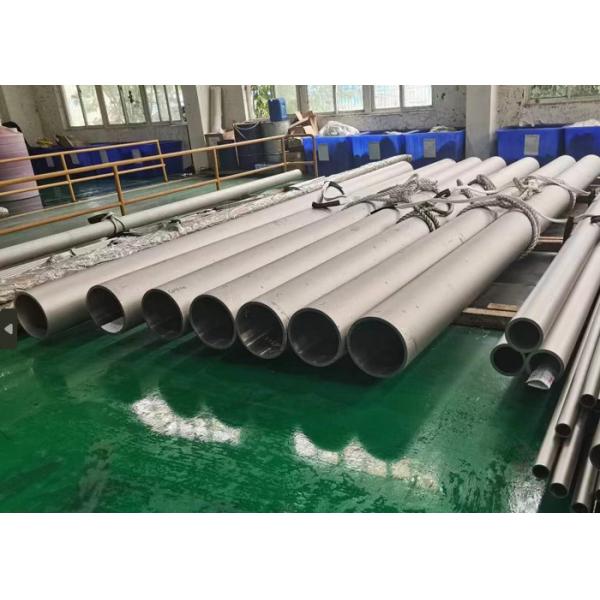

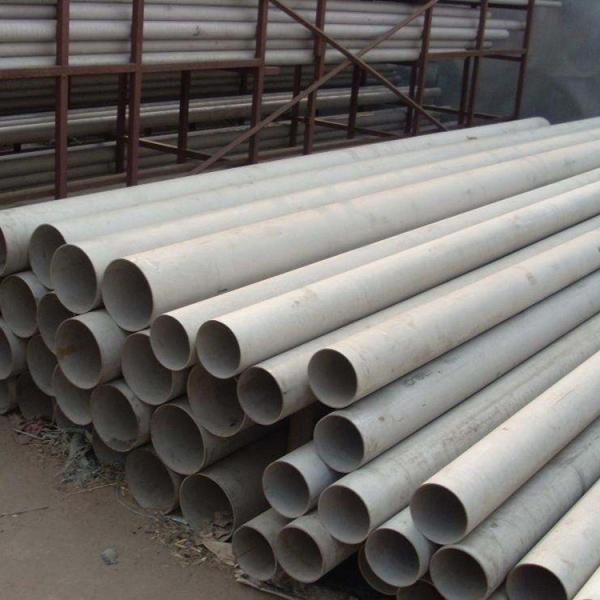

Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409
Specifications
Brand Name :
DLX
Model Number :
incoloy 800
Place of Origin :
China
MOQ :
5
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 tons per month
Delivery Time :
7-50 days
Packaging Details :
wooden case or woven bag
Material :
Ni Fe Cr
Nickel(Min) :
30%
Coefficient of Expansion :
14.4 μm/m °C (20 – 100°C)
Specific Heat :
460 J/kg•°C
Density :
7.94 g/cm3
Curie Temperature :
-115°C
Sureface :
Bright, Acid white
Thermal Conductivity :
11.5 W/m-K
Melting Point :
1385°C
Elongation :
30 %
Description

Incoloy 800 Seamless Pipe/Tube Manufacturer ASTM B409 Incoloy800/UNS N08800/GB NS111/Alloy800 tube

Incoloy 800 Seamless Pipe ASTM B409
Inconel Series

Corrosion Resistance in the strickly working condition incoloy800ht 800H/800T offer superior corrosion resistance in oxidizing corrosive environments such as nitric acid or nitric acid-sulfuric acid. Likewise, they perform well in sodium salt and other molten salt environments, with stress corrosion cracking resistance surpassing standard austenitic stainless steels.

Applications in the indutry for incoloy 800ht 800H 800 are widely used in chemical plants, heat treatment furnaces and other high-temperature environments.

Chemical Properties of Incoloy 800
Incoloy Ni Cr Fe C Mn S Si Cu Al Ti
800 30.0-35.0 19.0-23.0 39.5min 0.10max. 1.50max. 0.015max. 1.0max. 0.75max. 0.15-0.60 0.15-0.60
Application

Some typical applications are:

  • Heat-treating equipment such as baskets, trays, and fixtures.
  • Chemical and petrochemical processing,
  • Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
  • Nuclear power plants, it is used for steam-generator tubing.
  • Domestic appliances for sheathing of electric heating elements.
  • Production of paper pulp, digester-liquor heaters are often made of alloy 800.
  • Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.
Type we could offer
AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
AMS 5766 Bar Incoloy 800 Nickel N08800 - Bar Incoloy 800 Seamless Pipe ASTM B409
AMS 5766 Custom Tube Incoloy 800 Nickel N08800 - Custom Tube Incoloy 800 Seamless Pipe ASTM B409
AMS 5871 Plate Incoloy 800 Nickel N08800 - Plate Incoloy 800 Seamless Pipe ASTM B409
AMS 5871 Sheet Incoloy 800 Nickel N08800 - Sheet Incoloy 800 Seamless Pipe ASTM B409
AMS 5871 Strip Incoloy 800 Nickel N08800 - Strip

Incoloy 800 Seamless Pipe ASTM B409
Incoloy 800 Seamless Pipe ASTM B409 Incoloy 800 Seamless Pipe ASTM B409 Incoloy 800 Seamless Pipe ASTM B409
contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
