Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
Specifications
Brand Name :
DLX
Model Number :
Bright Soft Nickel Based alloy Hastelloy C-4 Alloy Wire With Good Price
Place of Origin :
China Jiangsu
MOQ :
5
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 tons per month
Delivery Time :
5-20 Days
Packaging Details :

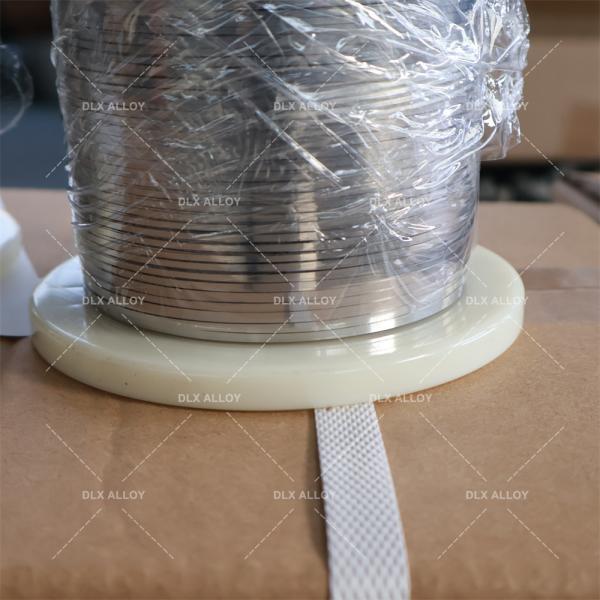

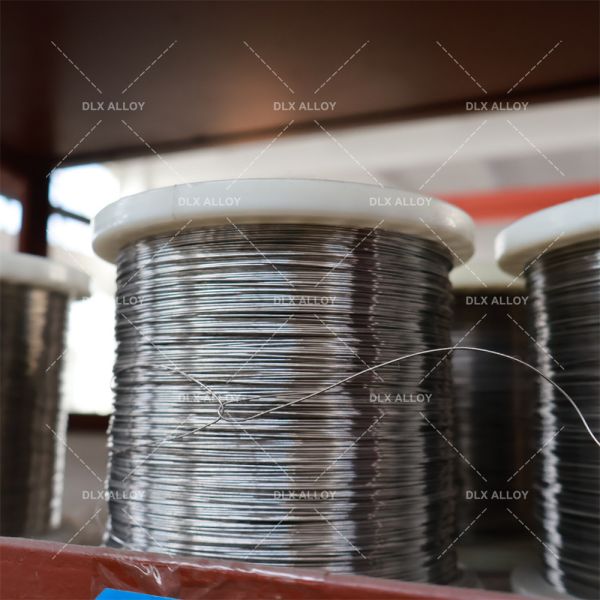

Hastelloy C-4 wire packed in spool,in coil,then in carton,in woodencase
Material :
Ni Cr Mo
Elongation :
30 %
Brinell hardness HB :
≤220
Density :
8.89 g/cm3
Tensile strength Rm N/mm² :
760MPA
Yieldstrength R P0. 2 N/mm² :
345MPA
Electrical Resistivity（24℃）） :
1.30 microhm-m
Thermal Conductivity（32℃） :
9.4 W/m-K
Certification :
CE,ROHS
Description

Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment


  • Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density in Extreme Environment

Hastelloy C-4 wire performs well in high temperature and corrosive media, especially in strong acid and oxidizing environments such as chloride, sulfuric acid, and hydrochloric acid. It has excellent mechanical properties, with a tensile strength of 650-989 MPa in solid solution, a yield strength of 280-352 MPa, and an elongation of 40%-44%. In addition, it has good oxidation resistance and stress corrosion cracking resistance, and is suitable for temperatures ranging from -200℃ to 400℃.
Hastelloy C-4 wire, with its excellent corrosion resistance and high temperature stability, is an ideal material for handling corrosive media in the chemical, petroleum, pharmaceutical and other industries.

  • Chemical Properties of Hastelloy C-4 Wire

​

Hastelloy Alloy Ni Cr Co Mo FE W Mn C V P S Si
C-4 Balance 14-18 2 Max 14-17 3.0 Max 1.0 Max 0.015 Max 0.04 Max 0.03 Max 0.08 Max

  • Corrosion resistance

Hastelloy C-4 performs well in both oxidizing and reducing environments, and has excellent corrosion resistance to strong corrosive media such as chlorides, sulfides, hydrofluoric acid, and sulfuric acid.

  • ​High temperature performance

Its melting point range is 1350°C - 1400°C, has good high temperature strength and oxidation resistance, and can work stably in the temperature range of -200°C to 400°C.

  • Mechanical properties

Tensile strength: 758 - 1034 MPa (annealed state).
Yield strength: 345 - 365 MPa.
Elongation: 50% - 55%.

  • Type we could offer
ASTM Alloy Type UNS Misc./Shape
ASTM B574
Bar		 Hastelloy C-4 Nickel N06455 Bar
ASTM B575
Plate		 Hastelloy C-4 Nickel N06455 Plate
ASTM B575
Strip		 Hastelloy C-4 Nickel N06455 Strip
ASTM B575
Sheet		 Hastelloy C-4 Nickel N06455 Sheet
ASTM B619
Welded Pipe		 Hastelloy C-4 Nickel N06455 Welded Pipe
ASTM B622
Seamless Tubing		 Hastelloy C-4 Nickel N06455 Seamless Tubing
ASTM B366
Fittings		 Hastelloy C-4 Nickel N06455 Fittings
ASTM B574
Wire		 Hastelloy C-4 Nickel N06455 Wire

Hastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme EnvironmentHastelloy C-4 Alloy Electrical Wire Nickel Alloy 8.89 G/Cm3 Density In Extreme Environment
