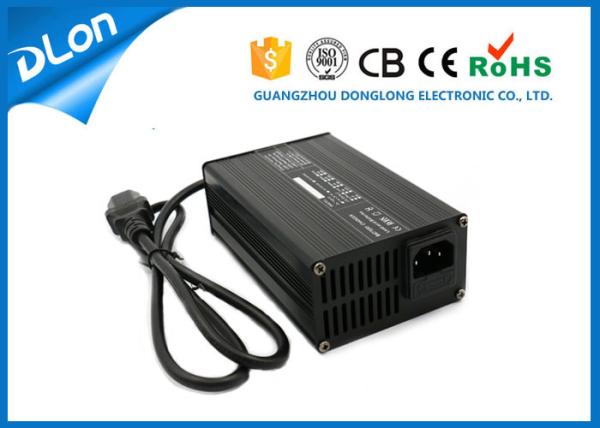

Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
Specifications
Brand Name :
DLON
Model Number :
DL120-36V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$15.0 ~ $20.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A

Brief description :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The specification :

Nominal

Output Voltage

CV

CC

Transition / Cut-off Current

Net Weight

Size

Lead Acid

Li-MnO2

LiFePO4

A

Lead Acid (A)

Li(A)

(kg)

(mm)

DL120-12V

14.7V

16.8V

14.6V

6A

1.2

0.3

0.9

135*90*50

DL120-24V

29.4V

29.4V

29.2V

3A

0.8

0.2

DL120-36V

44.1V

42.0V

43.8V

2.5A

0.6

0.15

DL120-48V

58.8V

54.6V

58.4V

2A

0.4

0.10

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A

Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3ADurable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3ADurable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A

Charging Procedure :

1. First output power charger wire ends are connected to the battery anode and cathode , the charge

indicator turns green, the connection is correct, otherwise the charge in question, please check the

actual situation.

2. Then city power plug to socket , the indicator is red, charger will be into the charging state .

3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% ,

keep charging for 1 to 2 hours before end of charge.

4. When fully charged, disconnect the city power first, then disconnect the battery cable.

Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A

Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3ADurable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3ADurable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A

Durable and stable LifePO4 / Li-ion E-bike battery charger 43.8 V / 42.0V 3A
