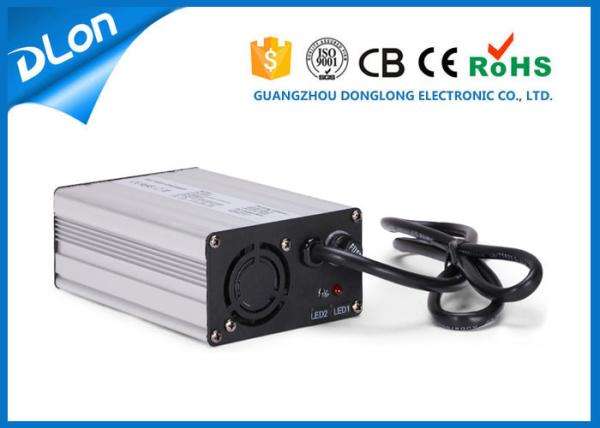

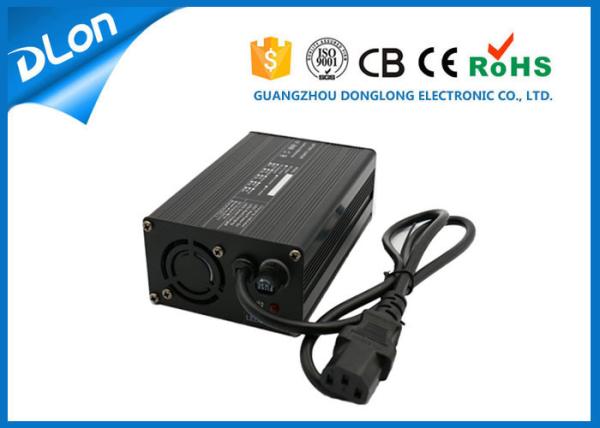

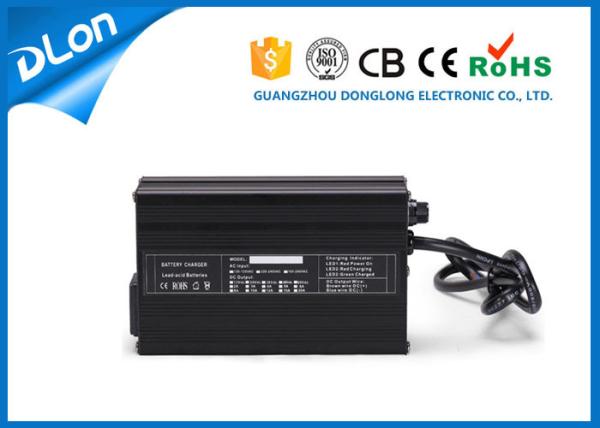

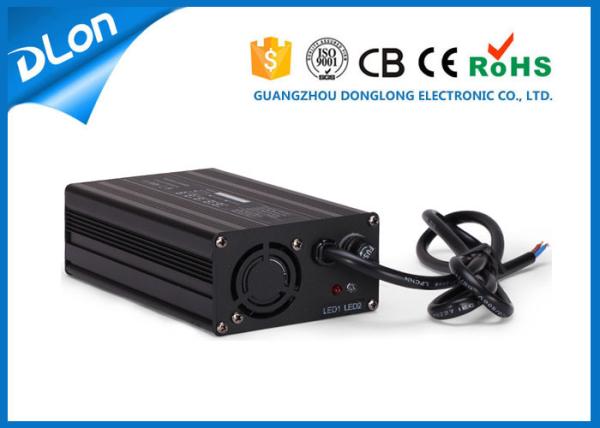

4A 24V battery charger with floating charge for lead acid battery
4A 24V battery charger with floating charge for lead acid battery
4A 24V battery charger with floating charge for lead acid battery
4A 24V battery charger with floating charge for lead acid battery
4A 24V battery charger with floating charge for lead acid battery
4A 24V battery charger with floating charge for lead acid battery
4A 24V battery charger with floating charge for lead acid battery
4A 24V battery charger with floating charge for lead acid battery
Specifications
Brand Name :
DLON
Model Number :
DL120-24V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$15.0 ~ $20.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

4A 24V battery charger with floating charge for lead acid battery

Brief description :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The lead-acid battery charger structure as follows :

4A 24V battery charger with floating charge for lead acid battery

The specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-MnO2 LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL120-12V 14.7V 16.8V 14.6V 6A 1.2 0.3 0.9 135*90*50
DL120-24V 29.4V 29.4V 29.2V 4A 0.8 0.2
DL120-36V 44.1V 42.0V 43.8V 3A 0.6 0.15
DL120-48V 58.8V 54.6V 58.4V 2A 0.4 0.1


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

4A 24V battery charger with floating charge for lead acid battery4A 24V battery charger with floating charge for lead acid battery4A 24V battery charger with floating charge for lead acid battery4A 24V battery charger with floating charge for lead acid battery

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

4A 24V battery charger with floating charge for lead acid battery

4A 24V battery charger with floating charge for lead acid battery

For more information about battery charger or other items, don't hesitate to contact me !!
