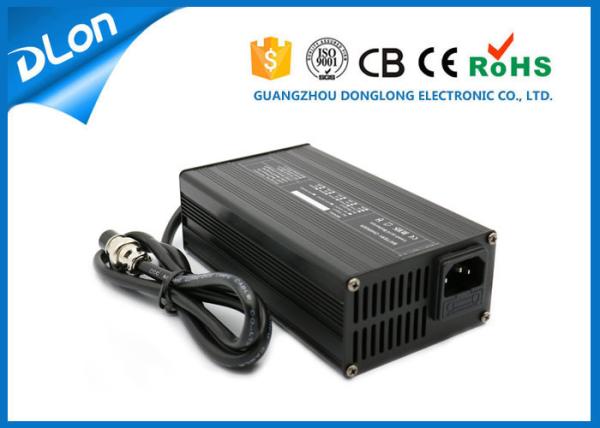

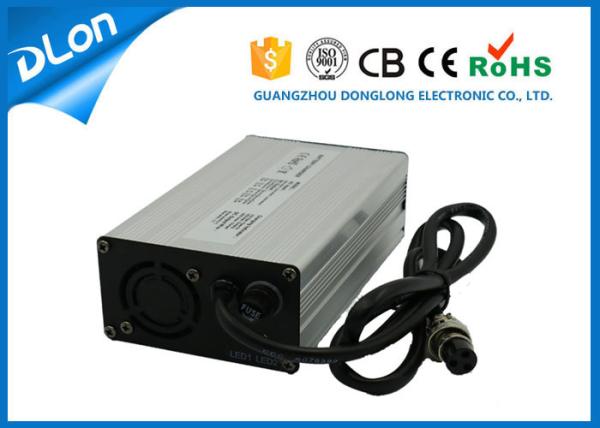

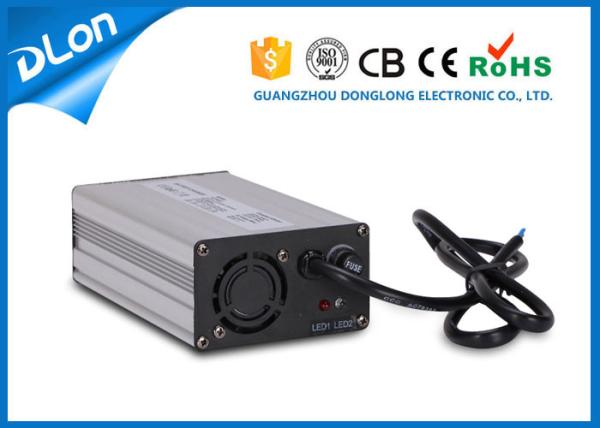

180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs
Specifications
Brand Name :
DLON
Model Number :
DL180-48V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$21.0 ~ $26.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
155*90*50mm
Weight :
1.0 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
180W
Ambient temperature :
-20 °C to +50°C
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs

Brief description :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 180 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 180W battery charger specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-MnO2 LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL180-12V 14.7V 16.8V 14.6V 8A 1.6 0.4 1.0 155*90*50
DL180-24V 29.4V 29.4V 29.2V 5A 1.0 0.25
DL180-36V 44.1V 42.0V 43.8V 4A 0.8 0.2
DL180-48V 58.8V 54.6V 58.4V 3A 0.6 0.15


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs

180W 12v 8a 24v 5a 36v 4a 48v 3a e bike battery charger for 2 wheels / three wheels e-bike with ce rohs

For more information about battery charger or other items, don't hesitate to contact me !!
