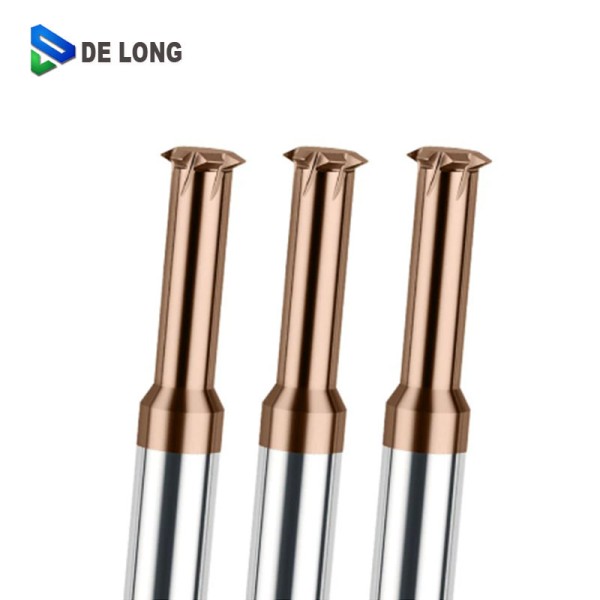

High-Precision 55 Degree Helix Angle Single-Tooth Carbide End Mill for Steel and Stainless Steel Threading
High-Precision 55 Degree Helix Angle Single-Tooth Carbide End Mill for Steel and Stainless Steel Threading
High-Precision 55 Degree Helix Angle Single-Tooth Carbide End Mill for Steel and Stainless Steel Threading
High-Precision 55 Degree Helix Angle Single-Tooth Carbide End Mill for Steel and Stainless Steel Threading
High-Precision 55 Degree Helix Angle Single-Tooth Carbide End Mill for Steel and Stainless Steel Threading
High-Precision 55 Degree Helix Angle Single-Tooth Carbide End Mill for Steel and Stainless Steel Threading
Specifications
Brand Name :
DELONG TOOL
Model Number :
Solid Carbide Single-Teeth Thread Endmill
Certification :
CE、ISO9001
Place of Origin :
CHINA
MOQ :
1pcs/package
Price :
2~40USD/PCS
Payment Terms :
T/T
Supply Ability :
100000000PCS/Year
Delivery Time :
5day
Packaging Details :
Plastic box and cartons
Helix Angle :
55 Degree
Overall Length :
1-6 inches
Material :
Carbide
Surface :
blank or printed
Suitable For :
Aluminum/Steel/Stainless Steel/Titanium/Plastic
Flute Type :
Regular/Variable
Package Quantity :
1-10 pieces
Application :
Milling
Description

Product Overview

Single-Tooth Solid Carbide Thread End Mills represents the ultimate solution for high-precision and extremely challenging threading operations. Featuring only one full cutting tooth at the business end, the tool generates threads via CNC helical interpolation cycle by cycle. This structural design reduces cutting forces to the absolute physical minimum, making it the definitive remedy for ultra-hard materials, micro-threading, and deep-hole applications where tool breakage cannot be tolerated.

High-Precision 55 Degree Helix Angle Single-Tooth Carbide End Mill for Steel and Stainless Steel Threading

Core Advantages of Single-Tooth Design

Near-Zero Breakage Risk: Unlike traditional taps or multi-tooth mills that risk jamming due to massive surface contact, the single-tooth configuration encounters minimal cutting resistance, safeguarding high-value workpieces from catastrophic tool failure.

Ultimate Universal Flexibility: As long as the thread pitch is identical, one single-tooth mill can machine any larger thread diameter. It is also uniquely capable of machining right down to the very bottom of blind holes.

Superior Thread Surface Finish: Eliminating multi-tooth harmonics (chatter), the single-point contact paired with the premium bronze nano-coating yields flawless, mirror-polished thread profiles with extremely tight dimensional tolerances.

Target Applications & Materials

Widely utilized in aerospace, medical implants, and high-end mold making industries. It excels in threading hardened steels (HRC 50–65), stainless steels, titanium alloys, superalloys, and executing delicate micro-threads (e.g., M1 to M4) in deep cavities.
