17/21 CH Yodn 2R 132W Laser Scanning Beam Light with X / Y scan and Z rotation mirror systemFor Nightclub / Show / Eve
17/21 CH Yodn 2R 132W Laser Scanning Beam Light with X / Y scan and Z rotation mirror systemFor Nightclub / Show / Eve
Specifications
Brand Name :
AOG
Model Number :
A3
Certification :
CE,ROHS
Place of Origin :
Guangdong China
MOQ :
10
Price :
negotiation
Payment Terms :
Ex works
Supply Ability :
1, 0000 PCS/week
Delivery Time :
4-5 work days
Packaging Details :
Carton case or flight case
Characters :
with X / Y scan and Z rotation mirror system
Description

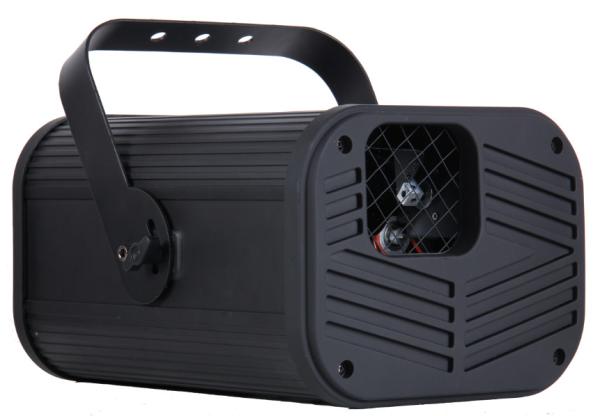

17/21 CH Yodn 2R 132W Laser Scanning Beam Light with X / Y scan and Z rotation mirror systemFor Nightclub / Show / Event


Quick Detail:

Model Number: A3
Brand Name: AOG
Type: Beam light
Lamp Power (W): 220
Input Voltage (V): AC100~240V, 50~60 Hz
Place of Origin: Guangdong China
Lamp:Yodn 2R 132W
DMX Channels: 17/21CH
Gross Weight: 8.5 kg
Package Size: 41*34*30 cm

132W Laser Scanning Light

A3 (2R)

TECHNICAL PARAMETER

Control channel: 17/21 DMX 512 channels optional

Voltage: AC100~240V, 50~60Hz

Lamp: Yodn 2R 132W lamp

Power: 220W

Life span: 6000 hours

Characters: It is a multi function effect light, with X / Y scan and Z rotation mirror system, multi effect light, beam, scanning and simulating laser effect

Effect: 3-facet rotating prism effect, light all over the sky, a variety of three-dimensional geometry effect, with shutter, dimmer and taper pattern rotating effect

Gobo wheel: 17 metal gobos plus white

Color wheel: 14 colors plus white

Beam Angel: 3 degrees

Control mode: Standard DMX512

IP Rate: IP20

Up to CE/ROHS Certificates

Light size: 35.8*26.8*19.7 cm

Carton case size: 41*34*30 cm

Net weight: 7.5 kg

Gross weight: 8.5 kg



Applications:

Disco and Club
Live performance
Stage show


Specifications :

Model No.::

A3

Power supply:

AC100~240V, 50~60 Hz

Power consumption:

220W

Rotate angle:

Pan: 540° tilt:270°

Lamp type:

Yodn 2R 132W

Control:

Auto, Master-slave, DMX512

Working environment:

indoor,-20℃~40℃

Beam angle:

3.8°

Dimension:

35.8*26.8*19.7 cm

N.W.:

7.5 kg

G.W.:

8.5 kg



Competitive advantages:

good price, reliable quality, guarantee of delivery
