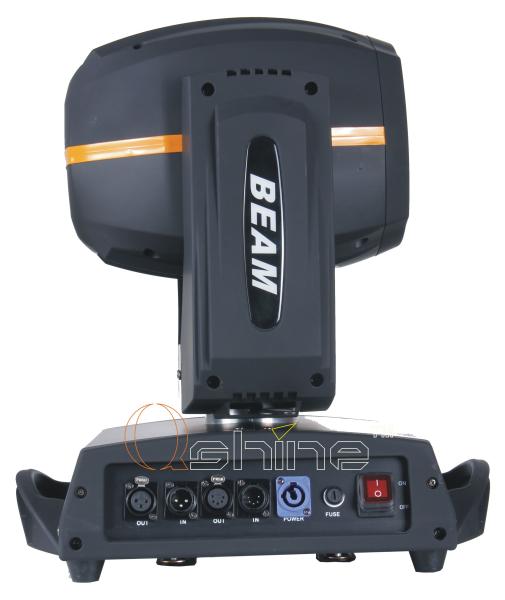

17R Yond Lamp Beam Moving Head Light For Nightclub / Show / Event

Quick Detail:

Model Number: Q-2014

Brand Name: AOG

Type: Beam light

Lamp Power (W): 350

Input Voltage (V): AC100~250V, 50~60 Hz

Place of Origin: Guangdong China

Lamp: Yodn 17R 350W

DMX Channels: 16CH

Gross Weight: 20 kg

Package Size: 50*40*53 cm

New Characters

With upgrade mainboard; adopting color LCD touch screen (2.8 inches) in display board; random replacement between English and Chinese; simple and clear; can be customized brand name in display; words in the display can change direction according to the products are heads up or upside down; easy to operate

Description:

Control channel: 16 DMX 512 channels

Voltage: AC100~250V, 50~60 Hz

Life span: 2000 hours

Lamp: 17R Yodn 350W lamp

Scan: Pan: 540°, Tilt: 270°

Largest rotating speed: Pan: 2.45s, Tilt: 1.3s

Precise scan: Pan: 0.008°, Tilt: 0.004°

Color wheel: one color wheel, 14 plugged colors plus white, with half color and rainbow effect

Gobo wheel: one fixed gobo wheel, 17 plugged metal gobos plus white, with high speed gobo rotation effect

Prism: one rotating eight-prism, atomization effect

Strobe: strobe frequency can be 15 times / second

Light: 59760K with distance of 20 meters

Flux: 7950 lumens

Focus: electronic linear focus at 0°-3.8°

Color temperature: 8000 LX

Automatic Pan and Tilt repositioning system if accidentally knocked out of place and with correct positioning function

Available for setting macro instruction in advance

Controller reset function, with automatic switch

Electronic monitoring and the position error correction

Built-in cooling monitoring system

DMX channel level monitoring

Automatic data transmission fault diagnosis system

Up to IP20 degree of protection

Characteristics: light, highlighted, fast, and mute

Light size: 47*37*50 cm

Carton case size: 50*40*53 cm

Net weight: 18 kg

Gross weight: 20 kg

Applications:

Disco and Club

Live performance

Stage show

Specifications :

Competitive advantages:

good price, reliable quality, guarantee of delivery
