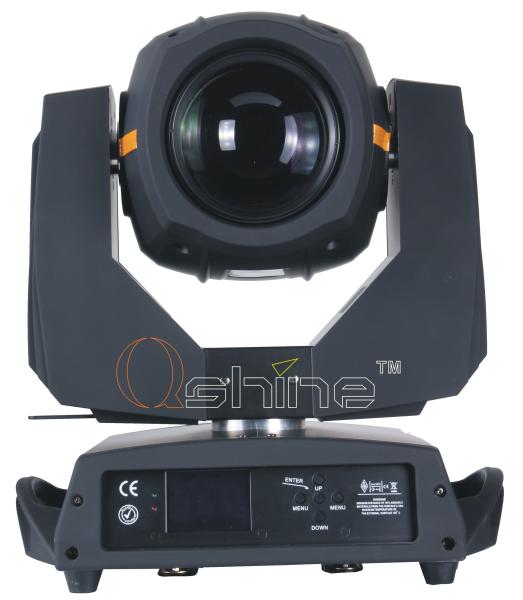

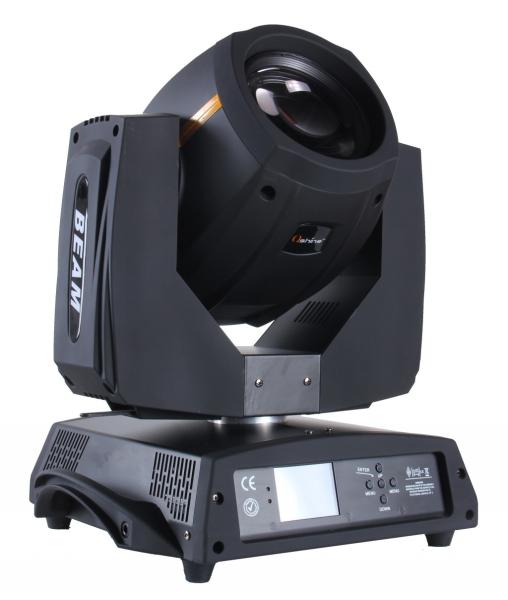

LCD Touch Screen led moving head light 16CH / 20CH 7R Yodn Lamp With Gobo Rotation Effect

Quick Detail:

Model Number: Q-2012C

Brand Name: Qshine

Type: Beam light

Lamp Power (W): 189

Input Voltage (V): AC100~250V, 50~60 Hz

Place of Origin: Guangdong China

Lamp: Yodn 7R 230W

DMX Channels: 16CH

Gross Weight: 18.9 kg

Package Size: 45.5*42*55 cm

New Characters

With upgrade mainboard; adopting color LCD touch screen (2.8 inches) in display board; random replacement between English and Chinese; simple and clear; can be customized brand name in display; words in the display can change direction according to the products are heads up or upside down; easy to operate

Description:

1, 20CH Special Function: Double focus, containing eight prism focus

2, Control channel: 16 DMX 512 channels

3, Voltage: AC100~250V, 50~60 Hz

4, Life span: 2000 hours

5, Lamp: 5R Yodn lamp

6, Scan: Pan: 540°, Tilt: 270°

7, Largest rotating speed: Pan: 2.45s, Tilt: 1.3s

8, Precise scan: Pan: 0.008°, Tilt: 0.004°

9, Color wheel: one color wheels, 14 plugged colors plus white, with half color and rainbow effect

10, Gobo wheel: one fixed gobo wheel, 17 plugged gobos plus white, with high speed gobo rotation effect

11, Prism: one rotating eight-prism, atomization effect

12, Strobe: strobe frequency can be 15 times / second

13, Light: 59760K with distance of 20 meters

14, Flux: 7950 lumens

15, Focus: electronic liner focus at 0°-3.8°

16, Color temperature: 8000 LX

17, Automatic Pan and Tilt repositioning system if accidentally knocked out of place and with correct positioning function

18, Available for setting macro instruction in advance

19, Controller reset function, with automatic switch

20, Electronic monitoring and the position error correction

21, Built-in cooling monitoring system

22, DMX channel level monitoring

23, Automatic data transmission fault diagnosis system

24, Up to IP20 degree of protection

25, Characteristics: light, highlighted, fast, and mute

26, Net weight: 16 kg

27, Gross weight: 18.9 kg

Applications:

Disco and Club

Live performance

Stage show

Specifications :

Competitive advantages:

good price, reliable quality, guarantee of delivery
