Specifications
Brand Name :
OEM
Model Number :
OKY3259-2
Certification :
RoHS
Place of Origin :
Guangdong China (Mainland)
MOQ :
10Piece/Pieces
Price :
USD3.72-4.23/piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100000Piece/Pieces per Day
Delivery Time :
1-3 workdays after payment
Packaging Details :
Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS)
Color :
As Picture
Voltage range :
1.71 V to 3.6 V
N.W :
5g
Delivery time :
1-3 days
Condition :
Brand New and Original
User :
Students,Engineers etc.
Warranty :
2 years
Factory :
Yes
Description

High Precision Atmospheric Pressure Sensor Module GY-BME280-3.3

Description:

*ME-BME280 is a Breakout Board with a Bosch Sensortec ME280 temperature, humidity & pressure sensor.
*Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
*The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)

Specification:

Supply voltage VDD main supply voltage range 1.71 V to 3.6 V
VDDIO interface voltage range 1.2 V to 3.6 V
Operating temperature range -40~+85 °C
Current consumption 1.8 uA @ 1 Hz humidity and temperature;
2.8 uA @ 1 Hz pressure and temperature;
3.6 uA @ 1 Hz humidity, pressure and temperature;
0.1 uA in sleep mode.

Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)

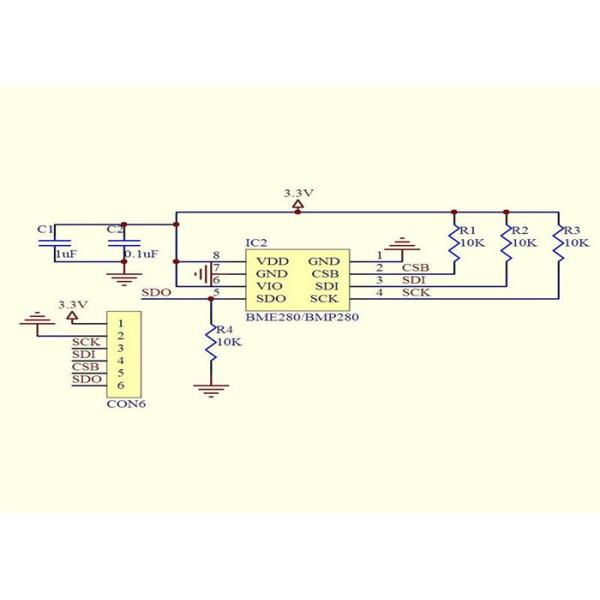

Circuit Diagram:

BME280 High Precision Arduino Sensor Module 1.2 V to 3.6 V Voltage For Atmospheric Pressure
