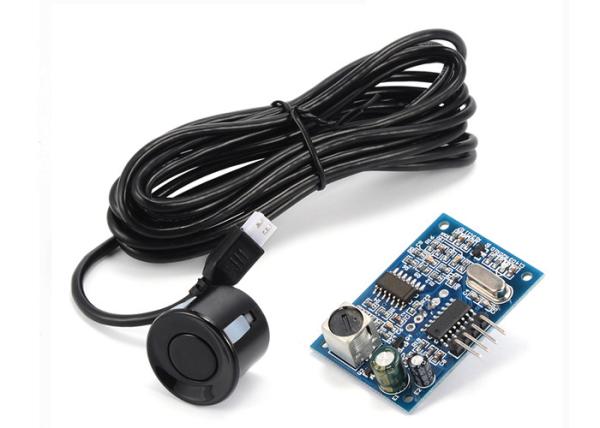

Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino
Specifications
Brand Name :
Oky Newstar
Model Number :
OKY3265
Certification :
RoHS
Place of Origin :
Guangdong China (Mainland)
MOQ :
10pieces/pieces
Price :
$4.97-5.65/Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per day
Delivery Time :
3-5 workdays after payment
Packaging Details :
1 pcs Motor Speed Control Switch Controller
Product Name :
JSN-SR04T Ultrasonic Module
Total current work :
30mA
Quiescent current :
5mA
Operating voltage :
DC 5V
Farthest distance :
4.5m
Warrnty :
24 months
Description

JSN-SR04T Ultrasonic Module Distance Measuring Transducer Sensor IO Port Waterproof for Arduino

Description:


1.Operating voltage: DC 5V
2.Quiescent current: 5mA
3.Total current work: 30mA
4.Acoustic emission frequency: 40khz
5.Farthest distance: 4.5m
6.Blind: 25cm
7.Wiring: + 5V (positive power supply)
Trig (control side) RX
Echo (the receiver) TX
GND (negative)
8.Resolution: about 0.5cm
9.Angle: less than 50 degrees
10.Working temperature: -10 ~ 70 Celsuis
11.Storage temperature: -20 ~ 80 Celsuis

Package:

Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)

Competitive Advantage:

1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment

Ultrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For ArduinoUltrasonic Module Distance Measuring Transducer Sensor IO Port JSN-SR04T For Arduino

FAQ:

1. What is the delivery time?
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable.

2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once and then we make the judgement for the issue.

3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.You can return back to us, we will refund your full payment.

4.what is the warranty?
1-3 months to replace new items for free, 1-2 years repairing free according to different products.

5.Do you accept OEM design?
Yes,we do.We can design according to your requirement.

6.Are you a manufacturer?
Yes,we are.
