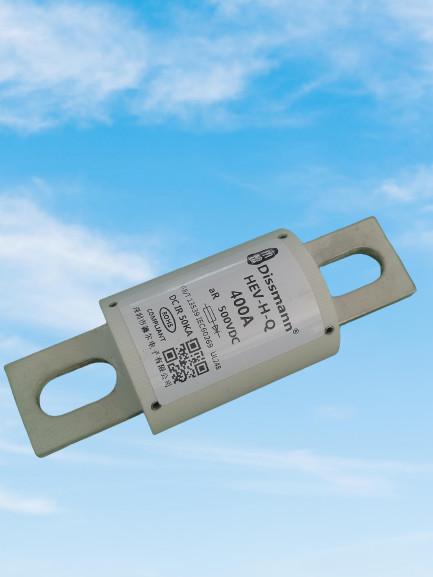

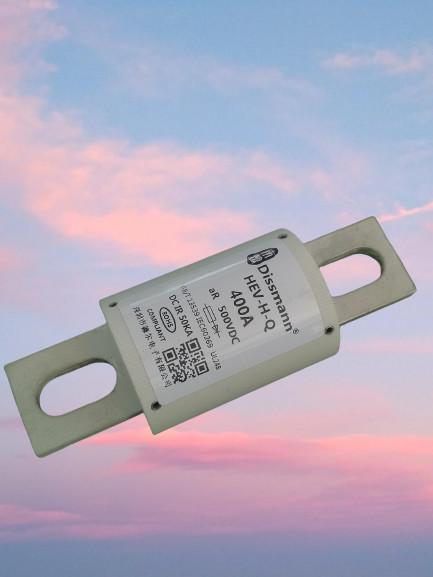

Ul248 Energy Storage Battery Protection Fuse for EV Charger
Ul248 Energy Storage Battery Protection Fuse for EV Charger
Ul248 Energy Storage Battery Protection Fuse for EV Charger
Ul248 Energy Storage Battery Protection Fuse for EV Charger
Specifications
Brand Name :
Dissmann
Model Number :
HEV-H-Q
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Rated Current :
5A-800A
Rated Voltage :
AC/DC500V
Breaking Capacity :
AC100KA/DC50KA
Type protection :
aR
Application :
battery,EV charger
Related standard :
UL248-20、ISO8820、JASO-D622、RoHS
Keyword :
EV charger fuse
Description

UL248 HEV series fuse for battery protection

Product type of the HEV fuse

Model Rated Current I2t(A2s) Power dissipation Size code Install
HEV-H-Q-35 35A 33 145 8.5 HZ1 Mounting Bolt M8 recommended torque 11N·m
HEV-H-Q-40 40A 74 315 8
HEV-H-Q-45 45A 100 430
HEV-H-Q-50 50A 130 650 8.5
HEV-H-Q-60 60A 200 880 10
HEV-H-Q-70 70A 210 900 10.5 HZ2
HEV-H-Q-80 80A 300 1360 12.5
HEV-H-Q-90 90A 350 1500 15.5
HEV-H-Q-100 100A 460 1950 17.5
HEV-H-Q-125 125A 750 3430 26 HZ3
HEV-H-Q-150 150A 1000 4450 31
HEV-H-Q-175 175A 1400 6100 36
HEV-H-Q-200 200A 1800 8300 41
HEV-H-Q-225 225A 4600 23000 39 HZ4 Mounting Bolt M10 recommended torque 20N·m
HEV-H-Q-250 250A 6250 32100 41
HEV-H-Q-275 275A 7800 40000 46
HEV-H-Q-300 300A 9600 49000 52
HEV-H-Q-325 325A 13500 63000 54
HEV-H-Q-350 350A 14000 72000 59
HEV-H-Q-400 400A 18500 95500 66
HEV-H-Q-450 450A 24000 125000 75 HZ5
HEV-H-Q-500 500A 28500 147000 84
HEV-H-Q-600 600A 40500 203000 108
HEV-H-Q-700 700A 54000 295000 122 HZ6 Mounting bolt M12 recommended torque 28N·m
HEV-H-Q-800 800A 75000 406000 130
HEV-H-Q-1000 1000A 90000 430000 146 HZ7
HEV-H-Q-1200 1200A 120000 590000 180

Basic information of the HEV fuse

This HEV series fuse available in ratings of 5A-800A,rated voltage up to AC/DC500V,breaking capacity is AC100KA,DC50KA at AC/DC500V,type of protection is aR.The dimension and performance conform to UL248,GB13539,IEC60269.


Product characteristic of 400 amp HEV fuse

Model Rated Current(A) 100% voltage drop (mv) Size Code Installation
HEV-H-Q-400 400A 279 HZ4 Install Bolt M10,
Recommend Torque: 20N.m

Dimension of the 400 amp HEV fuse

Ul248 Energy Storage Battery Protection Fuse for EV Charger

Ul248 Energy Storage Battery Protection Fuse for EV Charger

FAQ

Question:How long is your product life?

Answer:The life of a fuse is 3-5 years under normal power-on condition.
