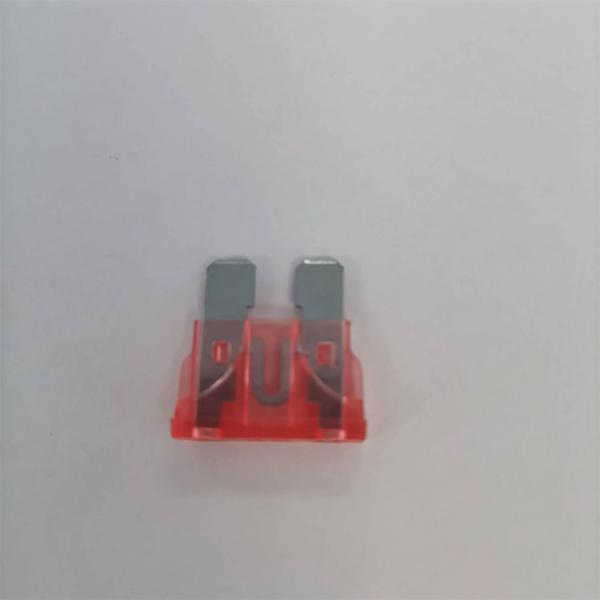

Automotive Blade UL Certified ATC ATO Fuse Low Voltage
Automotive Blade UL Certified ATC ATO Fuse Low Voltage
Specifications
Brand Name :
Dissmann
Model Number :
DFN-A-10
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000pcs
Delivery Time :
5-8 days
Packaging Details :
Standard Carton Packing
Rated Voltage :
DC32V
Rated Current :
1A-40A
Type Protection :
Fast-acting
Breaking Capacity :
DC1000A
Size :
Medium Automotive Blade Fuse
Description

Dissmann® UL Certified DC32V Automotive Blade Fuse Low Voltage ATC Fuse

Automotive Blade UL Certified ATC ATO Fuse Low Voltage

Specifications of the DFN-A series Automotive Blade Fuse:

1. Size of the automotive balde fuse:

Automotive Blade UL Certified ATC ATO Fuse Low Voltage Automotive Blade UL Certified ATC ATO Fuse Low Voltage

2. DFN-A series fuse model rated voltage is DC32V, it's classification according to rated current :

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

mV

Pigment
DFN-A DFN-A-1 1 0.4 174 (Black)
DFN-A-2 2 1.5 140 (Gray)
DFN-A-3 3 6.3 137 (Violet)
DFN-A-4 4 13 135 (Pink)
DFN-A-5 5 25 125 (Tan)
DFN-A-7.5 7.5 56 115 (Brown)
DFN-A-10 10 110 110 (Red)
DFN-A-15 15 295 102 (Blue)
DFN-A-20 20 480 96 (Yellow)
DFN-A-25 25 1000 90 (Clear)
DFN-A-30 30 1460 86 (Green)
DFN-A-35 35 2205 88 (Dark green)
DFN-A-40 40 3200 95 (Orange)

3.DFN-A series fuse Current Characteristic curve of the fuse:

Automotive Blade UL Certified ATC ATO Fuse Low Voltage

4.Dissmann® automotive blade fuse, include mini size,medium size,large size:

Automotive Blade UL Certified ATC ATO Fuse Low Voltage

6.Other Fuses and fuse holders in our Factory:

Automotive Blade UL Certified ATC ATO Fuse Low Voltage

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

Automotive Blade UL Certified ATC ATO Fuse Low Voltage

8.Dissmann® fuse Factory Display:

Automotive Blade UL Certified ATC ATO Fuse Low Voltage

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
