Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV
Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV
Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV
Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV
Specifications
Brand Name :
Dissmann
Model Number :
HEV-J-Q
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C/TT
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Color :
White
Rated Current :
5A-800A
Rated Voltage :
1000VDC
Breaking Capacity :
DC30KA
Category :
aR
Keyword :
Electric Vehicle fuse
Application :
pure electric vehicles and hybrid electric vehicles
Description

Any datasheet&specification,pls feel free to contact by email:holly@delfuse.com or whatsapp me:+8618813915908

DC1000V HEV series high breaking capacity fuses supplier

Product details of the HEV series fuse

This HEV series fuse is round tube bolt-connected fuses,can be line in circuit of DC1000V,rated current range of 5A-800A,breaking capacity up to DC30KA.Its tube material is different from the EV series. HEV is made of glass fiber and EV is ceramic material,which have the characteristics of small size, fast blowing, low I2t, and high reliability.

Application of the HEV series fuse

It is suitable for applications in vibration environments such as rail transit and motor vehicles.

Short circuit protection fuses especially for pure electric vehicles and hybrid electric vehicles.

1000V DC fuse specially designed for pure electric vehicle and hybrid vehicle power battery.

Provide fuse bases specially customized for harsh automotive environments.

Product dimension of the HEV series fuse

Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV

Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HF1 124 25 78 100 109 9 18 4 13.5
HF2 117 33 78 93 100 9 22 5 12.5
HF3 139.5 38 83.5 99.5 120 10.5 25 6 20.7
HF4 146.5 50 89.5 106 126.5 10.5 38 6 20.7
HF5 197.5 63 89.5 123.5 162.5 13.5 50 10 33

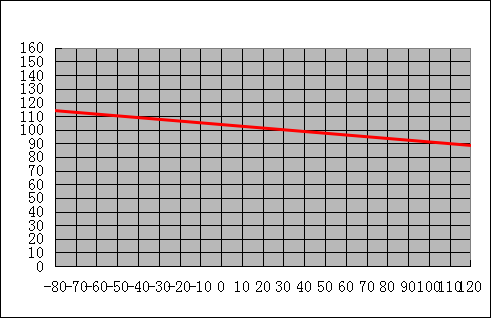

Current characteristic curve

Bolt On High Voltage Automotive Fuse DC30KA DC 300 Amp HEV

FAQ

Question:Does this 1000VDC Fuse have a base?

Answer:Now this 1000VDC fuse has no base, only 250A has a base.
