Specifications
Price :
as demand
Single gross weight :
0.200 kg
Model Number :
D100 D500 D700
Total Cable Length :
2.5M
Patient Size :
Adult/Pediatric
MOQ :
1pcs
Delivery Time :
3-7 work days
Lead Color Coding :
AHA/IEC
Lead Cable Color :
Gray
Payment Terms :
T/T,Western Union
Packaging Unit :
1pc
Connector Distal :
Round, 45° angled, 6-pin Connector, Keyed
Packaging Type :
Bag
Cable material :
Germany Huntsman TPU 5040
Safety standard :
EN 149 -2001+A1-2009
Supply Ability :
1000pcs / day
Connector Proximal :
Pinch/Grabber,snap
Place of Origin :
china
Sterile :
No
Lead Cable Material :
Outer is TPU, Inner is Tin-plated Copper Conductor
Warranty :
12 months
Category :
ECG
Certification :
CE,ISO
Brand Name :
Mediana
Disinfecting Type :
alcohol disinfection
Packaging Details :
1pcs / bag
Description

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Product Overview

The Medical IEC Snap 3-Lead ECG Cable is a clinical-grade diagnostic solution specifically engineered for compatibility with Mediana D100, D500, and D700 Patient Monitors. Featuring a secure 13-pin monitor connector, this high-performance cable provides stable and accurate 3-lead cardiac tracking. Designed according to the IEC (European standard) color code and equipped with reliable Snap terminations, it is an ideal choice for intensive care units, emergency wards, and routine patient monitoring environments.

Key Features

  • Precise Mediana Compatibility: Engineered to fit perfectly into the 13-pin input socket of Mediana D100, D500, and D700 monitors, ensuring an uninterrupted signal and a secure connection.

  • Streamlined 3-Lead Setup: Optimized for rapid and efficient 3-lead EKG placement, providing essential cardiac waveforms while minimizing patient preparation time.

  • IEC Color Coding: Adheres strictly to the International Electrotechnical Commission (IEC) standard (Red, Yellow, Green) for easy, error-free electrode positioning by medical staff.

  • Secure Snap Terminations: Heavy-duty Snap ends attach firmly to standard clinical ECG electrodes, minimizing accidental displacement and reducing motion artifacts.

  • Premium Signal Protection: Integrated low-noise shielding technology reduces electromagnetic interference (EMI) from surrounding medical equipment, ensuring clear and accurate EKG traces.

  • Durable Medical TPU Jacket: Encased in a flexible, biocompatible, and latex-free TPU coating that withstands continuous bending, pulling, and repeated sterilization with clinical disinfectants.

Parameter Specification
Compatibility Mediana D100, D500, D700 Patient Monitors

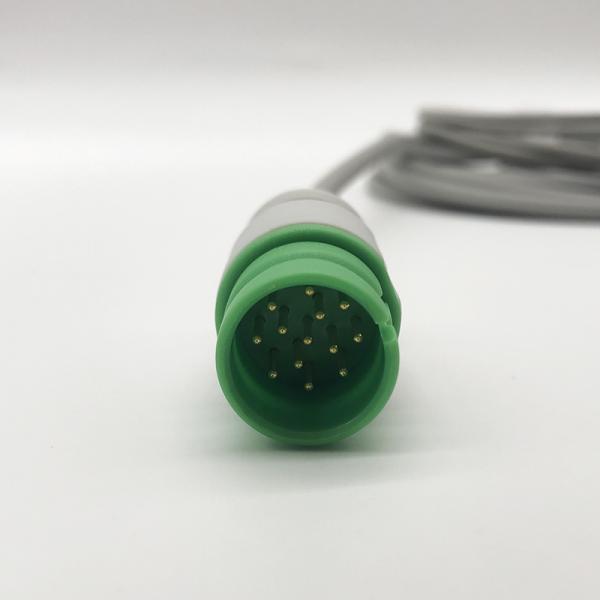

Connector Type 13-Pin
Lead Configuration 3-Lead
Color Code Standard IEC (European Standard)
Patient-End Interface Snap End
Cable Material Medical-Grade TPU (Latex-Free, Biocompatible)
Usage Type Reusable
Certifications CE, ISO 13485 Compliance

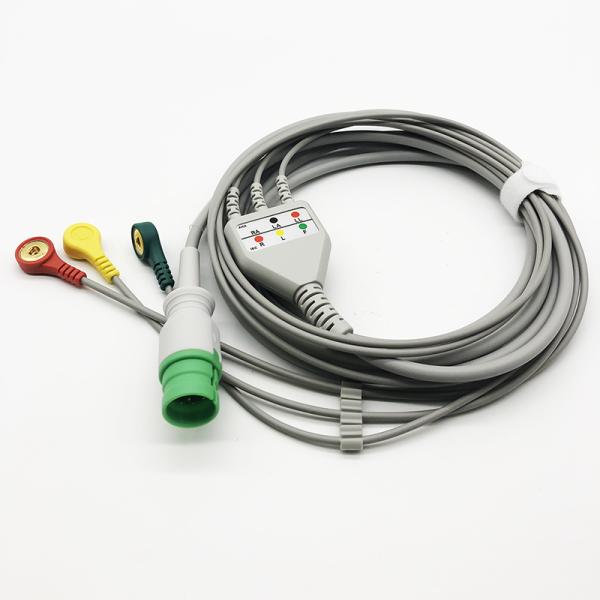

Product Photo:

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Each ECG lead wires will be inspected to confirm it is a good performance.

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Warranty:

1. In-Warranty Period: we will give the replacement for all quality problems in time under normal conditions
of use.

2. If the new items can not work with your devices, we will send new replacement or refund in time.

Shipment:

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Factory Photos:

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Medical IEC Snap 3 Lead ECG Cable 13 Pin Connector Fit Mediana D100 D500 D700 Patient Monitor

Our Services:

1. We are the factory,the price can be more competitive,Welcome OEM/ODM.

2. Sample order, develop new products

3. We will reply you for your inquiry in 24 hours,If you have any questions or problem we will offer the solve way for you.

4. After sending, we will track the products for you, until you get the products.

When you got the goods, please test them. And we'd like get a feedback from you.
