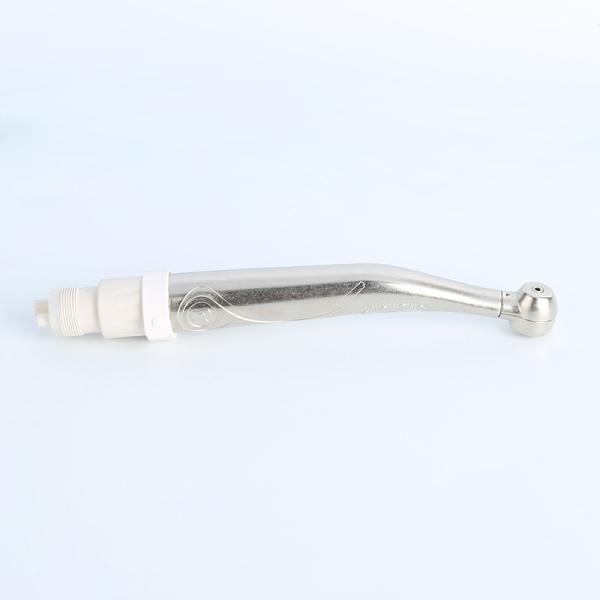

45 Degree Angle High Speed Air Turbine Handpiece 4 Holes 0.2~0.3Mpa
45 Degree Angle High Speed Air Turbine Handpiece 4 Holes 0.2~0.3Mpa
Specifications
Brand Name :
HPDOVE DENTAL
Model Number :
YCX-25S-MM-2
Certification :
CE
Place of Origin :
Zhejiang，China (Mainland)
MOQ :
1Piece/Pieces
Price :
USD0.2-4.5Piece/Pieces
Payment Terms :
L/C,, D/P, T/T, Western Union
Supply Ability :
30000Pieces/Month
Delivery Time :
5-8 work days
Packaging Details :
Carton box
Name :
Dental 4 holes Dental unit spare part 45 degree angle high speed dental handpiece
Brand :
HPDOVE
Material :
Metal
Rotating Speed :
≥330,000r/min
Noise :
≤65dB
Torsion :
≥0.20N.cm
Clamping force :
≥30N
Radial runout :
≤0.02mm
Weight :
56g
Description

4 holes Dental unit spare part 45 degree angle high speed dental handpiece

Technical data:

Air pressure at the back end of HP 206-231KPa(2.1-2.35kgf/cm2)
Air pressure at the gauge in dental unit 277-316Kpa(2.8-3.2kgf/cm2)
Water pressure 198Kpa(2kg)
Light brightness 25500lux
Power 22W(standard); 25W(torque)
Rotation speed 300,000~350,000rpm(Torque); 350,000~420,000rpm(Standard)
Head height 13.1mm(Torque)/13.0mm(Standard)
Head diameter Φ12.5mm(torque)/ Φ10.8mm(standard)



Product Description


Technical:
1. Torque push button high speed handpiece, clean head,anti-retraction system
2. Working air pressure: 0.2~0.3Mpa
3. Water pressure:198Kpa
4. Single water spray
5. Speed: 300,000RPM
6. Bur applicable:Φ1.59~1.60mm
7. Noise: ≤68dB
8. Inner tube materials: Stainless steel
9. Connector: 4 holes


45 Degree Angle High Speed Air Turbine Handpiece 4 Holes 0.2~0.3Mpa

45 Degree Angle High Speed Air Turbine Handpiece 4 Holes 0.2~0.3Mpa

45 Degree Angle High Speed Air Turbine Handpiece 4 Holes 0.2~0.3Mpa

45 Degree Angle High Speed Air Turbine Handpiece 4 Holes 0.2~0.3Mpa

Product Merits of disposable dental handpiece
1. Competitive Price
Compare with the traditional turbine handpiece, it has great price advantage, and each technoical indicators have reached the National standard, can be used safely.
2.Easy Doctors
Solve the problems of sterilization of handpiece and high cost of sterilization and maintenance. Achieving the requirements of Health sector "Just for one person(patient)", imporved the public trust of dental organizations.
3.Reassured Patients
Avoid cross infection of Hepatitis B, AIDS and other infectious disease in clinical treatment.
4.Technological Precedence
A domestic initiative, has made a number of national patents.
5.Comfortable Handling


More Products

45 Degree Angle High Speed Air Turbine Handpiece 4 Holes 0.2~0.3Mpa

Why Choose Us?



We are committed to providing you with first-class service that delivers best-in-class care for your teeth, creating humanity’s comfortable experience, of therapy, with zero risk of iatrogenic infection.
That's why we worked hard for many years and finnaly promoted top quality handpieces.
Every parts of handpiece, we use high quality materials as we would like to offer these best quality items to our customers!
