Specifications
Brand Name :
MPI
Model Number :
V-106
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000/DAY
Delivery Time :
3 DAYS
Packaging Details :
EXPORT PACKAGE
Tidal volume :
50~1500ml
Color :
Grey
Display :
3.5"LCD Display Screen
Respiration mode :
IPPV
Li-battery :
2200mAH
Product name :
Auto CPAP Machine ventilator
Description

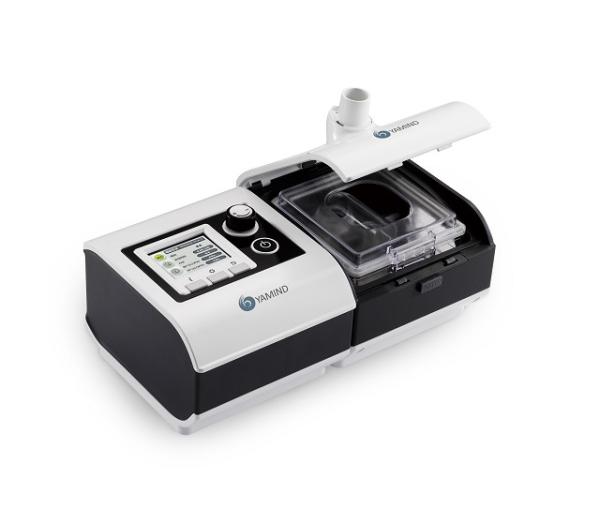

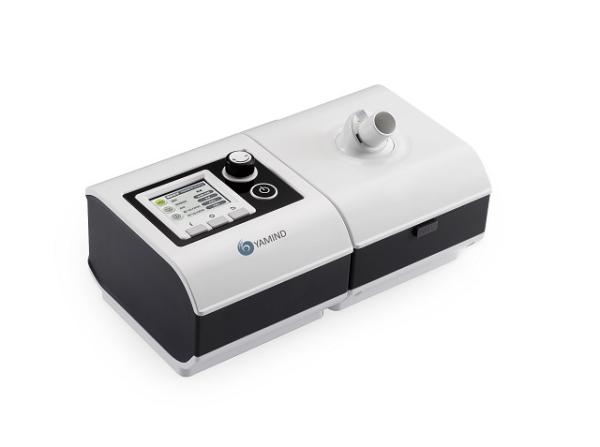

BiPAP Ventilator Machine Better than Normal Hospital Medical CPAP Sleep Apnea Therapeutic Devices

Application:

The BiPAP non-invasive ventilator is suitable for medical institutions and home for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction, carbon dioxide retention, post-operation respiratory support, other respiratory treatment.

Trust Points

  • Simplicity: easy to useand operation.
  • Choice:design for medical institutions and home using.
  • Patient Centered Ventilation:Various ventilation model from conventional ventilation to advanced modes, 6 modes: CPAP; Auto; S; T; ST30; TVV-APCV.
  • Designed and manufactured by VentMedwith over 15 years experience in this
  • Flexibleconfigurations to suit your
  • International standard and advanced technology suitable for wide range use.
  • Compact interface and easy easy button operation bring youbetter operating experience.
  • Over 15,000units of DS series installed over 50 countries in last 3 years.

Features

  • 8’’TFT Screen,show airflow and pressure real-time waveform on screen.
  • TVV-APCV mode for critical patients who has rapid and shallow breathing (high frequency breathing) and low tidal volume.It mainly aims to get the targeted tidal volume, commonly used for hospital
  • EPR(expiratorypressure relief), Auto-Leak Auto-Altitude compensation, Independent airflow channel.
  • Inspirate Triggle/ Expirate Level / Inspirate Sensitivity: 1-5 level adjustable
  • Parameters lock: all the parameters cannot be changed after settingand self-lock function, keep safety
  • Multiple parameters monitoring interface,make every parameter clear, let users know the patient conditions in all aspects.
  • Advanced power management control technology.self-check before running, eliminate system mistake.
  • With lots of alarming,reminding and protection functions.
  • Stable and low noise,create quiet work environment for doctors.
  • Includinghumidifier, water tank, power lead, travel bag, user manual, air filter, SD Card, full face mask, air tubing.

Working Mode CPAP, Auto, S, T, ST
Sound <28db
Screen 2.8 inch color TFT, 320 x 240
Pressure Range 4-30cmH2O
IPAP 4-30cmH2O
EPAP 4-20 cmH2O
Data Storage SD Card
Power Supply Input 100-240V, 50-60Hz, 1-2A; Output +24V, 2.5A 100-240V, 50-60Hz, 1-2A; Output +24V, 2.5A
DC Voltage 24VDC, 2.0A maximum
Over-Temperature Protection Motor stop working automatically, buzzle ring 4 times
Lock function Yes
Screen Auto Sleep Auto sleep in 15 minutes, press any button to highlight screen
Backup Rate 5-50/min, adjustable
I/E 10-80%
Ramp Item 0-60min adjustable 1min/Step
Inspirate Triggle 1-5 level
Expirate Level 1-5 level
Inspirate Sensitivity 1-5 level
Water Capacity 220ML max
Humidifier Level Integrated Heated, 0-5 level
Alert Power off, mask off

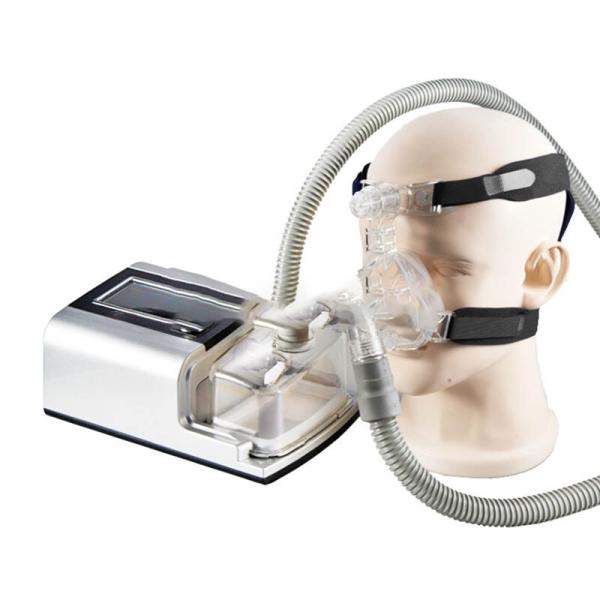

BiPAP Portable Medical Ventilator Better Hospital CPAP Sleep Apnea Therapeutic Devices
