Specifications
Brand Name :
RGH
Model Number :
RT109006A
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
3pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
3.5kk
Delivery Time :
3-5weeks
Packaging Details :
Standard Exportation Package
Size :
1.09inch
Resolution :
240（RGB）X240
LCD Type :
Transmissive TFT
Viewing Direction :
ALL o’clock
LCM Outline Dimension :
34.7(H) X 35 (V) X3.6(T) mm
Active area :
27.79(H) X27.79(V) mm
Backlight Type :
LED
Operating temperature :
-20℃~70℃
Storage temperature :
-30℃~80℃
Driving IC :
GC9A01
Brightness :
400cd/m2
color :
262k
Description

Product Specification

Size 1.09inch
Resolution
240(RGB)X240
Backlight Type LED
LCD Type Transmissive TFT
Driving IC
GC9A01
Brightness 400cd/m2
Operating temperature
-20℃~70℃
Active Area
27.79(H) X27.79(V)mm

Interface Pin Definition

NO. Symbol Level Function
1 GND Ground.
2 NFC1
3 NFC2
4 NFC3
5-6 GND Ground.
7 LEDK LED,cathode.
8 LEDA LED,anode.
9 GND Ground.
10 WRIA0 command selection pin in 4-line serial interface
11 SCL This pin is used to be serial interface clock
12 RESET Reset signal.
13 GND Ground.
14 SDA SPI interface input/output pin.
15 CS -Chip selection pin
16 GND Ground.
17 VDD 2.8V(typ) Power supply.
18 TP-RESET TP RESET PIN
19 TP-VCC Power setting
20 TP-INT TP INT
21 TP-SDA TP SDA
22 TP-SCL TP SCL
23 TP-GND Ground.
24 GND Ground.

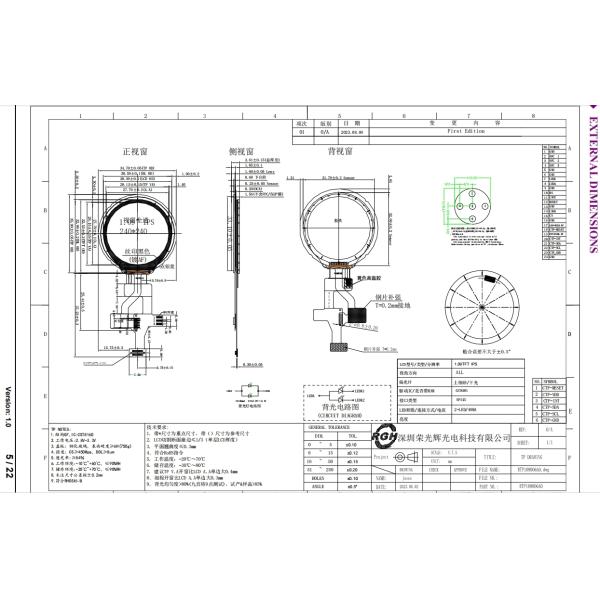

External Dimensions

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

1.09 Inch IPS TFT 400cd/M2 Lumination GC9A01 driver IC Circular Lcd Display

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

6. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

7. What shipping ways do you support?

A: We can consult with it.
