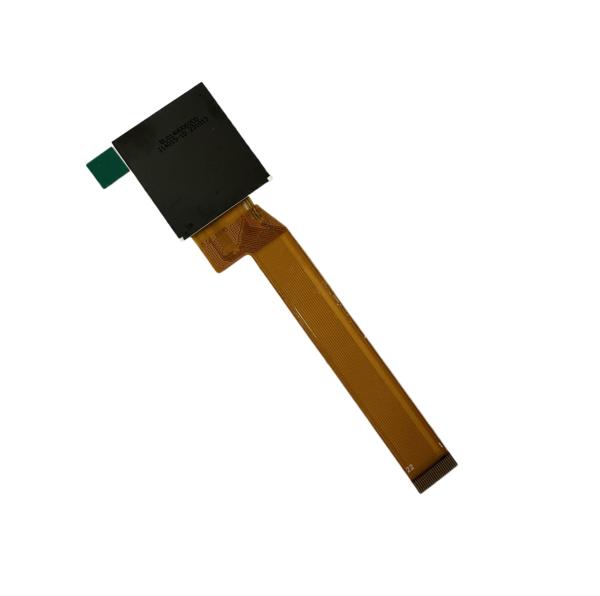

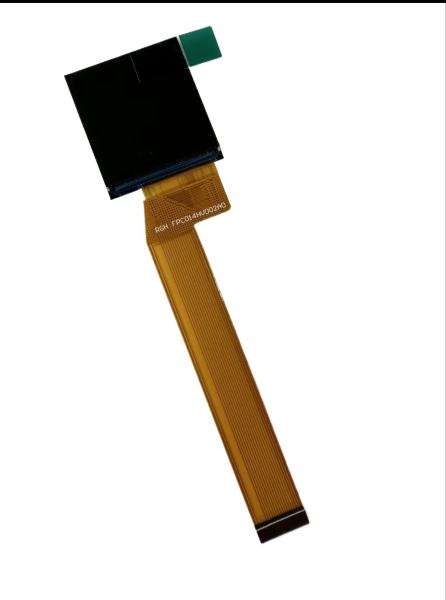

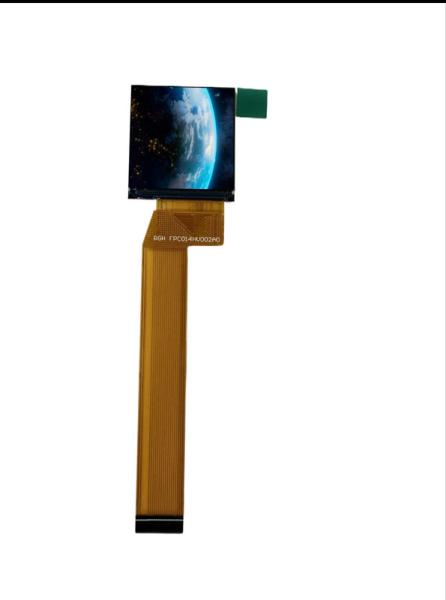

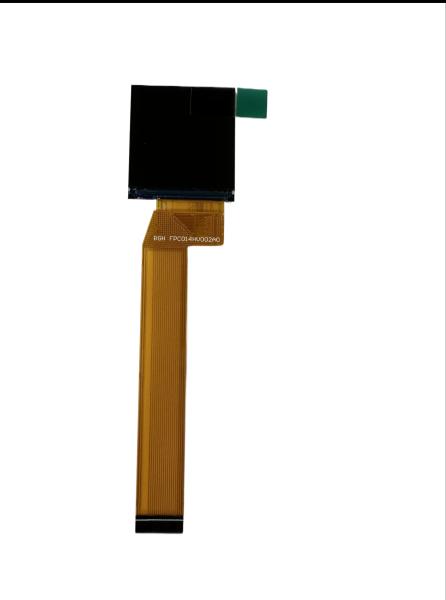

LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen
Specifications
Brand Name :
RGH
Model Number :
RT14HV002C
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
3PCS
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
3.5kk
Delivery Time :
3-5weeks
Packaging Details :
Standard Exportation Package
Size :
1.4 inch
Resolution :
320（RGB）X320
Colors :
262K
Active area :
24.96(H) X24.96 (V) mm
Storage Temperature :
-30°C to 80°C
Operating temperature :
-20℃~70℃
Backlight Type :
LED
Driving IC :
ST7365
Number Of Pixels :
320（RGB）X320
Brightness :
750 cd/m²
Viewing Angle :
All O'clock
Outline Dimensions :
27.50 (H) X30.64(V) X1.51(T) mm
Response time :
30ms
Contrast ratio :
900:1
Interface :
MCU
Weight :
TBD
Description

LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized ScreenLCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized ScreenLCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen

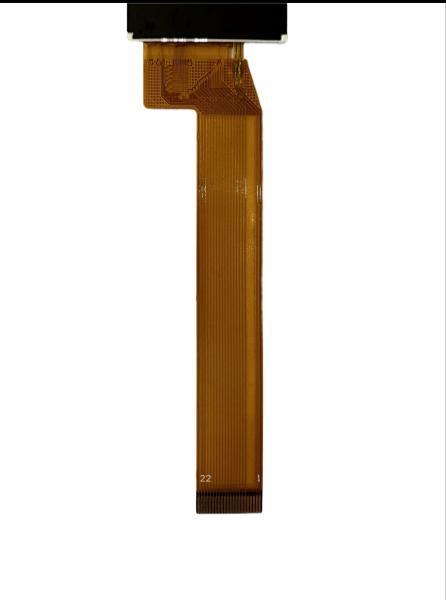

NO. Symbol Leve Function
1 LEDA LED,anode
2 LEDK LED,cathode
3-5 NC NC
6 VCC 2.8V system voltage
7-14 DB7-DB0 data bus.
15 RD -Read enable in 8080 MCU parallel interface
16 WR -Write enable in MCU parallel interface
17 RS -Display data/command selection pin in parallel
interface
18 CS -Chip selection pin
19 TE TE
20 RESET This signal will reset the device and it must be
applied to properly
21-22 GND Ground

LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen

LCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized ScreenLCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized ScreenLCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized ScreenLCD Screen 1.4 Inch Driving IC ST7365 TFT Medical Digital Consumer Electronics For Small And Medium-Sized Screen

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the CTP?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 20 inch TFT LCD display we can provide.

7. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

8. What shipping ways do you support?

A: We can consult with it.
