The 2.7-inch TFT LCD display module offers a high-quality visual experience in a compact square format, ideal for modern smart devices, wearables, and compact control systems. With a resolution of 320(RGB) × 320 pixels and an all-angle viewing capability (All O’Clock), this display ensures consistent brightness and color fidelity from every direction.

The module features a 48.96(H) × 48.96(V) mm active area within a 71.20(H) × 71.20(V) × 3.44(T) mm outline, providing an efficient screen-to-body ratio in a square form factor. A brightness level of 630 cd/m², powered by a 6-LED backlight system, ensures clear visibility even in well-lit environments.

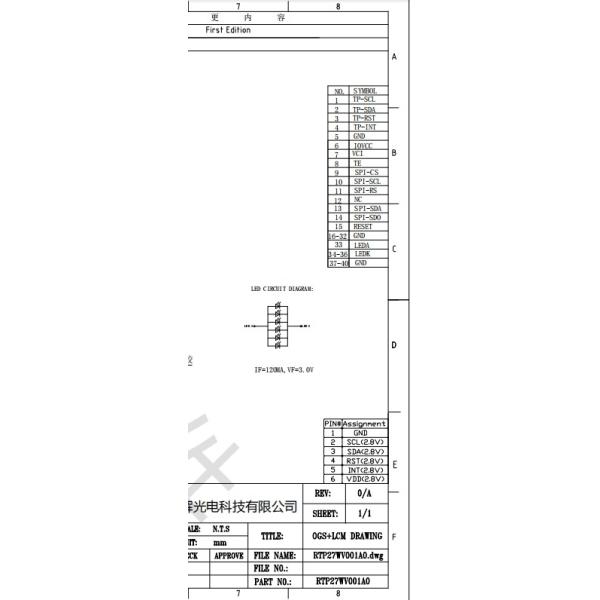

Utilizing a space-saving SPI interface and driven by the ST7365P3-G5 controller IC, the display delivers smooth performance with low pin count requirements, making it ideal for compact embedded systems. Integrated with the FT6336U touch panel controller, the module supports capacitive touch input, enhancing user interactivity.

Designed for robust operation, the display functions reliably in temperatures ranging from -10℃ to 60℃ and can be stored safely between -20℃ and 70℃, making it suitable for indoor and semi-outdoor applications.

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

7. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

8. What shipping ways do you support?

A: We can consult with it.
