Specifications
Model Number :
JC2432S028R
Place of Origin :
China
MOQ :
300
Price :
￥45/PCS
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs/day
Delivery Time :
28day
Certification :
CE
Size :
2.8inch
Resolution :
240*320
Touch :
Resistive touch
Name :
JC2432S028R
External dimension :
86.00(L)X50.00(W)MM
Visual angle :
12:00 o'clock
Description

2.8 inch Resistance Touch 2.8" 240*320 ILI9341 Smart Display Screen SPI LCD TFT Module TFT display Factory Orginal

2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display

The LCD module uses a 4-wire SPI communication method with a driver IC of ILI9341 with a resolution of 240x320 and a touch function (optional). The module includes an LCD display, backlight control circuitry, and touch screen control circuitry.

●2.4-inch color screen,support 16-bit 65K color display,display rich colors

●240X320 resolution with optional touch function ·

●Using the SPI serial bus, it only takes a few IOs to illuminate the display

●Easy to expand the experiment with SD card slot ·

●Provide a rich sample program ·

●Military-grade process standards, long

●Provide underlying driver technical support

Product Parameters

Name Parameter
SKU JC2432S028N
Display Color RGB 65K color

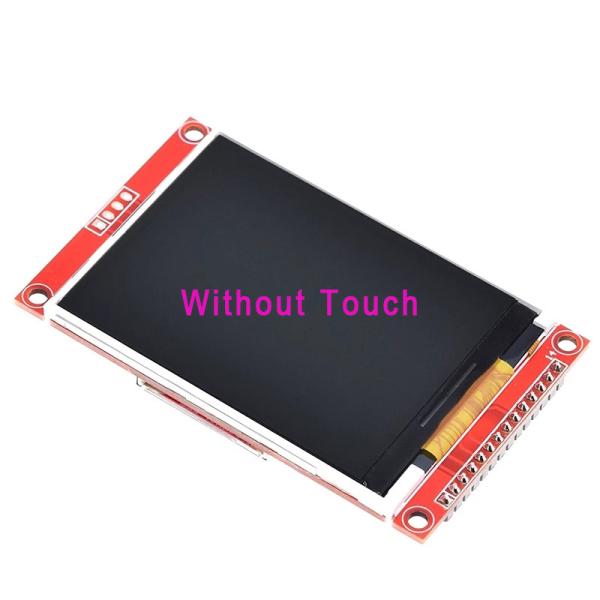

Touch mode Without touch
Screen Size 2.8(inch)
Type TFT
Driver IC ILI9341
Resolution 240*320 (Pixel)
Module Interface 4-wire SPI
Active Area 57.60(L))X43.20(W)MM
External dimension 86.00(L)X50.00(W)MM
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Operating Voltage 3.3V
Visual angle 12:00 o'clock
Product Weight(Package containing) 48(g)

Interface Definition

Number Pin Label Pin Description
1 VCC 5.0 power input
2 GND Power ground
3 CS LCD chip select signal, active low
4 REST LCD reset signal, low level reset
5 D/C Control register selection
6 SDI(MOSI) Control data transmission
7 SCK Clock signal
8 LED Backlight control, high level lighting, connected to 3.3V
9 SDO(MISO) SPI bus read data signal
10 T_CLK Touch SPI bus clock signal
11 T_CS Touch screen chip selection signal, low-level enable
12 T_DIN Touch SPI bus input
13 T_DO Touch SPI bus output
14 T_IRQ Touch screen interrupt signal, low level when touch is detected

2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display

2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display
