TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
Specifications
Brand Name :
TXDISPLAY
Place of Origin :
Guangdong, China
MOQ :
1
Price :
29,284-31,932円
Screen Size :
7 Inch
Resolution :
1024x600
Brightness :
1000cd/m2
Aspect Ratio :
16:9
Active Area :
154.214x85.92 mm
Viewing Angle :
85/85/85/85 (CR≥10)
Contrast Ratio :
800:1
Response Time :
10/15 ms
Display Color :
262K/16.7M
Power Supply :
DC 12V
Working Temperature :
-20 ~ 70 °C
Storage Temperature :
-30 ~ 80 °C
Touch Screen :
Capacitive Multi Touch
Interface :
HDMI
Weight :
956g
Description
Products Description
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
Outdoor IP67 High Brightness 7-inch Industrial LCD Monitor
Size: 7-inch
Resolution: 1024*600
Luminance: 1000 Nits
LCD Type: Industrial LCD panel
Active area: 154.214(W)×85.92(H) mm
Aspect ratio: 16:9
Protection grade: IP66
Feature: Waterproof; Industrial; Fully enclosed; Outdoor; High-brightness

Such as: machine tools , lathe medical equipment, ship, video intercom, monitor
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage

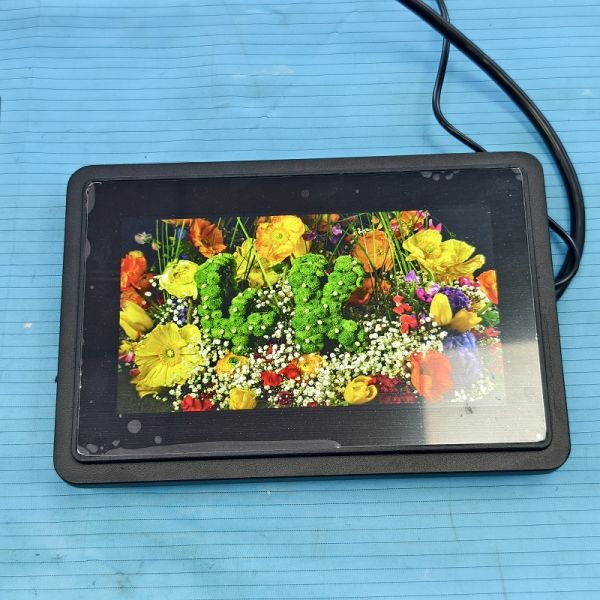

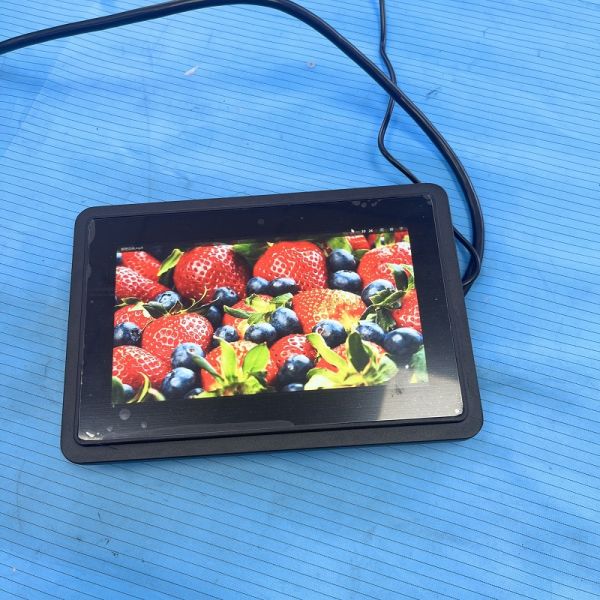

The Front
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage

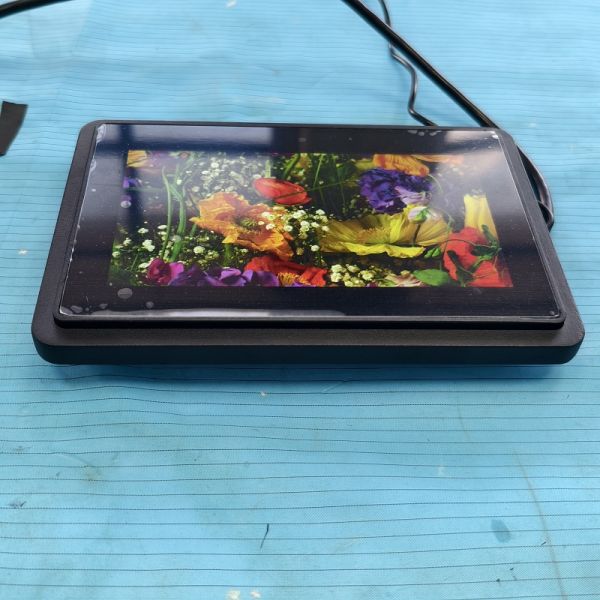

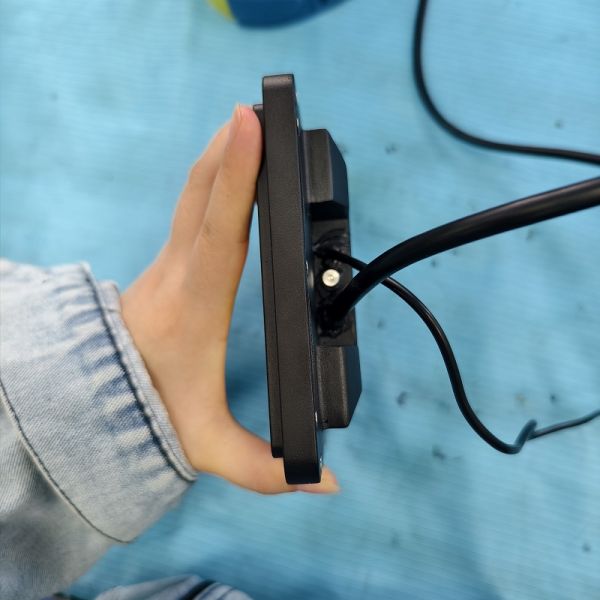

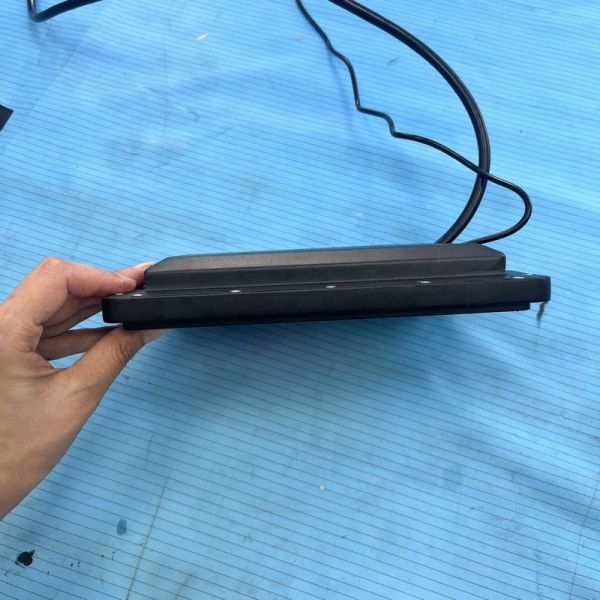

The Side
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage

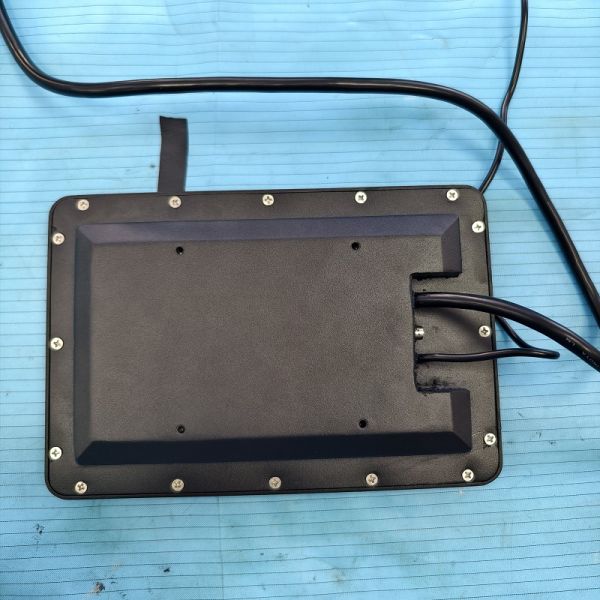

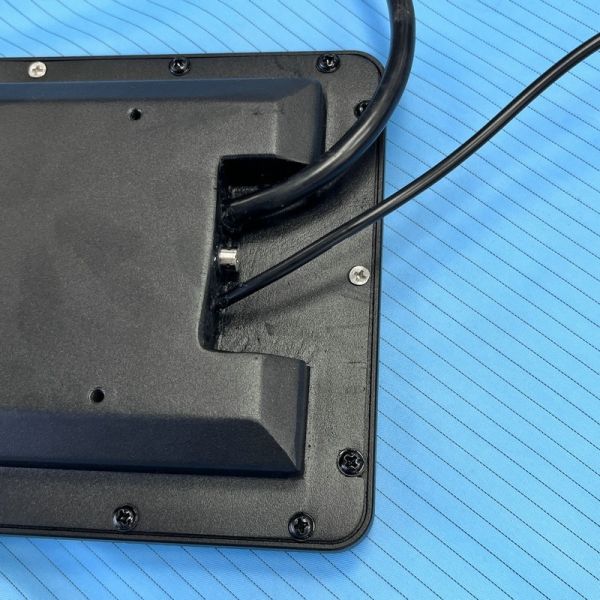

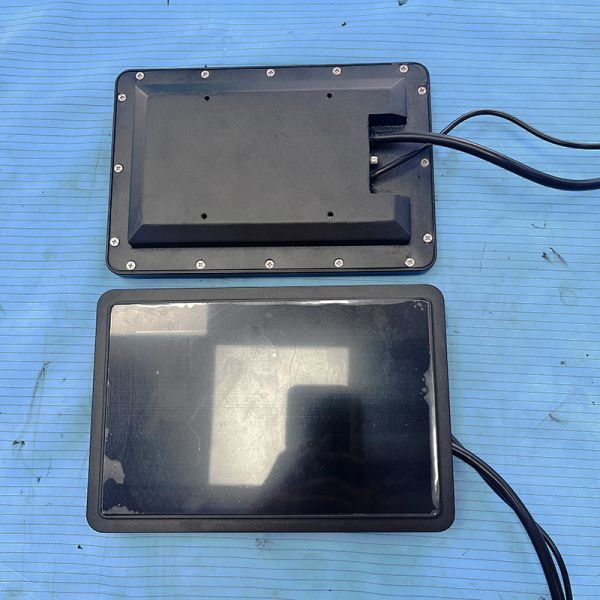

The Black
Products Details
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
Crystal Clear Resolution
The 1024 x 600 resolution delivers vibrant colors and sharp details, ensuring a premium viewing experience for industrial applications. This high resolution ensures that images and text are crisp, making it particularly suitable for applications requiring high precision displays, such as industrial control and medical devices.

Exceptional Brightness Performance
As a high-brightness LCD monitor, it boasts a maximum brightness of 1000 nits. This allows the panel to maintain excellent display quality even in strong light conditions, such as outdoor activities or bright industrial environments. Whether in direct sunlight
or high-contrast scenes, users will be able to clearly read screen content.
IP67 Waterproof Rating
Engineered to withstand harsh environments, this monitor is fully waterproof and dustproof, making it ideal for outdoor applications.


Rugged Design
Built to endure shocks, vibrations, and extreme temperatures, this monitor is perfect for outdoor use in construction, transportation, and field operations.
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
Versatile Mounting Options
Designed for easy installation, it can be mounted in diverse locations, adapting to your specific needs in any industrial environment.


TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
Complete Accessories
Prior to shipment, we will include all necessary accessories, ensuring that customers can start using the panel immediately. This eliminates the need for additional accessory purchases and reduces installation and setup time and costs.
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
Applications

The capacitive touch high-brightness LCD panel is widely applicable in fields such as industrial control and medical devices. Its high resolution, brightness, and advanced touch capabilities make it an ideal choice for demanding application scenarios. Whether used in industrial control panels, medical display terminals, or interactive kiosks, this panel offers reliable performance and outstanding display quality.
Product Paramenters
Size
7 Inch
Active area
154.214(W)×85.92(H) mm
Type
a-Si TFT-LCD
Backlight
LED
Resolution
1024(RGB)×600
Bezel area
164.9(W)×100(H) mm
Pixel arrangement
RGB vertical stripes
Aspect ratio (W:H)
16:9
Pixel pitch (W×H)
0.1506×0.1432 mm [170PPI]
Viewing angle
85/85/85/85 (Typ.)(CR≥10)
Dot pitch (WxH)
0.0502×0.1432 mm
The best viewing
6 o'clock
Luminance
1000cd/m2
Contrast ratio
800:1
Surface treatment
Hard coating
Response time
10/15 (Typ.)(Tr/Td) ms
Display color
262K/16.7M (6-bit / 8-bit)
Operating temperature
-20 ~ 70 °C
Touch screen
optional
Storage temperature
-30 ~ 80 °C
Interface
HDMI
Refresh rate
60Hz
Input Voltage
DC12V

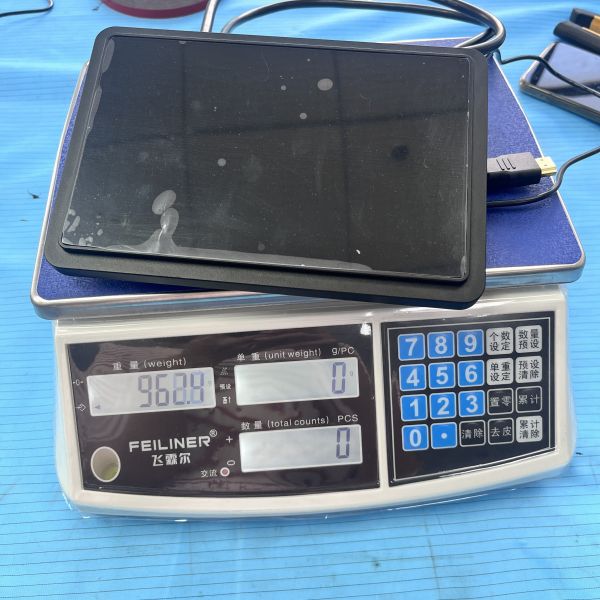

Weight
956g (Typ.)
Mainboard
Support HDMI-IN display board （Android/ Linux/ Raspberry Pi board optional)
Successful Cases

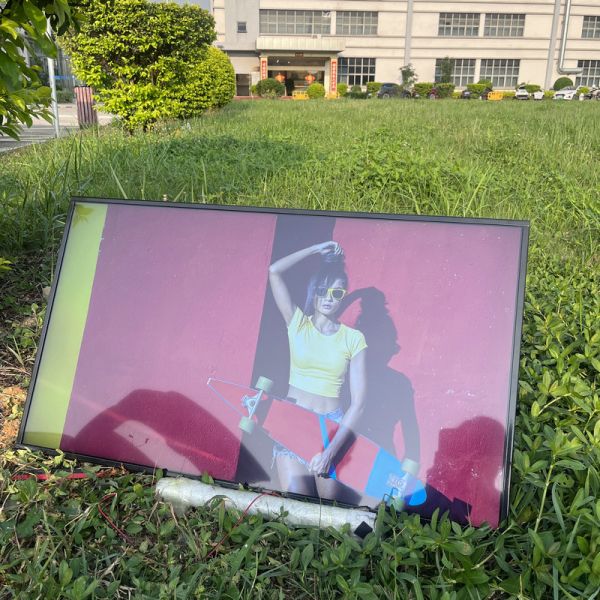

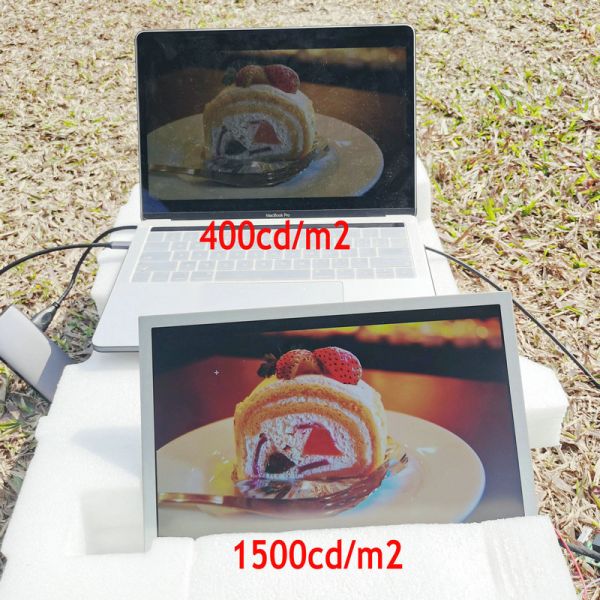

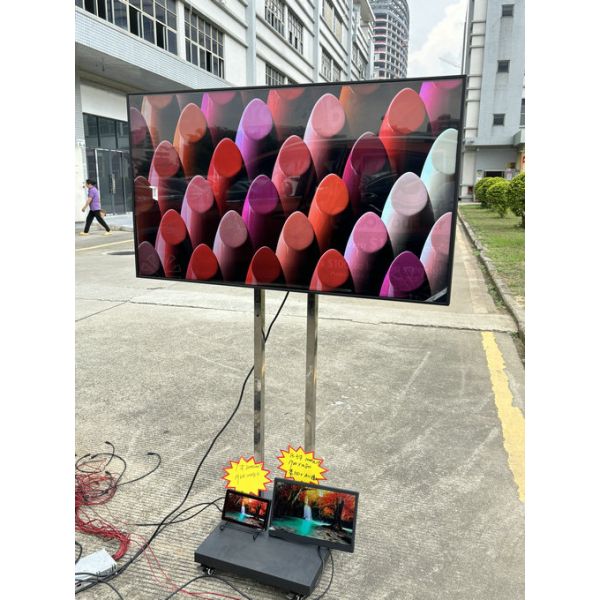

The display effect of the monitor under direct sunlight outdoors at around 2-3 pm on a sunny day in Shenzhen
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
32 Inch High-brightness LCD Display

TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage

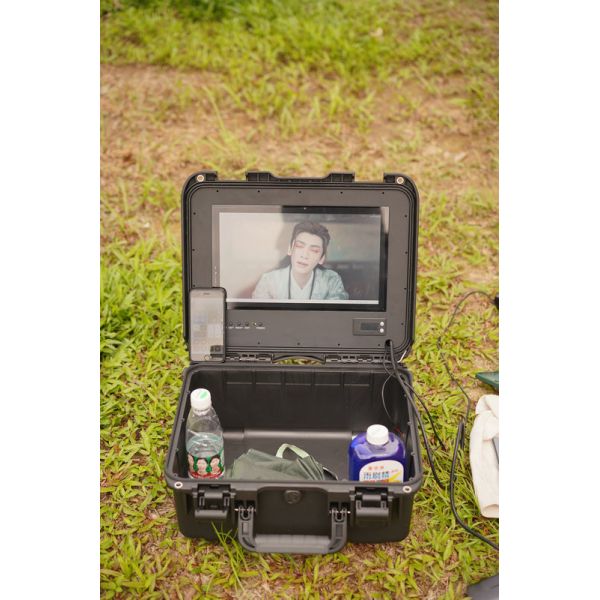

Portable aerial photography ground station high brightness LCD display
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage

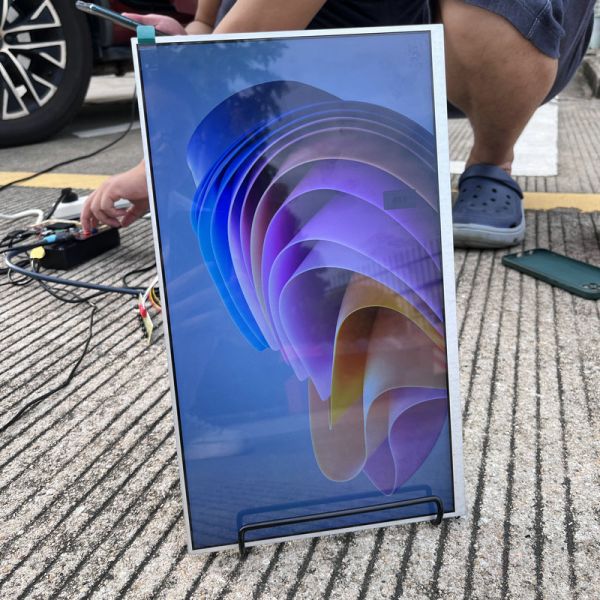

14.1 inch High Brightness LCD Panel
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
Laptop high brightness display
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage

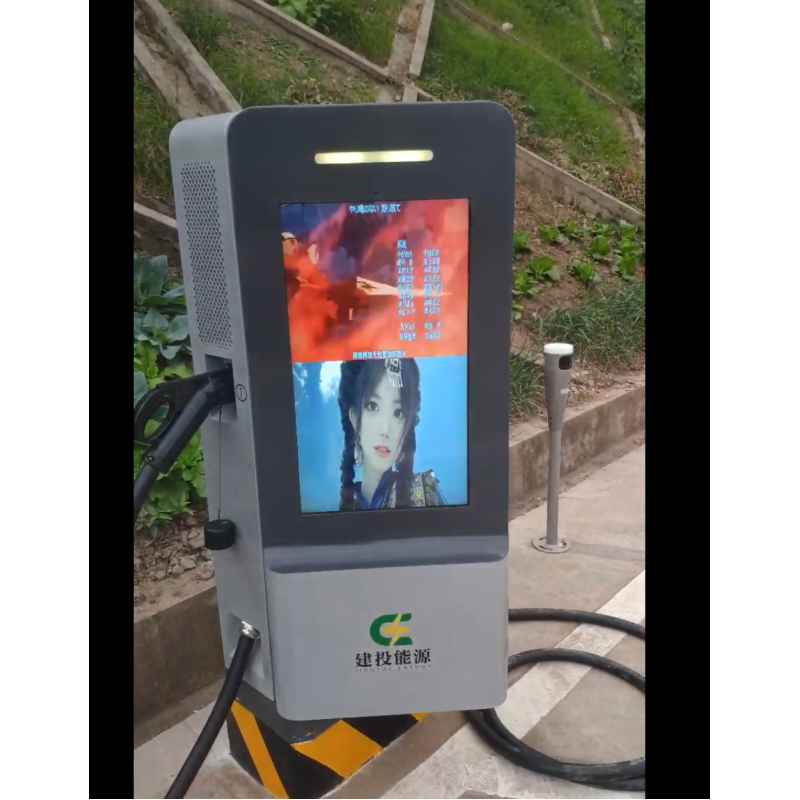

Outdoor new energy charging pile
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
High Brightness Window LCD Display

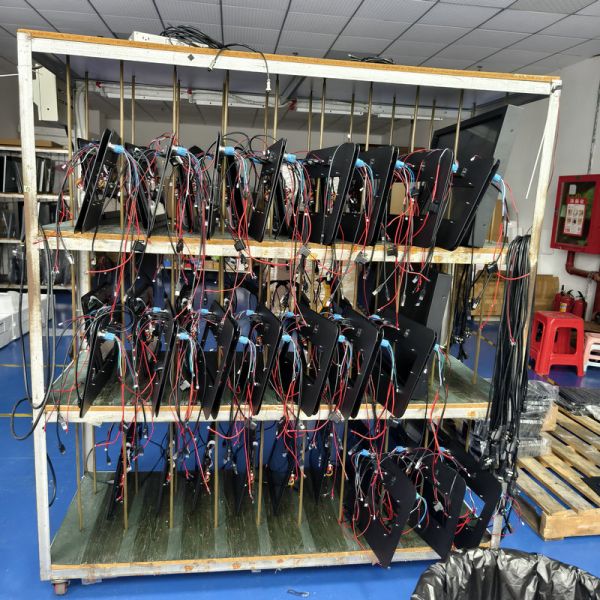

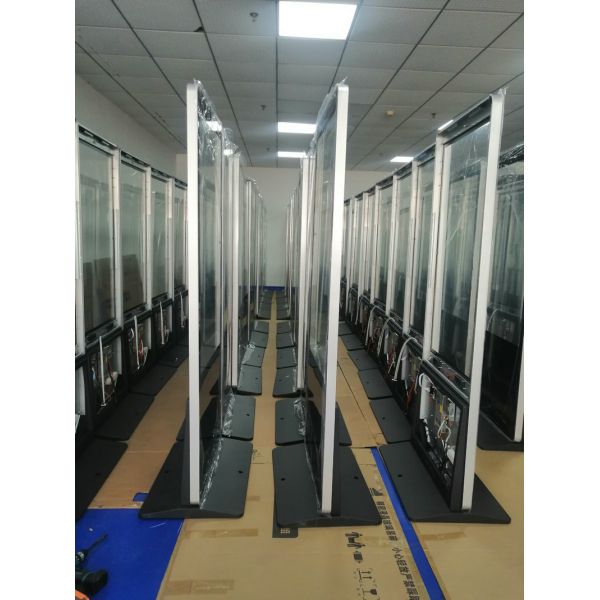

Our Advantages
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
TXDISPLAY 7 Inch IP66 Waterproof Industrial Touch Screen Display with 1000nits Brightness for Outdoor Digital Signage
FAQ
1.Q: Are you a factory? A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time! 2.Q: What’s sample production time? A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks) 3.Q: What’s your warranty term? A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge. 4.Q: What’s the outdoor LCD display working temperature range? A: With air flow cooling system, working temperature -10℃-60℃. 5.Q: What’s your outdoor LCD screen brightness? A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional. 6.Q: How to use and install it? A: To help customer easy to use and install, we will send user manual and instruction videos to customer. 7.Q: What’s the packing? A: For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
