Component | Detailed Description | ||

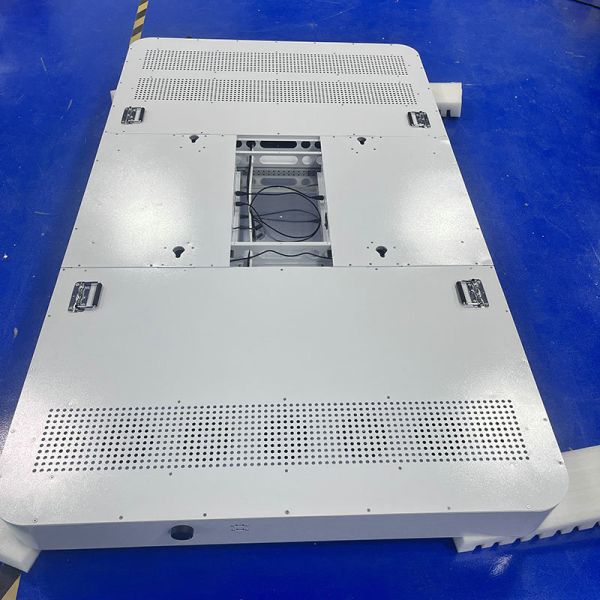

Waterproof housing | Shell | Using 1.0-2.5mm SGCC high-quality galvanized steel plate | |
Surface treatment | Inner layer sprayed with zinc-rich base powder, surface sprayed with outdoor special powder | ||
Protection level | IP55/IP65 | ||
Protective glass | 6MM high-transparency fully tempered explosion-proof glass (optional AG anti-glare/AR anti-ultraviolet) | ||
High Brightness LCD Panel | Size | 98-inch | |
Resolution | 3840*2160（4K） | ||
Display area | 2160*1215mm | ||
Brightness | 2000cd/㎡ | ||
Display ratio | 16:09 | ||
Viewing angle | 178° (Horizontal) / 178° (Vertical) | ||
Response time | 8ms | ||
Backlight mode | LED direct backlight: It uses LED backlight with a lifespan of 50,000 hours, is environmentally friendly and energy-saving, has high dynamic contrast, and displays clearer images; Combined with the heat dissipation solution, the temperature is precisely controlled, and the display screen works 7*24 hours without brightness attenuation | ||
Brightness adjustment | Intelligent photosensitivity | The built-in photosensitive probe can automatically adjust the brightness of the LCD display screen according to the intensity of outdoor light. The LED backlight control and sensing core technology improves the sensitivity of light transmission and effectively identifies, controls and adjusts the brightness of the LED backlight. | |
speaker | 2*10W waterproof column speaker | ||
Electrical control system | Power supply | 12V/24V Taiwan Mean Well industrial-grade switching power supply, stable and reliable power supply | |

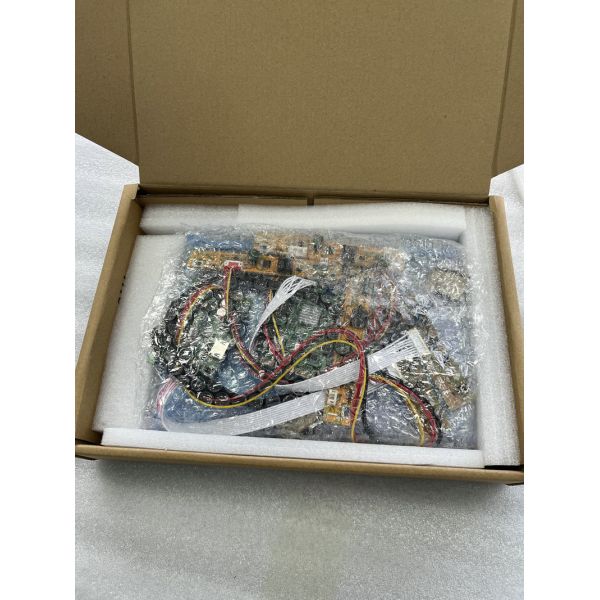

Motherboard | HDMI IN display board | ||
Time switch | Supports 16 groups of timed on/off, can be set repeatedly, and timed on/off by day, week, or month | ||
Lightning protection | Three-level lightning protection, protects against indirect lightning and direct lightning or other transient overvoltage surges | ||
Leakage protection switch | When the equipment has a leakage fault or a fatal electric shock occurs, the circuit will be disconnected in time | ||
Cooling System | Heat dissipation design | Adopt intelligent direct ventilation (forced air cooling) cooling system, professional cooling design | |
Applicable environment | Ensure normal operation of the equipment in outdoor environment of -20℃ to +45℃ | ||
Energy saving | Intelligent temperature control cooling system, automatically adjusts wind speed and air volume | ||
Dustproof | High-precision filtration system, blocks 99% of dust particles, ensuring air cleanliness | ||
Others | Power consumption | Power consumption 300W-1800W | |
Input power | AC 100V-240V (according to actual matching) | ||
Operating temperature | -20℃~+45℃ | ||
Operating humidity | 5%~95% | ||

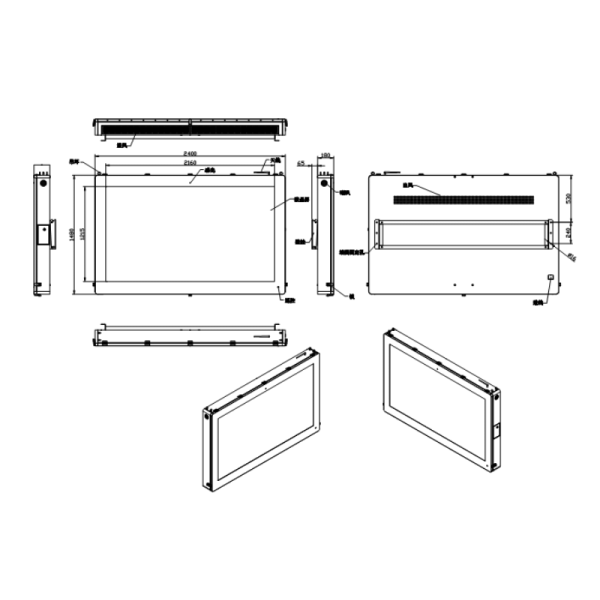

Bare machine size (W x H x D) | 2400mmx1480mmx180mm+65mm (wall mount) | ||
Packaging specifications | Depending on the packaging method, the actual product shall prevail (carton, wooden box, wooden frame) | ||
Product testing | Waterproof test, high and low temperature aging test, simulated sunlight test | ||
