一，Basic parameters | ||||||||||||
Panel size | 32 inch lcd panel | Contrast | 1300:1 (Typ.) | |||||||||
Active area | 698.4(W)×392.85(H) mm | Viewing angle | 89/89/89/89 (Min.)(CR≥10) | |||||||||
Display ratio | 16:09 | Response time | 6 (Typ.)(G to G) ms | |||||||||
Backlight type | LED | Display color | 16.7M | |||||||||

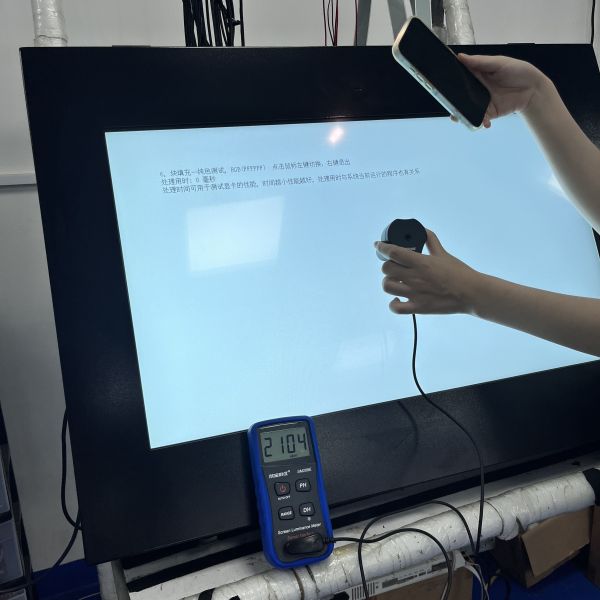

Resolution | 1920*1080 | Panel brightness | 2000~3000 cd/m2 | |||||||||

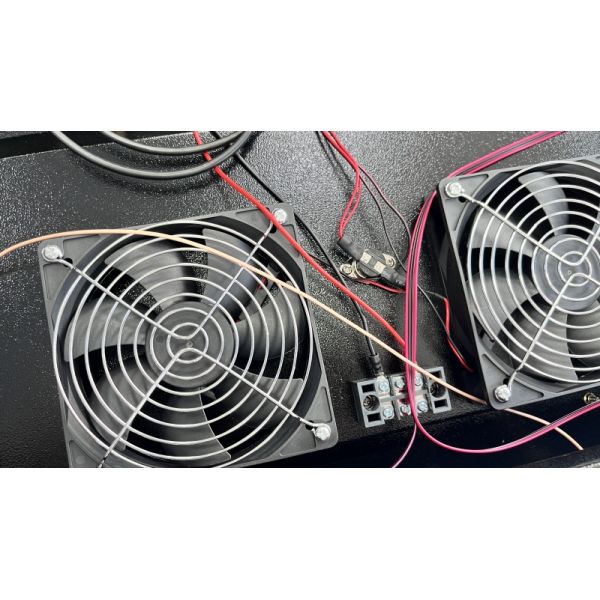

Audio power | 8 ohms 5 watts | Cooling method | Air cooling | |||||||||
Protective glass | Special tempered | Operating temperature | -20-50℃ | |||||||||

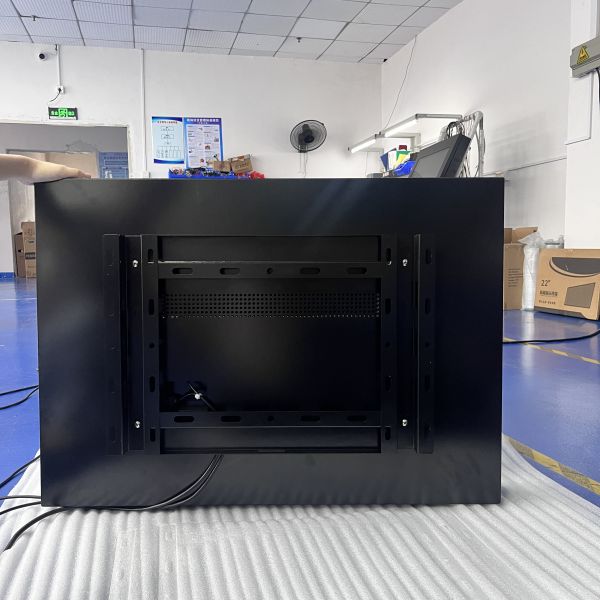

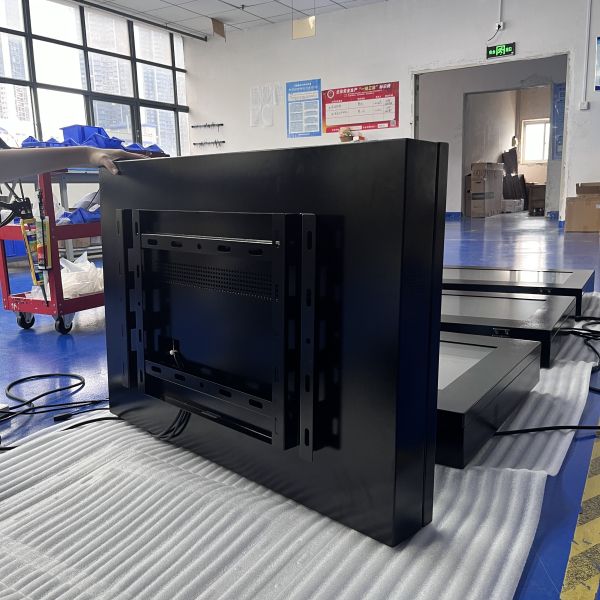

Casing color | White (optional) | Installation method | Wall-mounted | |||||||||
Casing material | SPCC+electrostatic spray paint | Environmental automatic dimming | PWM modulation | |||||||||

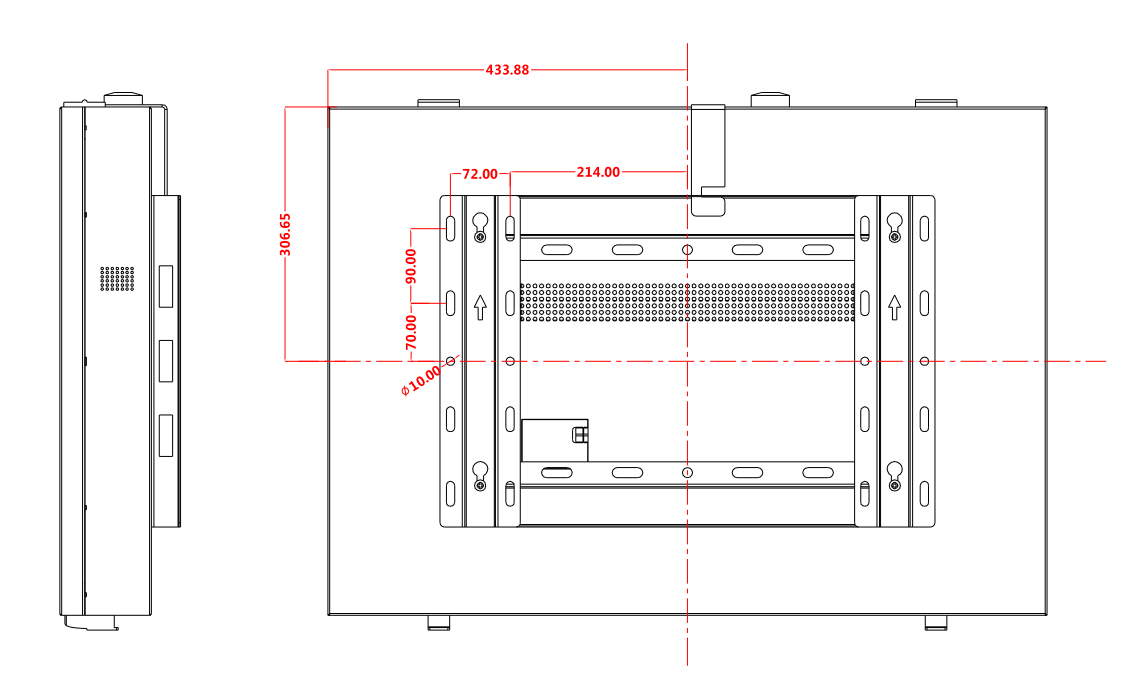

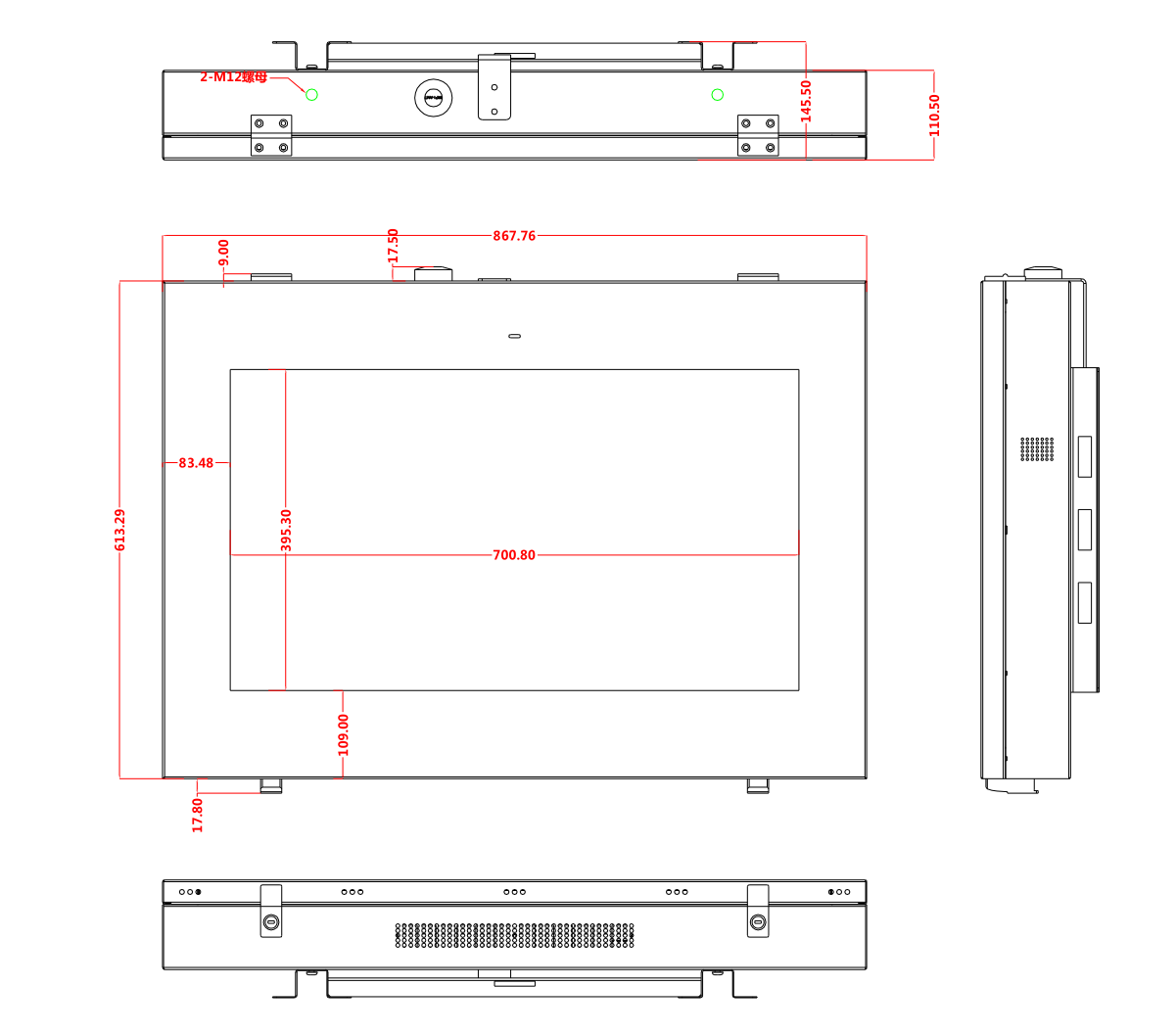

Product size | 867.76* 613.29* 145.50 mm | Power input voltage | AC100V-240V（50/60Hz） | |||||||||

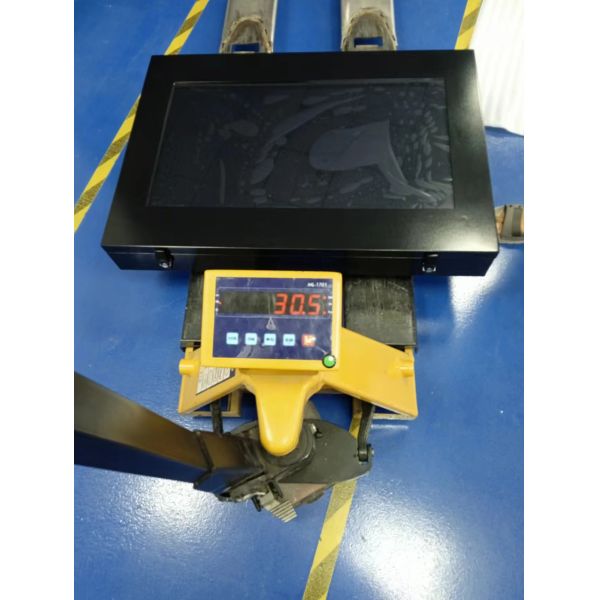

Weight | 30.5 | Complete power consumption | ＜80W | |||||||||
二，Function parameters | ||||||||||||
Control mode | Remote control/management software control | Input and output interface | SD card*1 HDMI（OUT*1） USB*2 RJ45*1 | |||||||||
Motherboard configuration | Android（3568, 4+32） | Protection level | IP55 | |||||||||
Network version features | Supports mainstream 1920X1080 high-definition video formats such as AVI/MP4/MPG/TS/MKV/WMV and JPEG/BMP/PNG/MP3 pictures and music. It also supports multiple split-screen playback and RSS, PDF, slides, TXT subtitle files, weather forecasts, etc. It supports LAN/WAN, WIFI and 3G. Storage supports large-capacity SATA hard drives and SD card storage media. It supports U disk update interface, which can be updated flexibly even without a network, and supports software timed power on and off. The management software supports windows2000/xp/7/8. | |||||||||||
Vulnerability overload surge protection | Supoort | Power Customization Management | Support 16 segments per day | |||||||||
