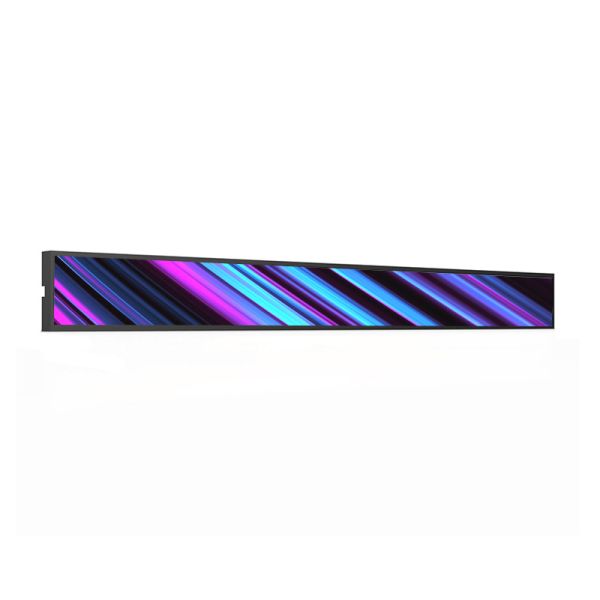

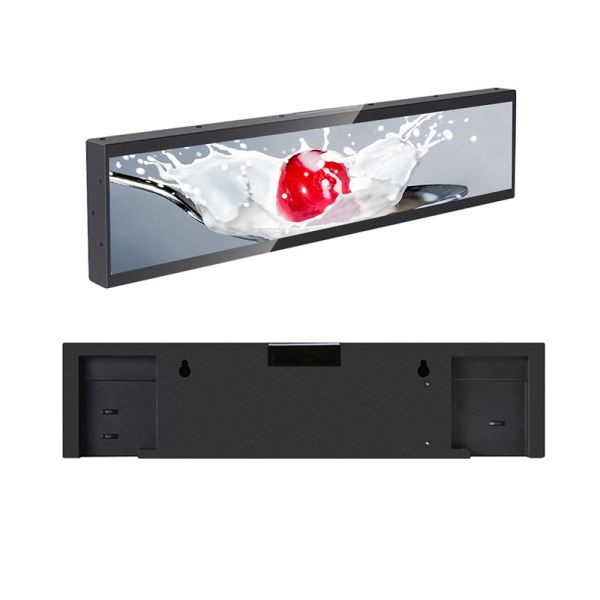

25.5 Inch Indoor Stretch Bar Display Screen LCD Bar Rack Digital Display
Industrial-grade customized advertising equipment with edge display and wide panel LCD digital signage capabilities.
Key Features
- Automatic residual image removal function
- High contrast and brightness for vivid image quality
- Fast 8ms response time with 178° ultra-wide viewing angle
- Industrial-grade power supply with power outage and short circuit protection
- Low energy consumption with high safety protection level
Panel Specifications
| Feature |
Specification |
| Active Display Area |
597.6mm (H) × 112.05mm (V) |
| Native Resolution |
1920 × R.G.B. × 360 |
| Brightness |
350 Nits |
| Contrast Ratio |
1000:1 |
| Viewing Angle |
178°(H)/178°(V) |
| Backlight Type |
LED (30,000+ hours lifespan) |
Connectivity & Power
| Feature |
Specification |

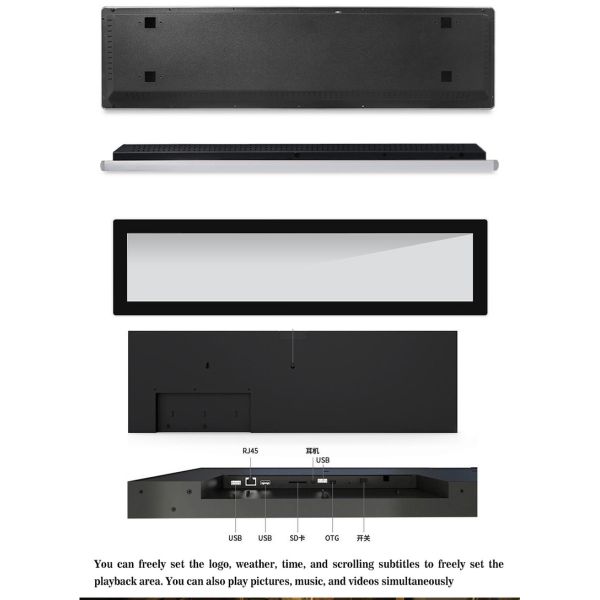

| Input Ports |
TF*1, USB2.0*1, USB3.0*1, RJ45*1 |
| Power Supply |
100V-240V, 50-60 Hz |
| Power Consumption |
45W (Max) |
System Specifications
| Component |
Specification |
| Operating System |
Android 11 |
| Processor |
Cortex-A55 @ 1.8 GHz |
| Memory |
2GB DDR RAM |
| Storage |
16GB EMMC Flash |
| Wireless |
WiFi 802.11 b/g/n/ac, Bluetooth 4.1 |
Product Features
- Customized play & power on/off scheduling
- RTC timing clock and system watchdog

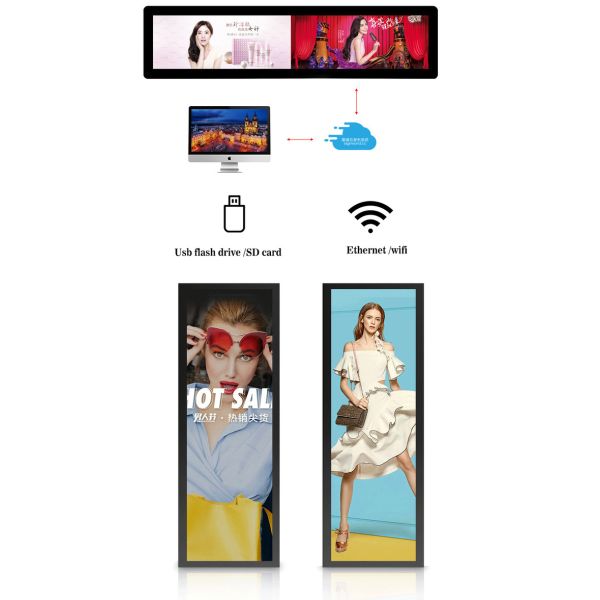

- Supports web/local information publishing
- Full seamless content switching
- Supports multiple video and image formats
Physical Specifications
| Feature |
Specification |

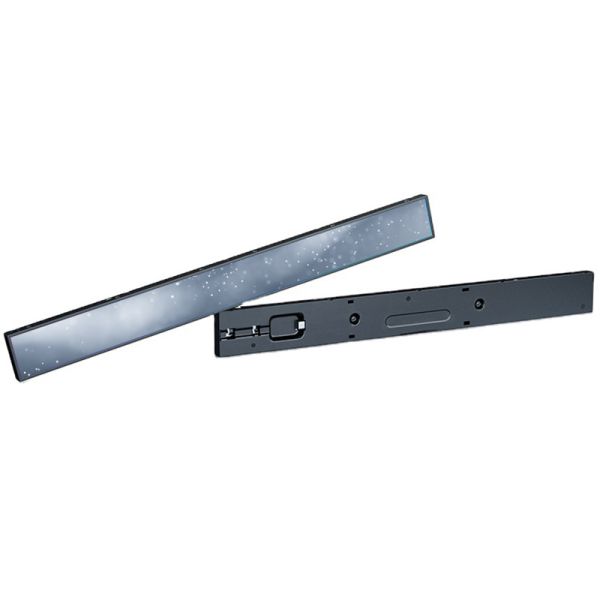

| Chassis Material |
Metal (Black) |
| Product Dimensions |

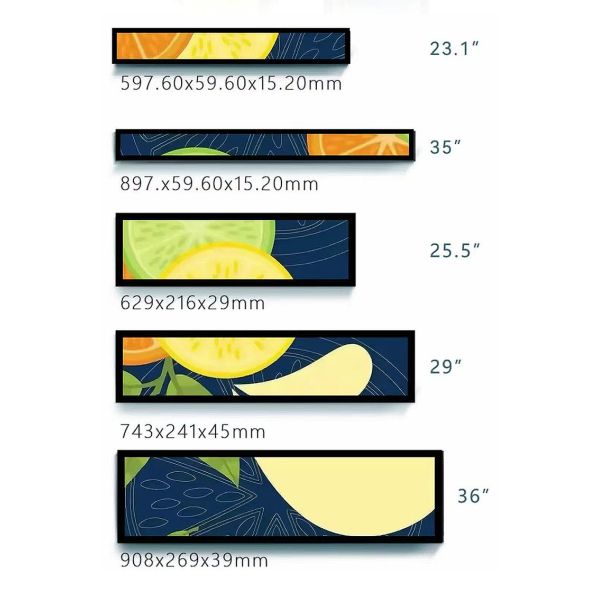

629 × 216 × 29mm (without bracket) |
| Product Weight |
5kg (Net), 5.2kg (Gross) |
| Included Accessories |
Warranty card, user manual, remote control, power cord, wall bracket |
