1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
Specifications
Brand Name :
HuaXin
Model Number :
ESHX191612M50B10
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$58
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
VR TFT display
Name :
MR tft display
Display size :
1.89 inch TFT LCD
Resolution :
1600*1200
interface :
50 PIN MIPI
Brightness :
1000C/D
view angle :
all
Description
1.89 Inch VR TFT Display with MIPI Interface
Key Specifications
Display Technology VR TFT display
Model Name MR TFT Display
Display Size 1.89 inch TFT LCD
Resolution 1600 × 1200 dots
Interface 50 PIN MIPI
Brightness 1000 cd/m²
View Angle All directions
Technical Parameters
Part Number ESHX191612M50B10
Active Area 38.4 × 28.8 mm

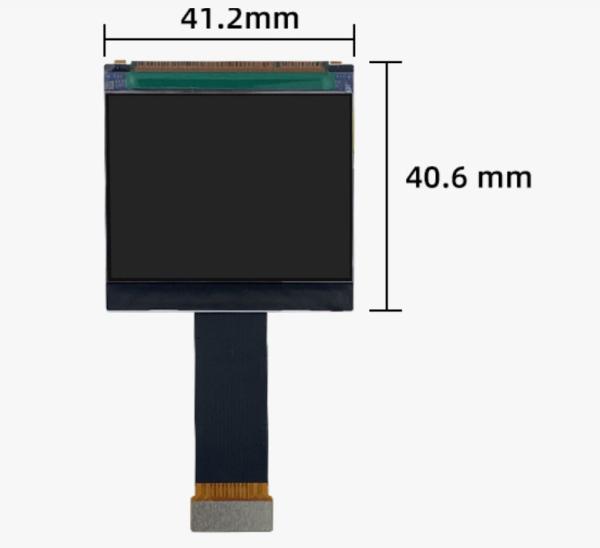

Outline Dimensions 41.2 × 40.6 × 1.72 mm
Color Depth 16.7 million colors
Display Mode ADS
Surface Treatment HC, ≥3H hardness
Operating Temperature -10°C to +55°C
Storage Temperature -30°C to +70°C
Contrast Ratio 550:1

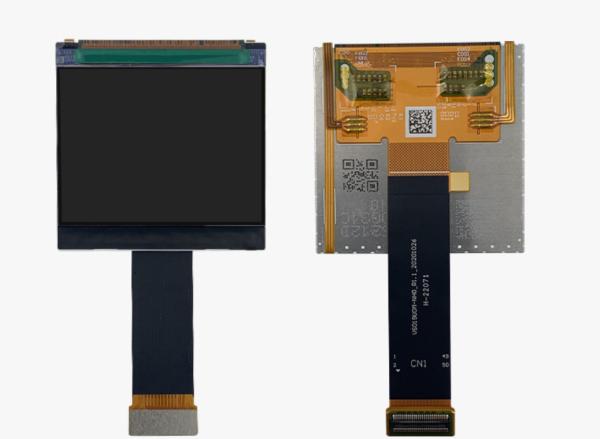

Product Images
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness 1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness 1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness

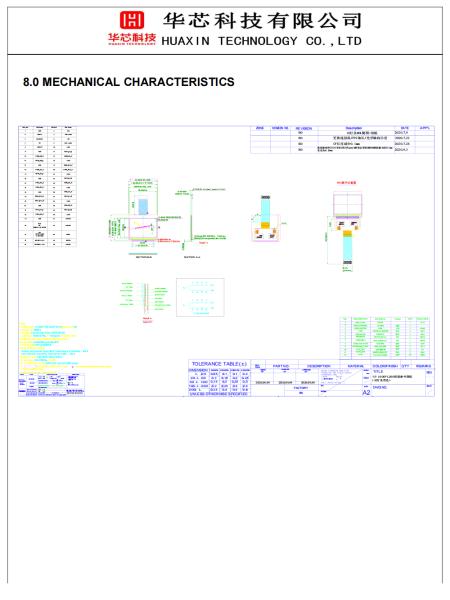

Pin Definition Diagram
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
TFT Manufacturing Process
1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness 1.89 Inch VR LCD Display 1600*1200 50 PINS MIPI Interface 1000 C/D Brightness
Manufacturer Advantages
  • Cost-effective inland production facility
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency
  • 20+ years of LCD industry expertise
  • Custom design capabilities
Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi

Founded: 2009

Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products

Certifications: ISO14001, ISO9001, IATF16949, SGS

Staff: 500+ employees (10% R&D, 15% QC)

Production Capacity
Product Type 2021 2022 2023 2024 2025
LCD (thousands/Day) 4.5 9 9 9 9
LCM (thousands/Day) 70 150 300 450 450
Backlight (thousands/Day) 100 200 300 500 500
OLED (thousands/Day) 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & digital signage
  • Automotive displays & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • High resolution and color accuracy
  • Fast response times
  • Wide viewing angles
  • Energy efficient operation
  • Flexible sizing options
  • LED backlight illumination
  • Broad application compatibility
TFT Display Considerations
  • Viewing angle limitations in some configurations
  • Contrast ratio constraints
  • Backlight power requirements
  • Potential motion blur in fast-moving content
  • Limited flexibility in curved applications
  • Color gamut restrictions
