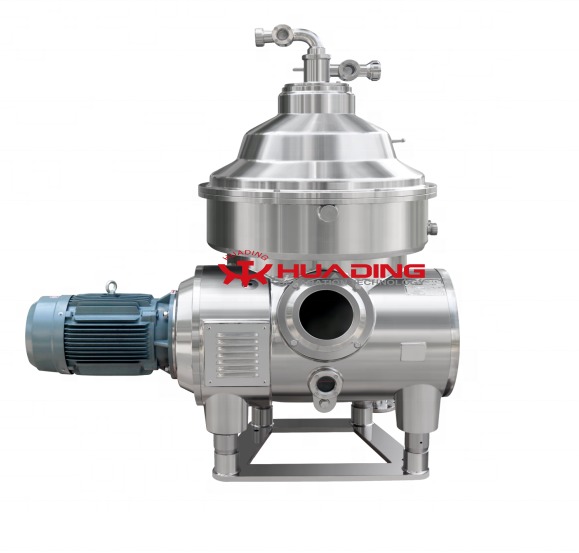

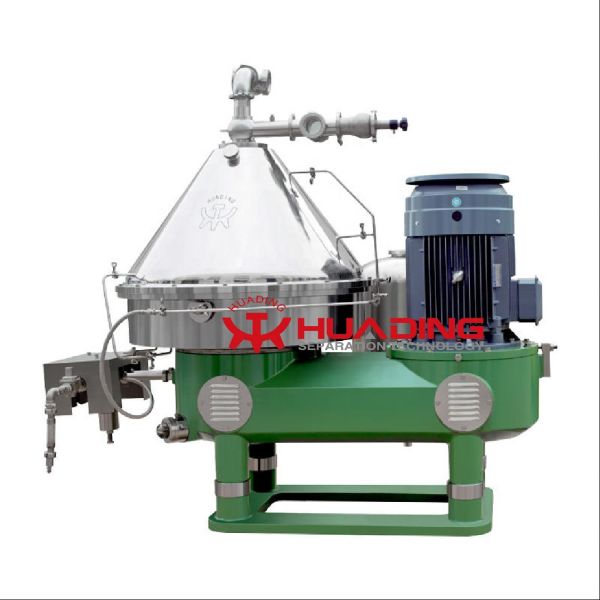

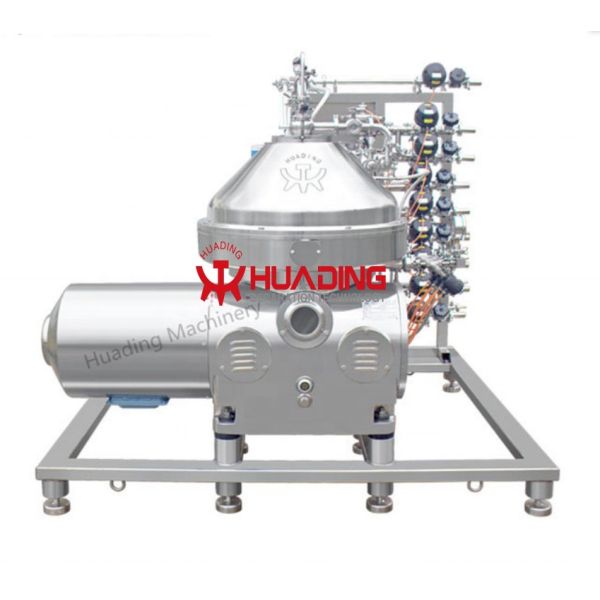

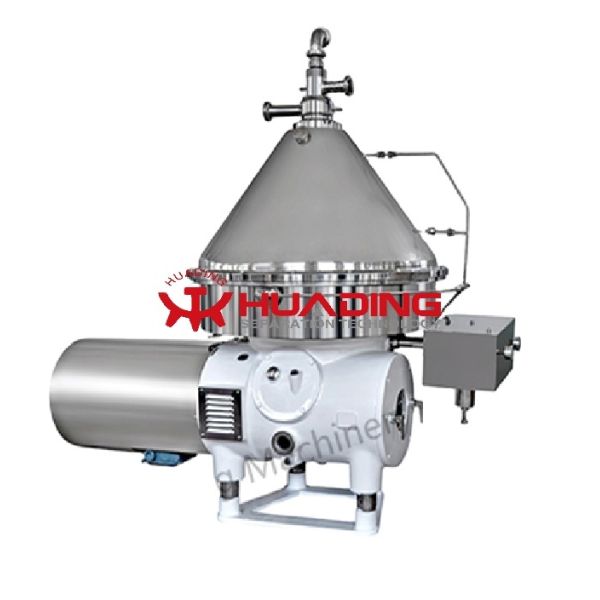

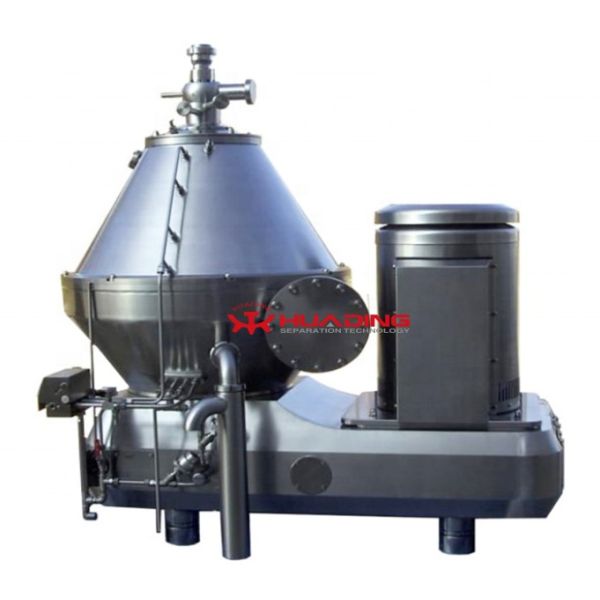

Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Specifications
Place of Origin :
Jiangsu, China
product type :
Other
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
bowl
Brand Name :
HUADING
voltage :
110 - 415V
power(w) :
4 - 90 Kw
dimension(l*w*h) :
2000*1200*1800mm
warranty :
1 Year
key selling points :
/
After-sales Service Provided :
Overseas service center available
Drive :
gear / belt
Bowl speed :
4000 - 10000 rpm
Centrifugal force :
> 10,000 g
Bowl volume :
8 - 300 L
Bowl weight :
50-15000 Kg
Solids holding space :
2 - 50 L
Inlet pressure :
0-0.1 Mpa
Liquid outlet pressure :
0.2-0.6 Mpa
Starting time :
5 - 30 mins
Type :
Centrifuge
Condition :
New
Marketing Type :
Ordinary Product
Warranty of core components :
5 year
Applicable Industries :
Other
Showroom Location :
None
Weight :
1200
MOQ :
1 set
Price :
$20,000-25,000 / set
Description
Customized Protein Recovery Centrifuge of CE Standard
Leading manufacturer of disc separators in China since 1954, specializing in customized centrifuges for various industrial applications.
Customized Protein Recovery Centrifuge of CE Standard
Technical Specifications
Specification Details
Drive Gear / Belt
Bowl Speed 4000 - 10000 rpm
Centrifugal Force > 10,000 g
Bowl Volume 8 - 300 L
Bowl Weight 50-15000 Kg
Solids Holding Space 2 - 50 L
Inlet Pressure 0-0.1 Mpa
Liquid Outlet Pressure 0.2-0.6 Mpa
Starting Time 5 - 30 mins
Stopping Time (no brakes) > 40 mins
Huading Separator has over 60 years of tradition in mechanical separating technology. As China's leading manufacturer, our developments serve diverse industries including beverage, dairy, oil and fat processing, chemicals, , biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop and build customized centrifuges and complete process lines tailored to customer requirements.
Compliance Standards
  • JB/T 8103 standards - Chinese national standard of disc centrifuge
  • 2006/42/EC (Machinery)
  • 2014/35/EU (Low Voltage)
  • 2014/30/EU (Electromagnetic Compatibility)
  • Quality management system of ISO9001-2000
Centrifugal Separation Technology
Customized Protein Recovery Centrifuge of CE Standard
Disc stack separators efficiently separate solids and liquid phases in a continuous process using high centrifugal forces. Denser solids move outward against the rotating bowl wall while less dense liquids form concentric inner layers. The interface position between phases can be adjusted for optimal separation efficiency. Special disc plates provide additional settling surface area, dramatically accelerating the separation process. Solids can be removed continuously, intermittently, or manually based on centrifuge type and application requirements.
2-Phase Separation Disc Stack Centrifuge
Customized Protein Recovery Centrifuge of CE Standard
Separation occurs inside a rotating bowl where feed enters via a stationary inlet pipe and accelerates in the distributor before reaching the disc stack. Liquid-solids separation happens between discs, with liquid moving to the center and pumped out via a paring disc. Solids collect in the periphery and discharge intermittently through a hydraulic system that opens solids ports at preset intervals.
3-Phase Separation Disc Stack Centrifuge
Customized Protein Recovery Centrifuge of CE Standard
Suspension enters the separator bowl through a feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center for pumping. Heavy phase is directed over a top disc into a chamber for pumping. Solids collect in the sludge space and discharge intermittently via hydraulic system, collected in the frame and exiting via cyclone.
Self-cleaning disc stack centrifuges are categorized as purifiers (solids and two liquid phases) or clarifiers (solids and one liquid phase).
Why Choose Huading Separator
60+
Years Experience
Developing and manufacturing disc stack centrifuges for over six decades
40000+
Installations
Centrifuges installed in over 50 countries since 1954
100+
Centrifuge Models
Comprehensive range to satisfy diverse customer requirements
Global
References
Trusted by leading food and pharmaceutical manufacturers worldwide
Customized Protein Recovery Centrifuge of CE Standard
Certifications
Customized Protein Recovery Centrifuge of CE Standard
All products pass rigorous inspection standards including CE and ISO certifications with 100% quality assurance.
Manufacturing Excellence
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Customized Protein Recovery Centrifuge of CE Standard
Packaging & Shipping
Package
Standard export carton packing
Delivery Time
30-90 days after order confirmation. Specific delivery dates determined by production season and order quantity.
Customized Protein Recovery Centrifuge of CE Standard
