Specifications
Place of Origin :
China
Brand Name :
Huading
MOQ :
1 set
Price :
$25,000-26,000 / set
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
bowl
voltage :
220/ 380 / 415
power(w) :
5.5-132
warranty :
1 Year
key selling points :
High Productivity
Type :
Centrifuge
Condition :
New
Marketing Type :
New Product 2020
Warranty of core components :
5 years
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining
Showroom Location :
Argentina
Weight :
1200
Description
3 phase tallow fats water separation machine decanter centrifugal for fish oil fish meal clarification
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine

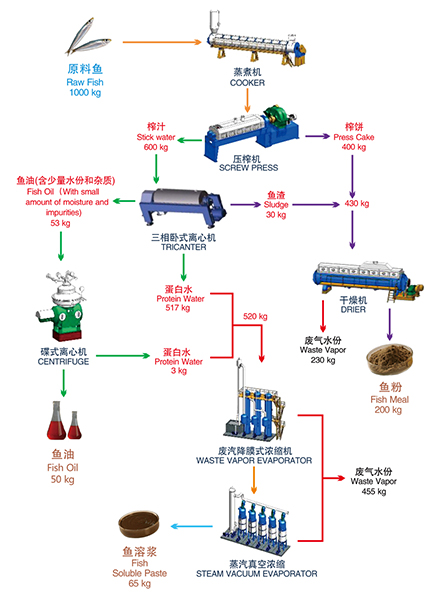

Tricanter For Fishoil Fishmeal Processing
Both separators and decanters have been using for fish oil and fish meal processing more than 100 years ago. Huading Separator hasdeveloped, manufactured and delivered more than 1000 centrifuges for the fish oil industry while at the same time successfully and innovatively optimizing the processes. Whether using the Conventional process, Whole fish or Three-phase decanter process, the centrifuges of Huading Separator make sure that our customers always obtain the most efficient separation of the dry substance
(protein), fat and water while keeping the contact time to a minimum.
Huading Separator offers even new and worthwhile solutions for the processing of small capacities.
Product Description
Standard equipments

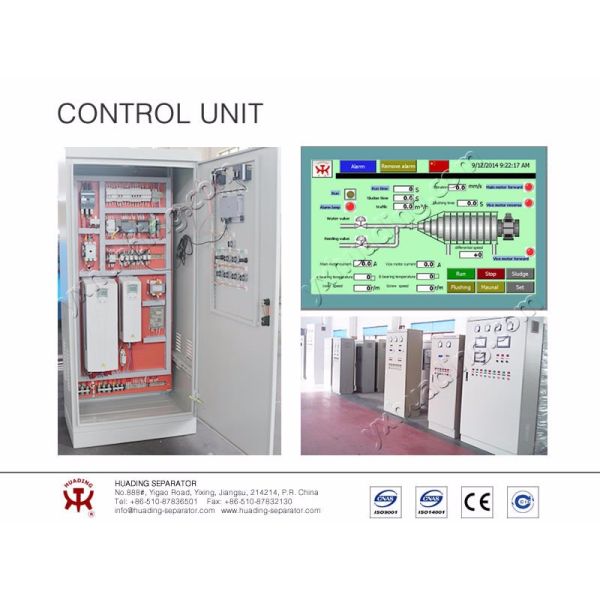

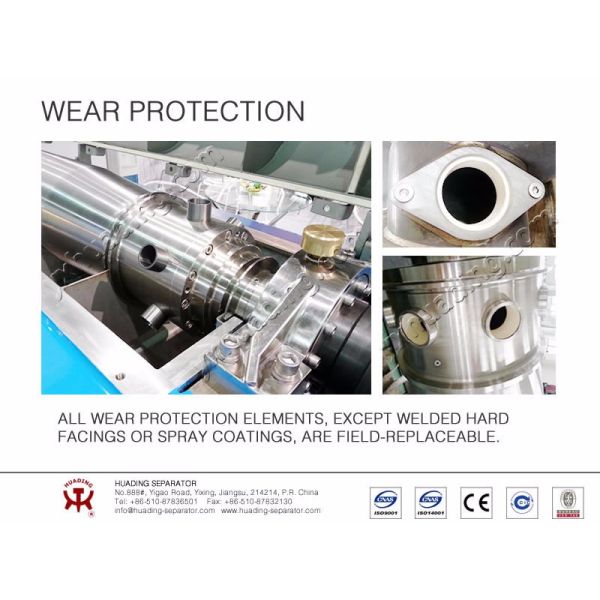

The decanter centrifuge include a motor control center panel to operate the main drive, back drive, and feed pump. A differential speed controller maintains optimal solids balance in the decanter during operation. All parts exposed to wear are protected by special metal hard facing, ceramic wear bushes,inserts, etc. Bushes and inserts are easily exchangeable, even under field conditions. Maintenance tools and spare parts are supplied.
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine

Feature

1.All parts directly touch to material are made of stainless steel 2.Continuous and automatic operation can minimize labor costs 3.Two motor drive, adjustable bowl and screw speed via VFD 4.Continuous spiral discharging, PLC control and screen touch operation 5.The scroll conveyor was coated with wearable alloy or welded with alloy plate(according to the material characteristics and customer demand) 6.Safety protection: rotation rate detection over, vibration protection, motor overload and overheat protection, protection for scroll when zero differential speed occurs

Technical specification

Huading Separator has been developing and manufacturing decanters for over 15 years and is one of the Chinese
leading decanter manufacturers, Huading now have many different types of decanters applied in many different industry and achieve very good benefit for our customers.
bowl ID
(mm)
bowl speed
(rpm)
L / D
g - force
capacity
(m3/h)
solids removal
(m3/h)
primary motor
(Kw)
Weight
(Kg)
Dimension
(mm)
250
4800~5400
3.0~5.0
2000~3500
3~5
0.4
11
760
1600×1100×850
300
4200~4600
3.0~5.0
2000~3500
3~15
0.8
11~15
1500
2470×1230×850
350
3700~4200
3.0~5.0
2000~3500
5~20
1.2
5~22
2000
2790×1300×880
400
3200~3900
3.0~4.8
2000~3500
5~30
2
18.5~30
2600
2950×1400×850
450
3000~3700
3.0~5.0
2000~3500
5~45
2.5
22~37
3200
3300×1500×920
530
2700~3450
3.0~5.0
2000~3500
10~80
5
30~55
5200
3730×1600×1100
580
2600~3300
3.0~5.0
2000~3500
10~90
6
45~75
6900
4000×1400×1600
650
2400~3100
3.0~5.0
2000~3500
20~105
8
37~90
8200
4300×1900×1350
760
2200~2900
3.0~5.0
2000~3500
30~120
12
55~135
12000
5000×2500×1500
900
1800~2600
3.0~5.0
2000~3500
40~180
16
75~160
18000
6500×2700×1500

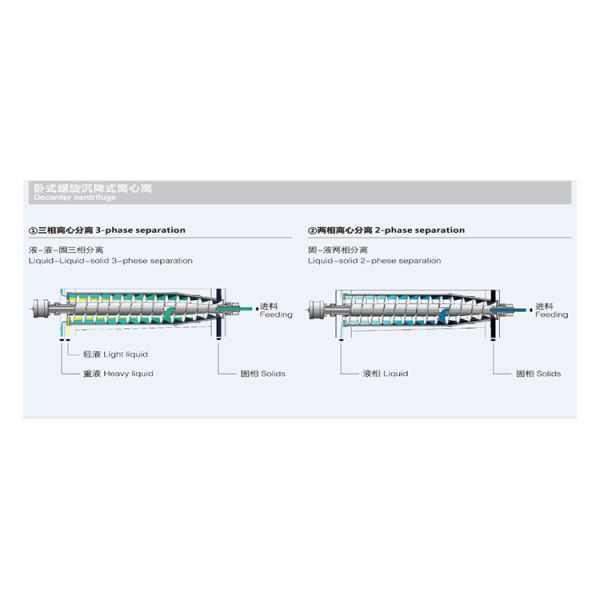

Working principle

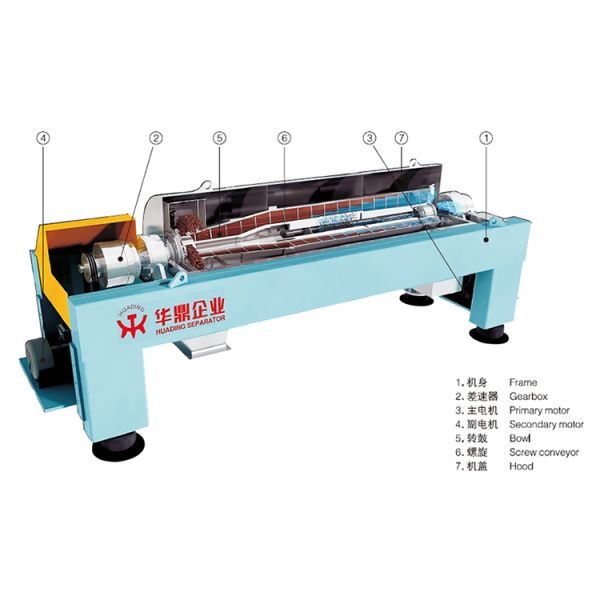

The horizontal screw discharge sedimentation centrifuge is a kind of machinery that carries out continuous separation of materials of density difference in suspensions by using the centrifugal sedimentation principle. Its basic principle is: the bowl and feeding screw make high-speed rotation with a certain differential speed between them. The materials are introduced continuously by the feed tube into the inner cylinder of the spiral material pusher, and then enter the bowl after acceleration. Under the action of centrifugal force field, the heavier solids will deposit on the bowl walls and form residue layers. The spiral material pusher will continuously push the deposited solids to the taper end of the bowl and discharge them out of the machine from the residue outlet after dehydration in the drying area. The machine can realize continuous feeding, sedimentation, separation, washing and discharging when it carries out full-speed running. It has such features as compact structure, continuous operation, stable production capacity, convenient maintenance, etc. It is suitable for separating suspensions containing solids with particle diameters than 0.005mm and concentration ranging within 2-40%. It is widely applied in such industries as chemical industry, light industry, medical, food, environmental protection, etc.
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine

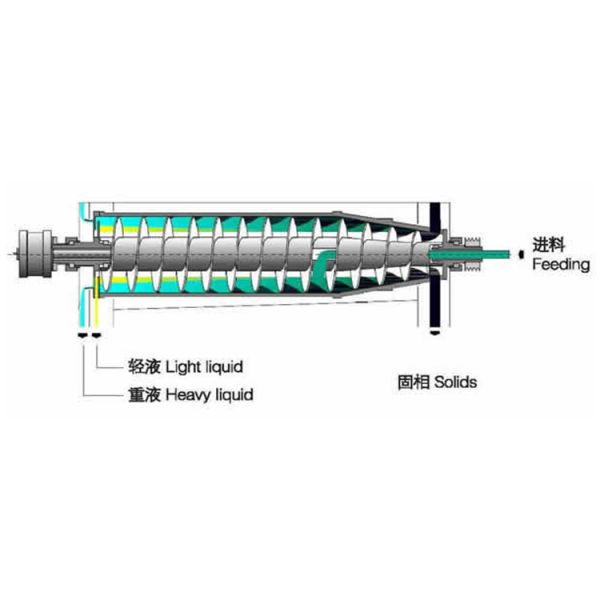

The three-phase working principle

The bowl and screw make high-speed rotation with a certain differential speed between them. The materials will enter the bowl from the feed tube. Under the action of centrifugal force field, the liquid of the high specific weight will accumulate on the inner walls if the bowl, and be discharged through the centripetal pump or overflow plate. The liquids of low specific weight will form an inner liquid ring, stick to the surfaces of heavy liquids, and be discharged from the overflow channel. Under the action of the spiral material pusher, the solids in the materials will be continuously pushed to the taper end of the bowl and discharged from the residue outlet after going trough the drying area.

The two-phase working principle

After entering the cavity of the spiral material pusher through the feed tube, the suspensions will enter the cavity of the bowl through the material vent. The solids after sedimentation will move to the small end of the bowl under the pushing action at the differential speed of the screw, and be finally discharged from the solid discharges port. Under the action of centrifugal force, the liquids will form a hollow liquid ring and move to the large end of the bowl. After running over the adjustable overflow baffle, they will be discharged from the liquid outlet under the action of gravity.
Typical applications
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine
Huading decanter application
1. Water treatment: sludge dewatering, sewage concentration, waste water treatment...
2. Vegetable oil and fats: soybean oil, fish oil, CBD oil...
3. Beverage clarification: fruit juice, soy milk, beer yeast...
4. Fermentation industry: algae concentration, yeast extraction...
5. Pharmaceutical biotechnology: TCM preparation, pharmaceutical intermediates...
6. Plant extraction: tea, loquat leaf...
7. Mineral oil: fuel oil, lubricant, waste oil...
8. Chemical industry: alum, aluminum hydroxide, clay, diatomite...
Detailed Images
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine

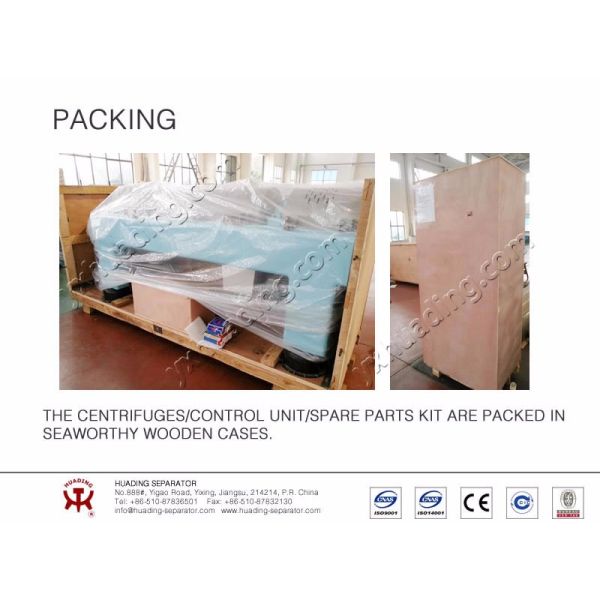

Packing&Shipping
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine
Company Profile
Fish Oil Water Centrifuge Fish Meal Clarification 415V Water Separator Machine
Huading Separator, Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation
technology in China. The company has over 60 years experience in the design and manufacturing of centrifugal separation equipment. Complete systems, customized for specific applications, can be provided in a compact, fully tested, skid-mounted assembly. The company’s equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help customers to clarify, concentrate, and separate products in production. Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering andwastewater treatment etc.
Huading Separator’s organization works closely with customers to help them stay ahead in their business line.

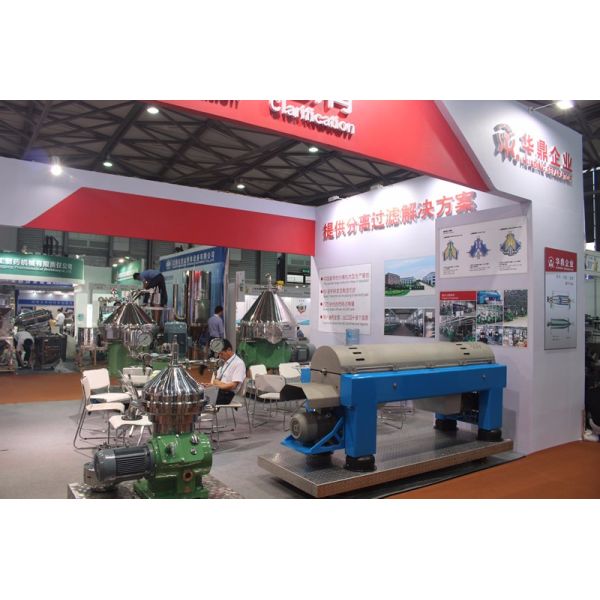

Exhibition
