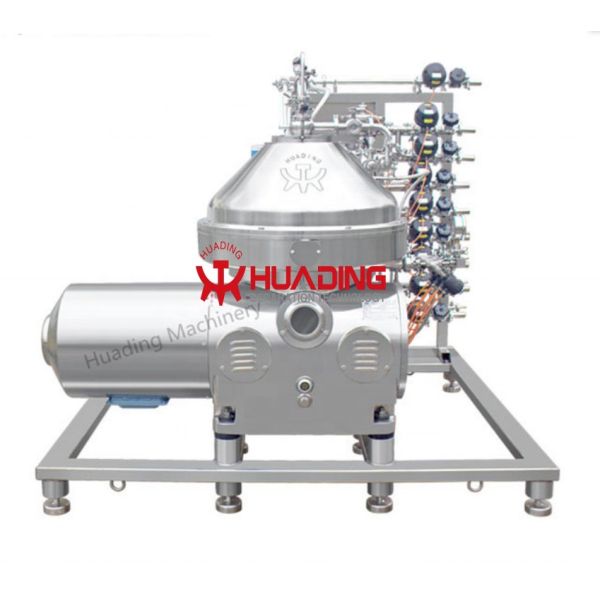

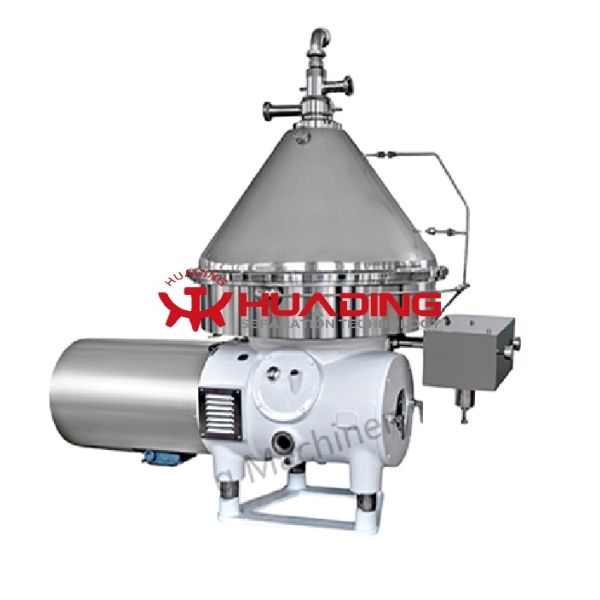

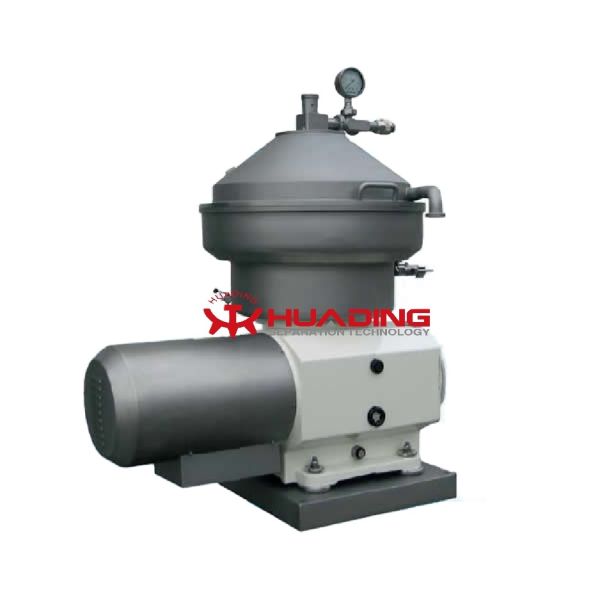

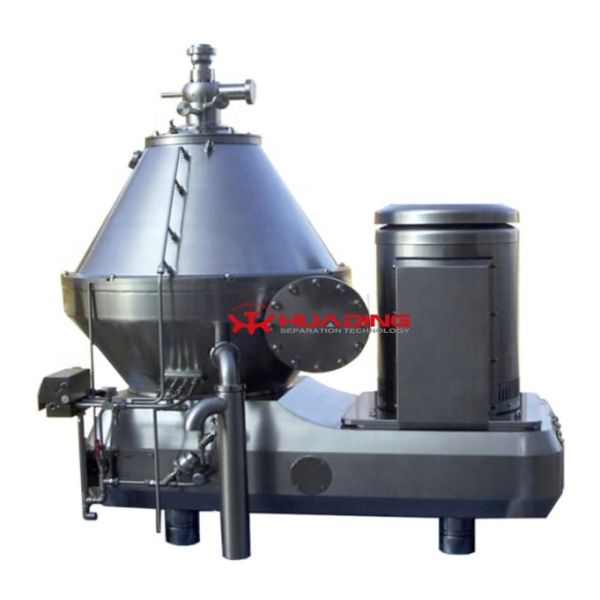

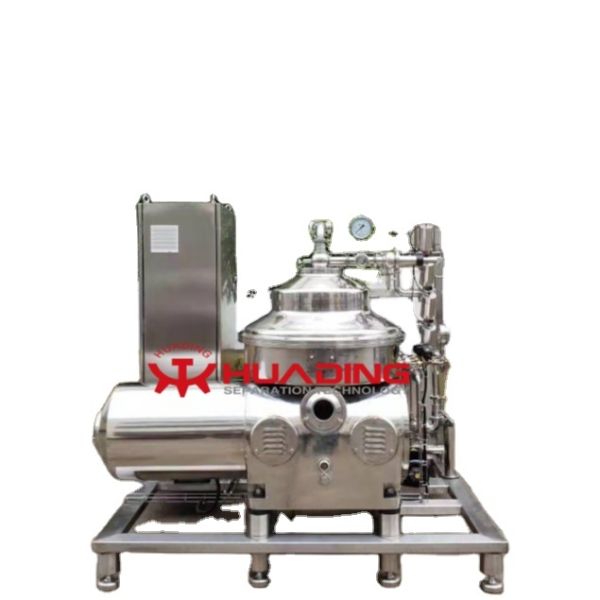

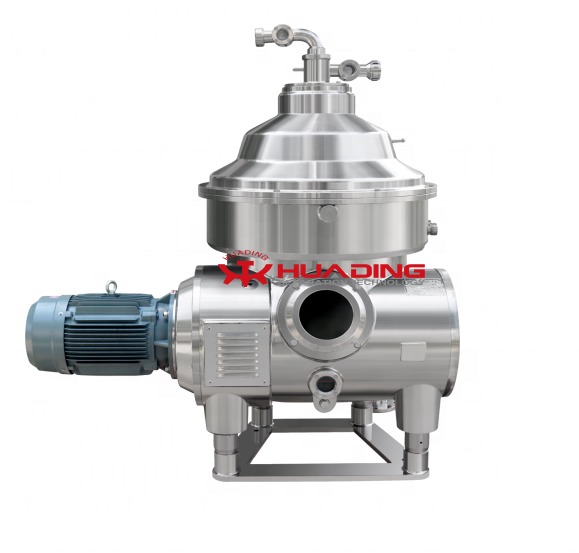

Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Customized Glycerin Centrifuge of CE Standard
Specifications
Place of Origin :
Jiangsu, China
product type :
Other
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
bowl
Brand Name :
HUADING
voltage :
110 - 415V
power(w) :
4 - 90 Kw
dimension(l*w*h) :
2000*1200*1800mm
warranty :
1 Year
key selling points :
/
Capacity :
4000
Weight (KG) :
2500
setting speed :
6000
After-sales Service Provided :
Overseas service center available
Drive :
gear / belt
Bowl speed :
4000 - 10000 rpm
Centrifugal force :
> 10,000 g
Bowl volume :
8 - 300 L
Bowl weight :
50-15000 Kg
Solids holding space :
2 - 50 L
Inlet pressure :
0-0.1 Mpa
Liquid outlet pressure :
0.2-0.6 Mpa
Starting time :
5 - 30 mins
MOQ :
1 set
Price :
$20,000-25,000 / set
Description
Customized Glycerin Centrifuge of CE Standard
As the leading manufacturer of disc separators in China since 1954, Huading Separator specializes in customized centrifuges that meet CE standards for various industrial applications.
Customized Glycerin Centrifuge of CE Standard
Technical Specifications
Specification Details
Drive Gear / Belt
Bowl Speed 4000 - 10000 rpm
Centrifugal Force > 10,000 g
Bowl Volume 8 - 300 L
Bowl Weight 50-15000 Kg
Solids Holding Space 2 - 50 L
Inlet Pressure 0-0.1 Mpa
Liquid Outlet Pressure 0.2-0.6 Mpa
Starting Time 5 - 30 mins
Stopping Time (no brakes) > 40 mins
Company Overview
Huading Separator has over 60 years of tradition in mechanical separating technology. As China's leading manufacturer, our developments serve diverse industries including beverage and dairy processing, oil and fat recovery, chemicals, , biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop and build customized centrifuges and can supply complete process lines as required.
Compliance Standards
  • JB/T 8103 standards - Chinese national standard of disc centrifuge
  • 2006/42/EC (Machinery)
  • 2014/35/EU (Low Voltage)
  • 2014/30/EU (Electromagnetic Compatibility)
  • Quality management system of ISO9001-2000
Centrifugal Separation Technology
Customized Glycerin Centrifuge of CE Standard
The disc stack separator uses extremely high centrifugal forces to separate solids and one or two liquid phases in a single continuous process. Denser solids are forced outward against the rotating bowl wall while less dense liquid phases form concentric inner layers. The interface position between phases can be adjusted for maximum efficiency. Special plates (the "disc stack") provide additional surface settling area, dramatically speeding up separation. This configuration enables continuous separation of various solids from one or two liquids, with solids removal occurring continuously, intermittently, or manually depending on application requirements.
2-Phase Separation Disc Stack Centrifuge
Customized Glycerin Centrifuge of CE Standard
Process Flow:
1. Feed
2. Discharge
3. Inlet tube
4. Disc stack
5. Solids holding space
6. Centripetal pump chamber
7. Centripetal pump

Separation occurs inside a rotating bowl where feed is introduced via a stationary inlet pipe and accelerated in the distributor before entering the disc stack. Liquid-solids separation takes place between discs, with liquid moving through the disc stack to the center and pumped out via a built-in paring disc. Solids collect in the periphery and discharge intermittently through a hydraulic system that opens solids ports at preset intervals.
3-Phase Separation Disc Stack Centrifuge
Customized Glycerin Centrifuge of CE Standard
Process Flow:
1. Inlet tube
2. Central bore
3. Distributor
4. Distributor bore
5. Rising channels
6. Light phase centripetal pump
7. Heavy phase centripetal pump

Suspension enters the separator bowl through a feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center for pumping. Heavy phase is led over a top disc into a chamber for pumping out. Solids collect in the sludge space and discharge intermittently via hydraulic system, then exit through a cyclone.
Self-cleaning disc stack centrifuges are categorized as purifiers (for solids and two liquid phases) or clarifiers (for solids and one liquid phase).
Why Choose Huading Separator
Our Advantages
Huading Separator is a market leader in centrifugal separating technology with over 60 years of experience developing and manufacturing centrifugal separation equipment.
60+ Years
Experience developing and manufacturing disc stack centrifuges
40000+
Installations in more than 50 countries since 1954
100+
Centrifuge models to satisfy diverse customer demands
Global
References from well-known food and pharmaceutical manufacturers
Customized Glycerin Centrifuge of CE Standard
Certifications
Customized Glycerin Centrifuge of CE Standard
All products pass rigorous inspection standards including CE and ISO certifications with 100% quality assurance.
Manufacturing
Customized Glycerin Centrifuge of CE Standard Customized Glycerin Centrifuge of CE Standard Customized Glycerin Centrifuge of CE Standard Customized Glycerin Centrifuge of CE Standard Customized Glycerin Centrifuge of CE Standard Customized Glycerin Centrifuge of CE Standard Customized Glycerin Centrifuge of CE Standard Customized Glycerin Centrifuge of CE Standard
Packaging & Shipping
Package
Standard export carton packing
Delivery Time
30-90 days after confirming order. Detailed delivery date determined according to production season and order quantity.
