Vertical Two Phase Marine Oily Water Fuel Filter Separator
Vertical Two Phase Marine Oily Water Fuel Filter Separator
Vertical Two Phase Marine Oily Water Fuel Filter Separator
Vertical Two Phase Marine Oily Water Fuel Filter Separator
Vertical Two Phase Marine Oily Water Fuel Filter Separator
Vertical Two Phase Marine Oily Water Fuel Filter Separator
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Juneng
Certification :
CE ISO
MOQ :
1
Price :
$30,000-31,000
Voltage :
220V/380V/440V/460V
Power :
15 kw
Dimensions :
1800*1200*1800 mm
Material :
SUS304/SUS316
Capacity :
5000-10000L/H
Function :
Separation
Processing :
Clarifying
Type :
Separating Plant
Weight :
1880 kg
Inlet Pressure :
0.05 Mpa
Outlet Pressure :
0.1-0.25 Mpa
Motor Power :
15 Kw
Max Viscosity :
380cst/50ºC
Core Components :
PLC, Bearing, Motor
Noise Level :
Low
Description

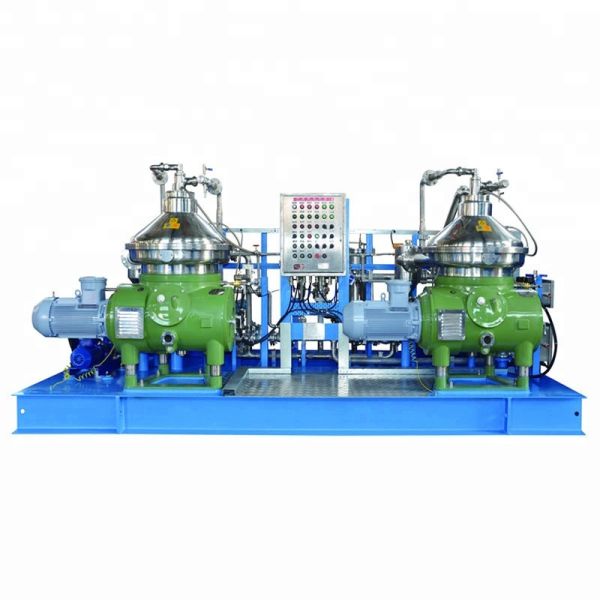

Vertical Two Phase Marine Oily Water Fuel Filter Separator
Product Overview
The Juneng Vertical Two Phase Marine Oily Water Fuel Filter Separator utilizes advanced centrifuge technology for efficient purification of fuel and lubrication oils in marine and land-based applications. This system effectively removes water, sludge, colloids, emulsions, and other impurities while extending equipment lifespan.
Key Applications
  • Fuel treatment and purification
  • Lubrication oil treatment and regeneration
  • Oil, water, and solid substance separation
  • Drilling slurry treatment
  • Crude oil water removal
  • Cooling lubricant treatment
  • Lubricant and hydraulic oil water removal
  • Waste emulsion and waste oil processing
  • Aging oil treatment and restoration
Vertical Two Phase Marine Oily Water Fuel Filter Separator Vertical Two Phase Marine Oily Water Fuel Filter Separator Vertical Two Phase Marine Oily Water Fuel Filter Separator
Technical Specifications
Model Treatment Capacity (L/H) Inlet Pressure (MPa) Outlet Pressure (MPa) Motor Power (kW) Weight (Kg) Outline Dimension (mm)
DHKY360 1000-5000 0.05 0.1-0.25 7.5 1280 1500×1150×1500
DHKY470 3000-10000 0.05 0.1-0.25 15 1880 1800×1200×1800
DHKY550 5000-20000 0.05 0.1-0.25 22 2200 1850×1550×2050
Key Components
Disc: Juneng brand, manufactured in China using domestic famous engines
Shaft: Juneng brand, manufactured in China using domestic famous engines
Drum: Juneng brand, manufactured in China using domestic famous engines
Engine Base: Juneng brand, manufactured in China using domestic famous engines
Vertical Two Phase Marine Oily Water Fuel Filter Separator Vertical Two Phase Marine Oily Water Fuel Filter Separator Vertical Two Phase Marine Oily Water Fuel Filter Separator
Quality Certifications
Vertical Two Phase Marine Oily Water Fuel Filter Separator
Service & Support
Pre-Sales Service:
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing and inspection
After-Sales Service:
  • Machine installation training
  • Operation and maintenance training
  • Overseas engineering service support
Vertical Two Phase Marine Oily Water Fuel Filter Separator Vertical Two Phase Marine Oily Water Fuel Filter Separator
Packaging & Delivery
Package Size: 123 (L) × 456 (W) × 789 (D)
Weight: 1.2 Tons
Standard packaging includes wooden boxes (Size: L×W×H). For European exports, wooden boxes are fumigated. For tight container spaces, PE film packaging or custom packaging according to customer requirements is available.
