Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Juneng
Certification :
CE,ISO,BV
MOQ :
1
Price :
$107,790.23-108,758.82
Voltage :
220V/380V/460V
Power :
Depend on the model
Capacity :
6000-15000 L/H
Weight :
2880 KG
Setting Speed :
6000 RPM
Material :
Food Grade Stainless Steel
Control System :
PLC
Inlet Pressure :
0.05-0.1 Mpa
Outlet Pressure :
0.1-0.3 Mpa
Motor Power :
7.5-30 Kw
Outline Dimension :
1500*1150*1500 to 2100*1650*2300 mm
Core Components :
PLC, Motor
Processing Types :
Edible Oil
Rotation Speed :
High
Noise Level :
Lower
Description
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Product Overview

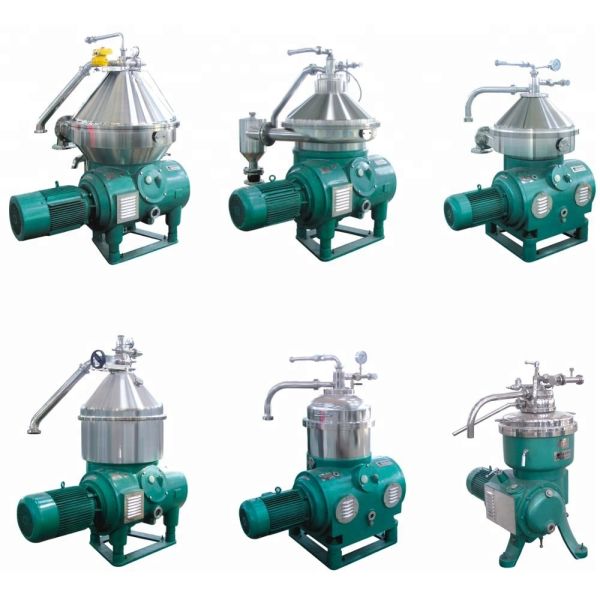

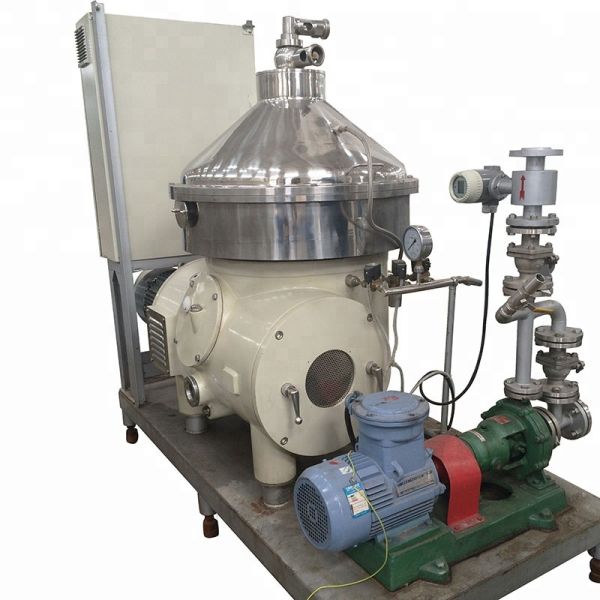

The DHZ series automatic discharging separator is specialized equipment for oil and fat refining, featuring high rotating speed, operational stability, completely sealed inlet and outlet systems, low noise, and excellent separation efficiency.

Applications

Juneng Separator is suitable for various oils and fats and provides personalized solutions to achieve optimal oil quality and maximize production capacity. DHZ series disc centrifuges for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils.

Technical Specifications
Model Treatment Capacity (L/H) Inlet Pressure (Mpa) Outlet Pressure (Mpa) Motor Power (Kw) Weight (Kg) Outline Dimension (mm)
DHZ360 1200-2500 0.05 0.1-0.25 7.5 1280 1500*1150*1500
DHZ470 2500-7000 0.05 0.1-0.25 15 1880 1800*1200*1800
DHZ550A 5000-10000 0.05 0.1-0.25 18.5 2200 1850*1550*2050
DHZ550E 6000-15000 0.05 0.1-0.25 22 2200 1850*1550*2050
DHZ700 15000-30000 0.1 0.2 30 3300 2100*1650*2300
DRZ360 1200-2500 0.05 0.1-0.25 5.5 750 1250*1050*1500
DRZ400A 2000-6000 0.05 0.1-0.3 7.5 1150 1300*900*1450
DRZ400E 4000-7500 0.05 0.1-0.3 7.5 1300 1300*900*1500
DRZ550 6000-18000 0.05 0.1-0.3 22 2200 1620*1300*2200
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Key Features
  • Higher Production Capacity: Continuous feeding, high separation factor, automatic residue discharging
  • Lower Maintenance Costs: Concise bowl design without frequent washing, hydraulic coupling driving with longer service life
  • No Manual Monitoring Required: PLC automatic control system
Certifications
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Detailed Components
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Machine Parts

Name: Separator disc

Brand: Juneng

Origin: China

Domestic famous engines

Main Components

Name: Separator shaft

Brand: Juneng

Origin: China

Vertical shaft, cross shaft configurations

Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Additional Components

Name: Separator drum

Brand: Juneng

Origin: China

Domestic famous engines

Customer Support Services
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
After-Sales Services
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Packaging & Delivery
Automatic Discharge Disk Drum Liquid Solid Separator for Oil Refinery

Packaging Size: 123 (L) * 456 (W) * 789 (D)

Weight: 1.2 T

Packaging Details: The normal package is wooden box (Size: L*W*H). If exporting to European countries, the wooden box will be fumigated. If container space is limited, we use PE film for packing or accommodate special customer requests.
