Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Juneng
MOQ :
1
Price :
$26,987-30,000
Voltage :
220V/380V/400V/440V/460V
Power :
15000 W
Dimension :
1800*1200*2030 mm
Weight :
1880 KG
Setting speed :
6600
Material :
304/316L Stainless Steel
Motor Power :
15 kw
Discharge type :
PLC control automatic discharge
Bearing :
SKF Bearing
Capacity :
5000-7000, 3000-7000 LPH
Core components :
PLC, Bearing, Motor
Centrifugal type :
High speed separation
Inlet Pressure :
0.05 Mpa
Outlet Pressure :
0.1-0.35 Mpa
Separation Factor :
High
Description
DHN Disc Fat Milk Centrifuge Separator
The DHN Disc Fat Milk Centrifuge Separator is engineered for the dairy processing industry, designed to continuously separate cream and defatted milk from pure milk while removing impurities and sediments. This advanced system also enables milk standardization based on fat content requirements.
Advanced Separation Technology
Juneng's centrifugal separator features specially designed centripetal pumps and inlet/outlet ports that create a gentle separation environment. This preserves active ingredients in the material, maintaining nutritional value, freshness, and original flavor. The separator effectively removes solid particles as small as 1mm dispersed in suspensions from the liquid phase.
DHN Disc Fat Milk Centrifuge Separator
DHN Model Specifications for Dairy Clarification
ModelCapacity (L/H)Inlet PressureOutlet PressureWeightDimension (mm)
DHN3602000-50000.05 Mpa0.1-0.35 Mpa1200 kg1530×1150×1500
DHN4705000-100000.05 Mpa0.1-0.4 Mpa1600 kg1800×1200×1750
DHN55010000-200000.05 Mpa0.1-0.4 Mpa2300 kg1950×1550×1960
DHN61625000-350000.1 Mpa0.3 Mpa3000 kg2185×1728×2082

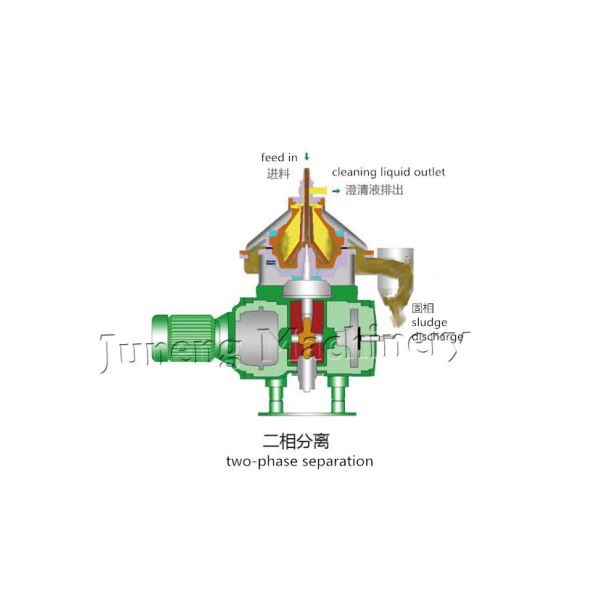

Dairy Clarification Working Principle
Clarification involves two-phase separation, removing suspended solids from liquids or separating two immiscible liquids with different specific gravities. Materials enter the bowl's core section where strong centrifugal force removes impurities from raw material, producing clean milk.
DHN Disc Fat Milk Centrifuge Separator
DHNZ Model Specifications for Dairy Skimming
ModelCapacity (L/H)Inlet PressureOutlet PressureWeightDimension
DHNZ204500-10000.05 Mpa0.1-0.2 Mpa520 kg810×850×1350
DHNZ3601000-30000.05 Mpa0.1-0.2 Mpa1200 kg1530×1150×1500
DHNZ4703000-70000.05 Mpa0.1-0.2 Mpa1600 kg1800×1200×2030
DHNZ5505000-100000.05 Mpa0.1-0.2 Mpa2300 kg1950×1550×1960

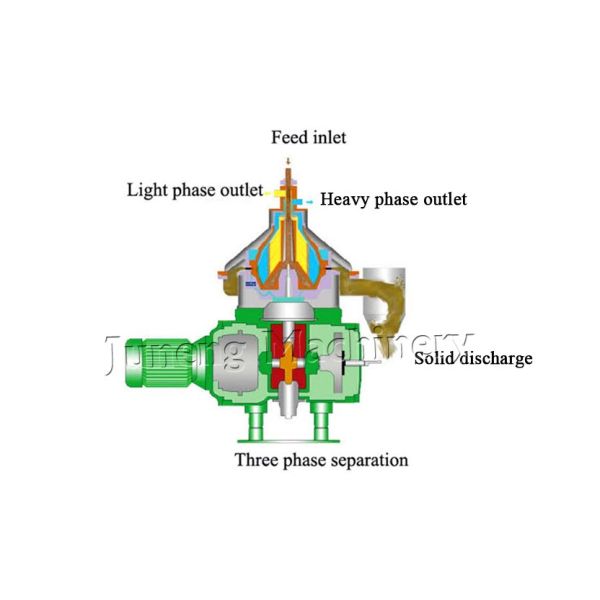

Dairy Skimming Working Principle
Dairy skimming performs three-phase separation, simultaneously separating two immiscible liquid phases and a solid phase.
DHN Disc Fat Milk Centrifuge Separator
Key Advantages
  • Continuous feeding operation
  • High separation factor efficiency
  • Automatic residue discharging system
  • Hydraulic coupling driving for extended service life
  • PLC system automatic control
Applications
  • Hot and cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
DHN Disc Fat Milk Centrifuge SeparatorDHN Disc Fat Milk Centrifuge Separator
